Brake Pedal Assy: Service and Repair

Brake Pedal Replacement

1. Remove the driver's dashboard undercover Driver's Dashboard Undercover Removal/Installation.

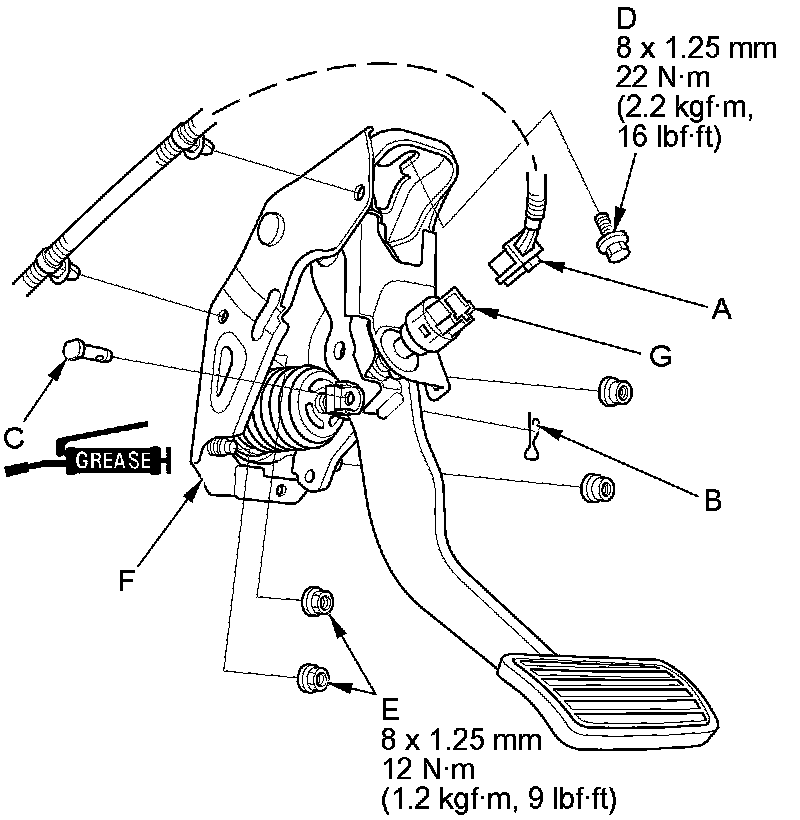

2. Disconnect the brake pedal position switch connector (A).





3. Remove the lock pin (B) and clevis pin (C).

4. Remove the brake pedal bracket mounting bolt (D) and the nuts (E).

5. Remove the brake pedal with bracket (F).

6. Remove the brake pedal position switch (G) by turning it counterclockwise.

7. Install the brake pedal in the reverse order of removal.

8. Adjust the brake pedal and brake pedal position switch Adjustments.
