Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

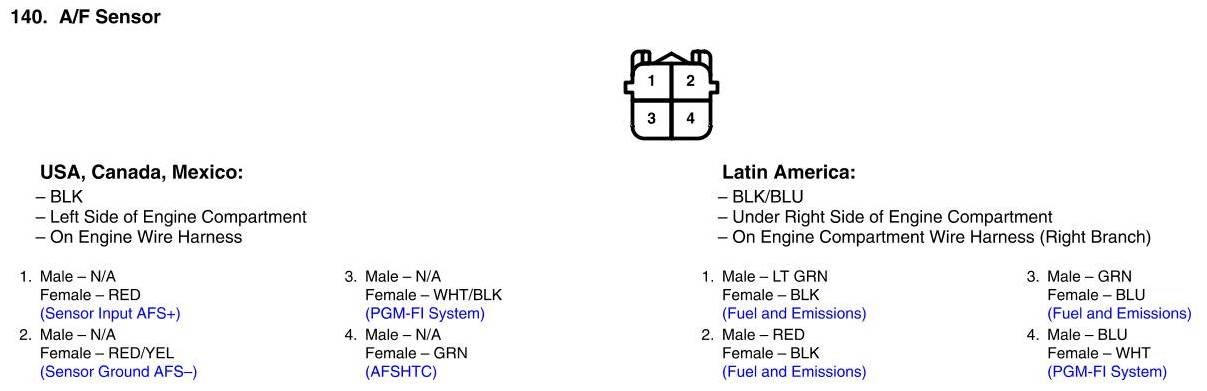

View 140 - A/F Sensor Connector View
View 140 - A/F Sensor Connector View
