Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

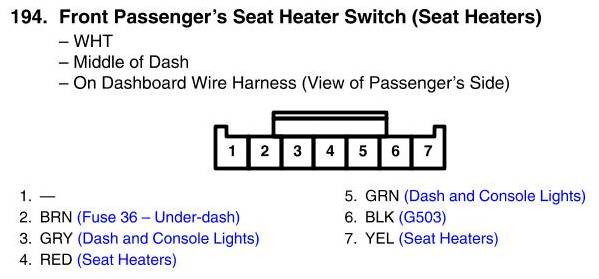

View 194 - Front Passenger's Seat Heater Switch Connector View (Seat Heaters)
View 194 - Front Passenger's Seat Heater Switch Connector View (Seat Heaters)
