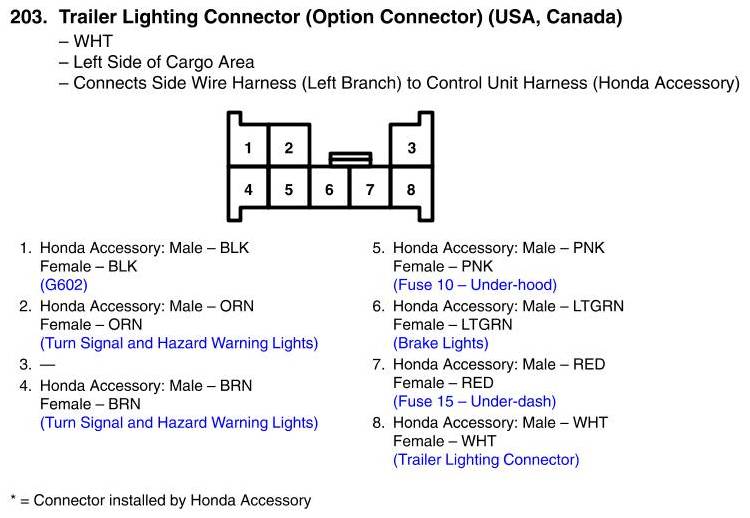

View 203 - Trailer Lighting Connector (Option Connector) Connector View (USA, Canada)
View 203 - Trailer Lighting Connector (Option Connector) Connector View (USA, Canada)
