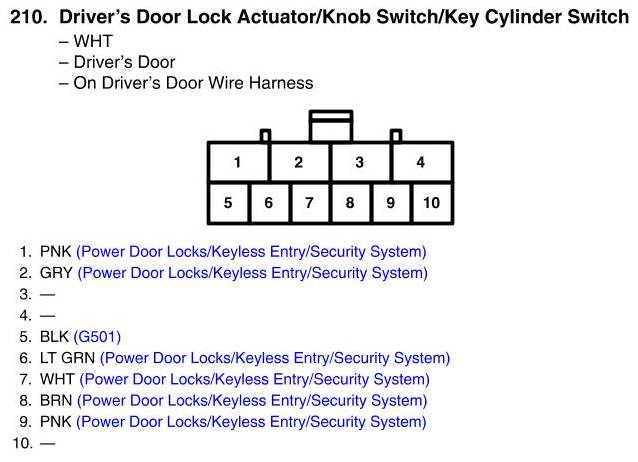

View 210 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
View 210 - Driver's Door Lock Actuator/Knob Switch/Key Cylinder Switch Connector View
