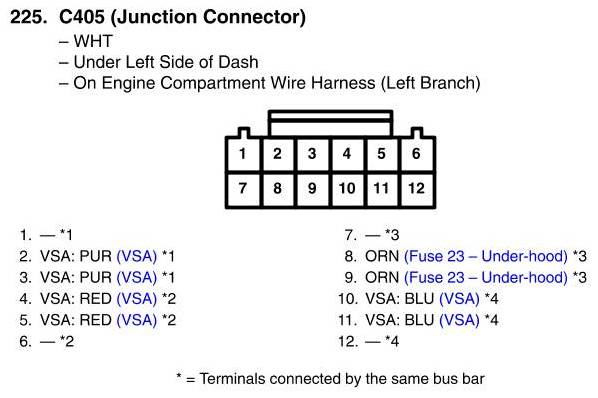

View 225 - C405 (Junction Connector) Connector View
View 225 - C405 (Junction Connector) Connector View
