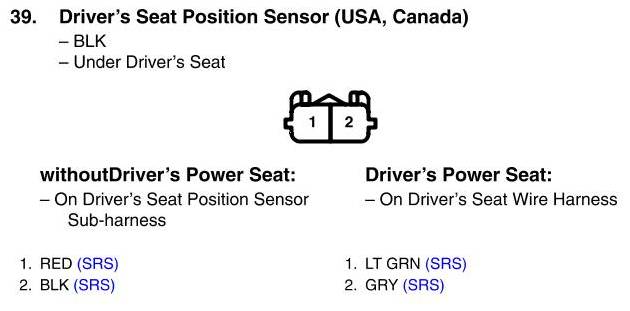

View 39 - Driver's Seat Position Sensor Connector View (USA, Canada)
View 39 - Driver's Seat Position Sensor Connector View (USA, Canada)
