Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>

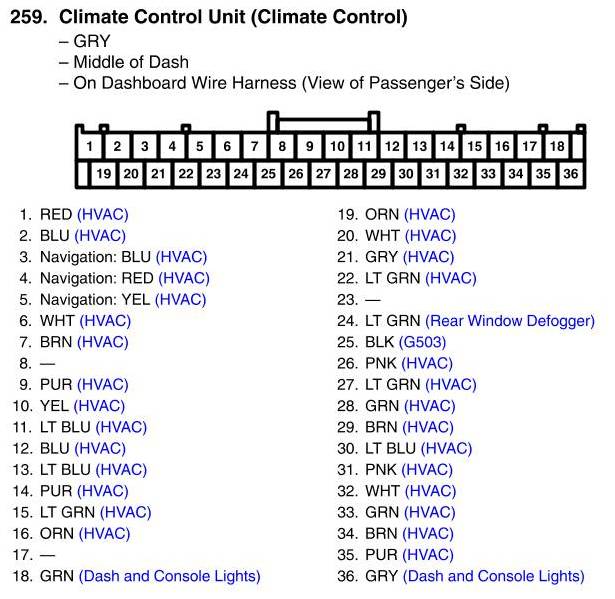

Climate Control Unit Connector View (Climate Control)
Climate Control Unit Connector View (Climate Control)
