Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Headlamp
>>

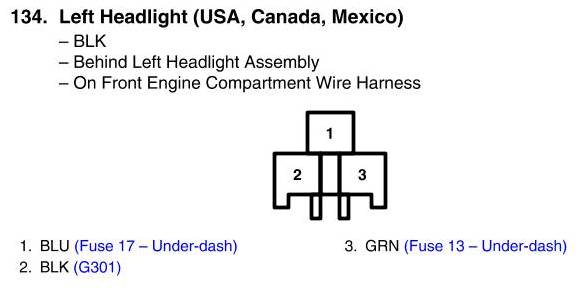

Left Headlight Connector View (USA, Canada, Mexico)
Left Headlight Connector View (USA, Canada, Mexico)
