Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Tensioner
>>

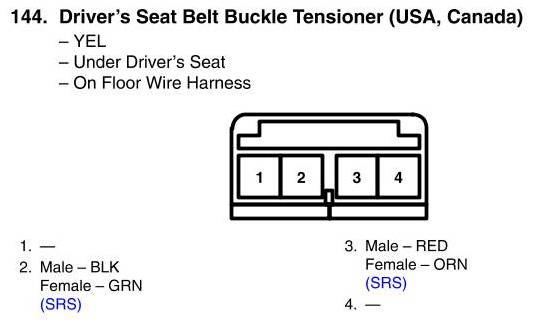

Driver's Seat Belt Buckle Tensioner Connector View (USA, Canada)
Driver's Seat Belt Buckle Tensioner Connector View (USA, Canada)
