Home >> Honda Truck >> 2010 >> CR-V 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Front Passenger's Seat Sub-harness and Front Passenger's Seat Heater Sub-harness Connector and Harness Locations (Seat Heaters)

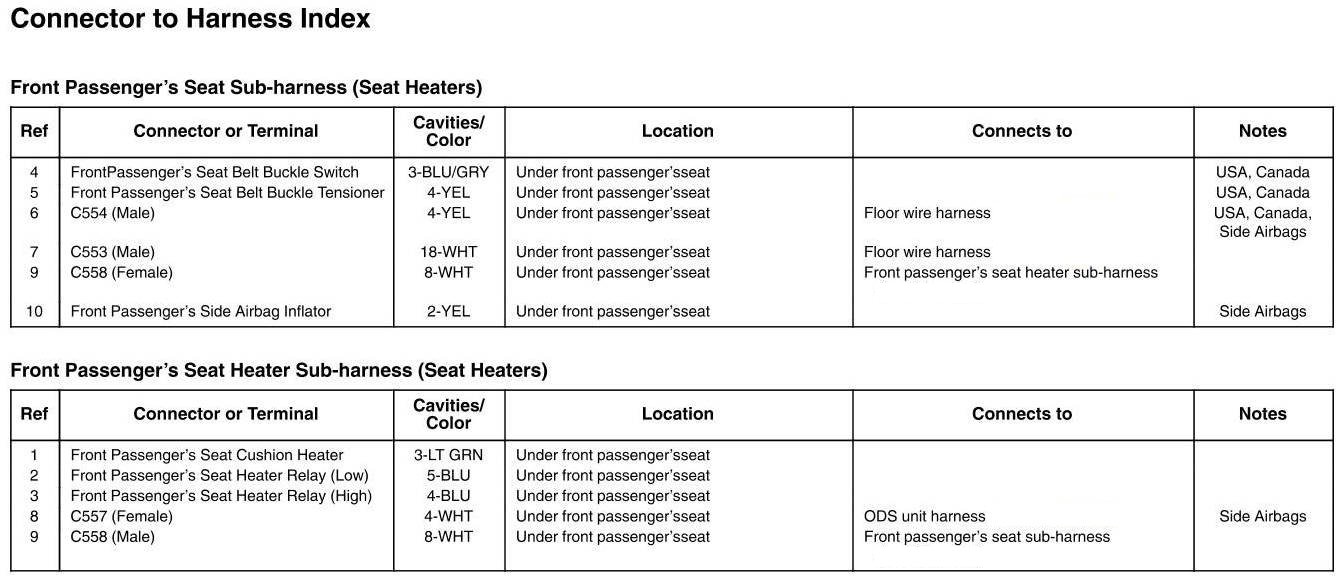

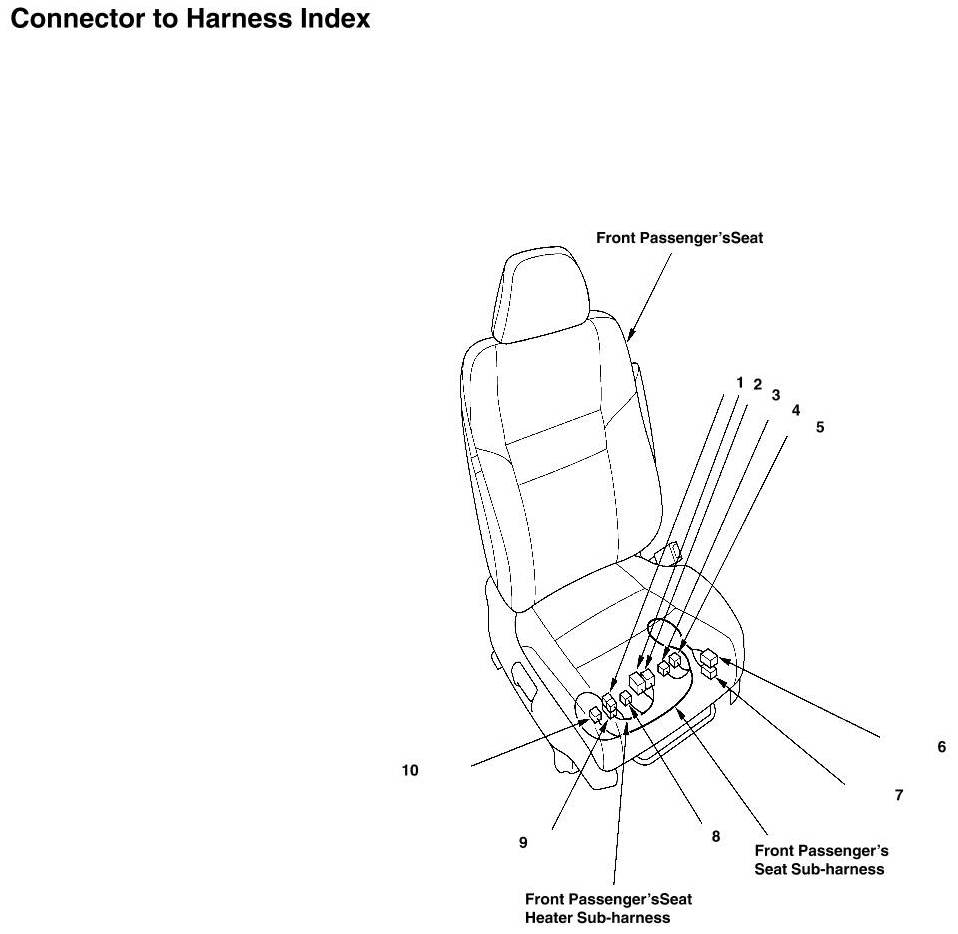

Front Passenger's Seat Sub-harness and Front Passenger's Seat Heater Sub-harness Connector and Harness Locations (Seat Heaters)
