Harmonic Balancer - Crankshaft Pulley: Service and Repair

Crankshaft Pulley Removal and Installation

Special Tools Required

- Holder Handle 07JAB-001020B
- Crankshaft Pulley Holder 07AAB-RJAA100
- Socket, 19 mm 07JAA-001020A or equivalent

Removal

1. Raise the vehicle on the lift, and remove the front wheels.

2. Remove the splash shield Front Splash Shield Replacement.

3. Remove the drive belt Service and Repair.

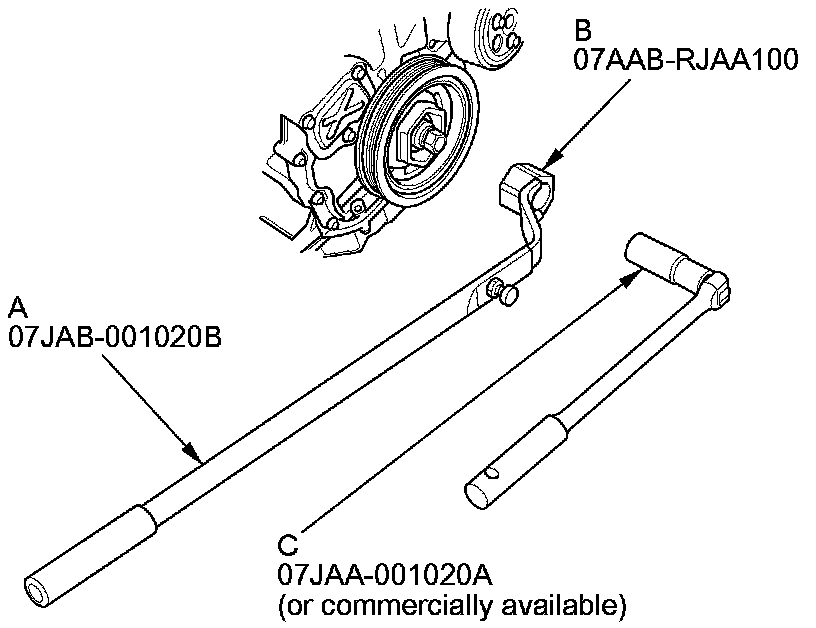

4. Hold the pulley with the holder handle (A) and the crankshaft pulley holder (B).





5. Remove the bolt with a socket, 19 mm (C) and a breaker bar, then remove the crankshaft pulley.

Installation

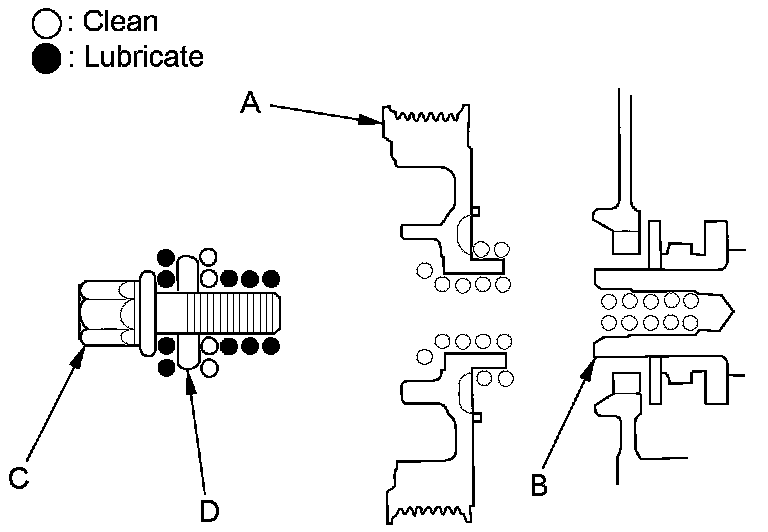

1. Clean the crankshaft pulley (A), the crankshaft (B), the bolt (C), and the washer (D). Lubricate with new engine oil as shown.

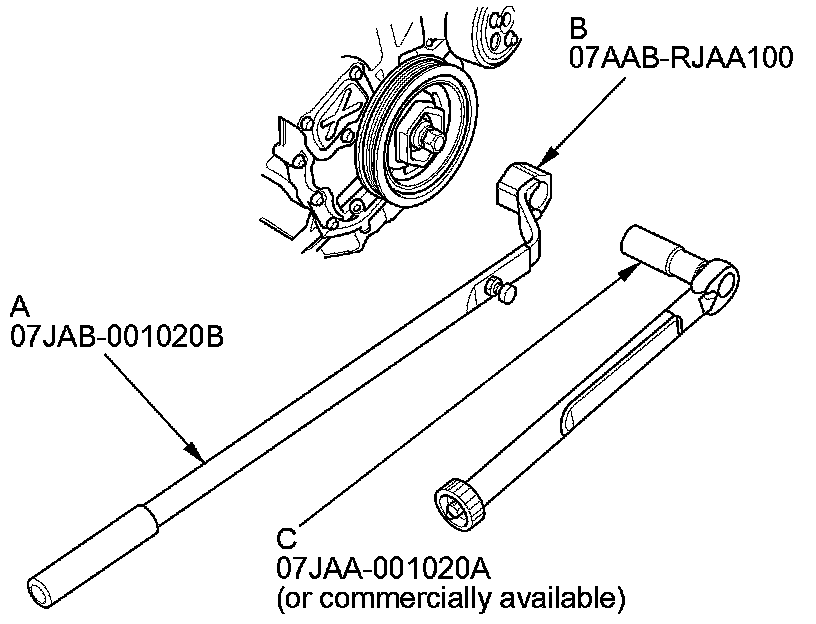

2. Install the crankshaft pulley, and hold the pulley with the holder handle (A) and the crankshaft pulley holder (B).





3. Tighten the bolt to 49 Nm (5.0 kg-m, 36 lb-ft) with a torque wrench and socket, 19 mm (C). Do not use an impact wrench. If the pulley bolt or crankshaft are new, tighten the bolt to 177 Nm (18.0 kg-m, 130 lb-ft), then remove the bolt and tighten it to 49 Nm (5.0 kg-m, 36 lb-ft).

4. Tighten the pulley bolt an additional 90 °.

5. Install the drive belt Service and Repair.

6. Install the splash shield Front Splash Shield Replacement.

7. Install the front wheels.
