Engine Block Sealing Bolt Installation




Engine Block Sealing Bolt Installation

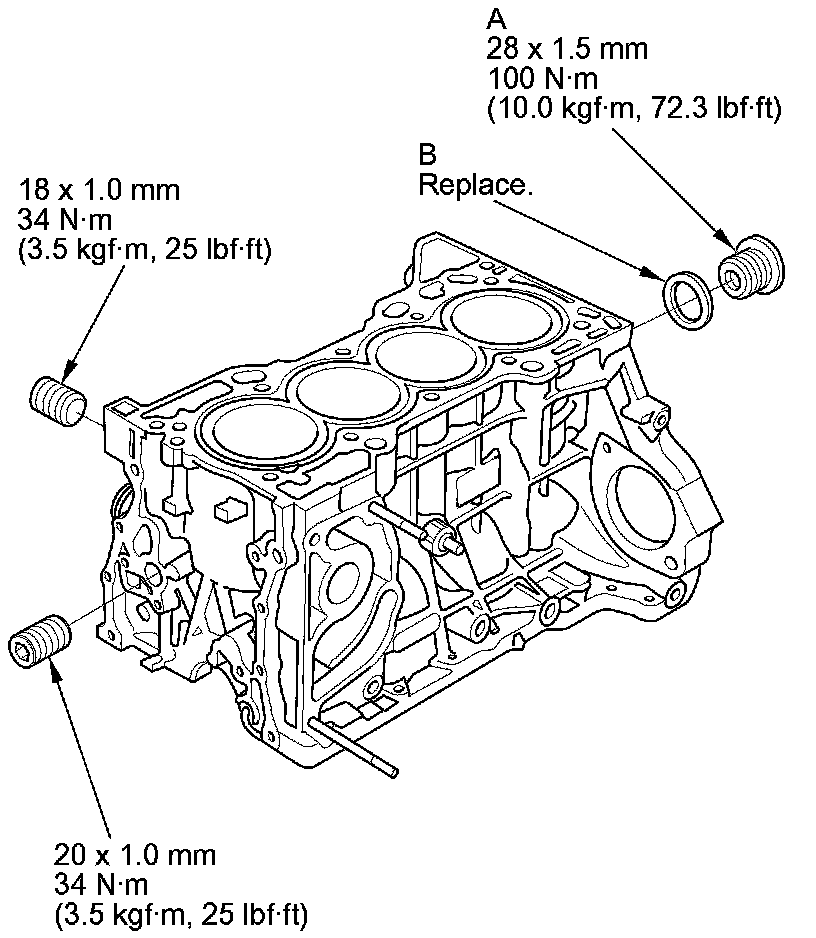

NOTE: When installing the sealing bolt (A), always use a new washer (B).
