Engine Assembly Upper Torque Rod Replacement




Engine Assembly Upper Torque Rod Replacement

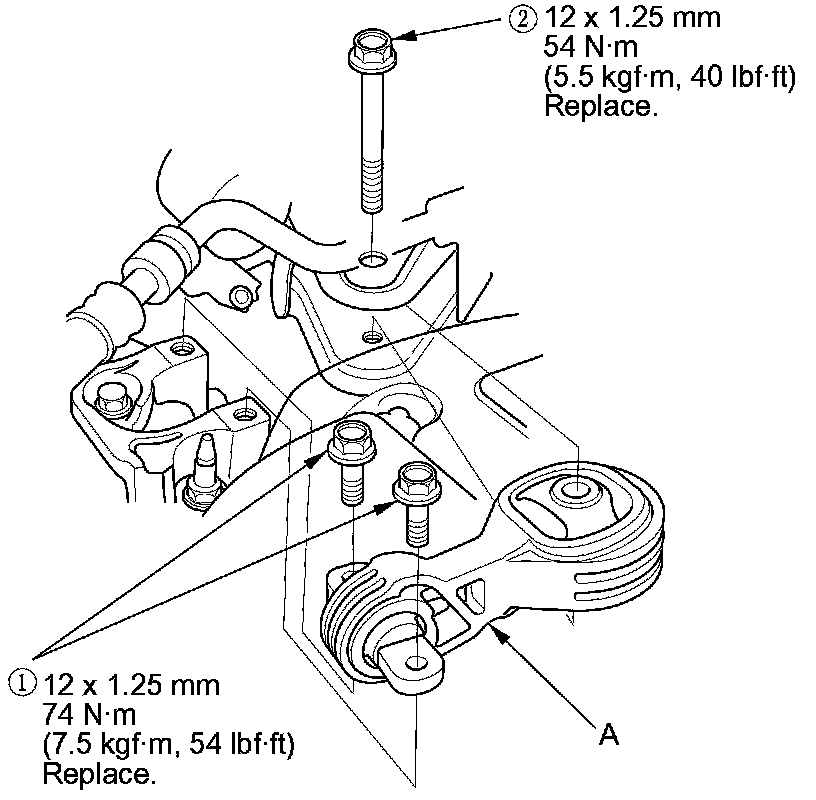

1. Remove the upper torque rod (A).





2. Install the upper torque rod, then tighten the new bolts in the numbered sequence shown.
