Front Crankshaft Seal: Service and Repair

Cam Chain Case Oil Seal Installation

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 52 x 55 mm 07746-0010400

1. Apply a light coat of new engine oil around the crankshaft.

2. Apply a light coat of new engine oil to the lip of the chain case oil seal.

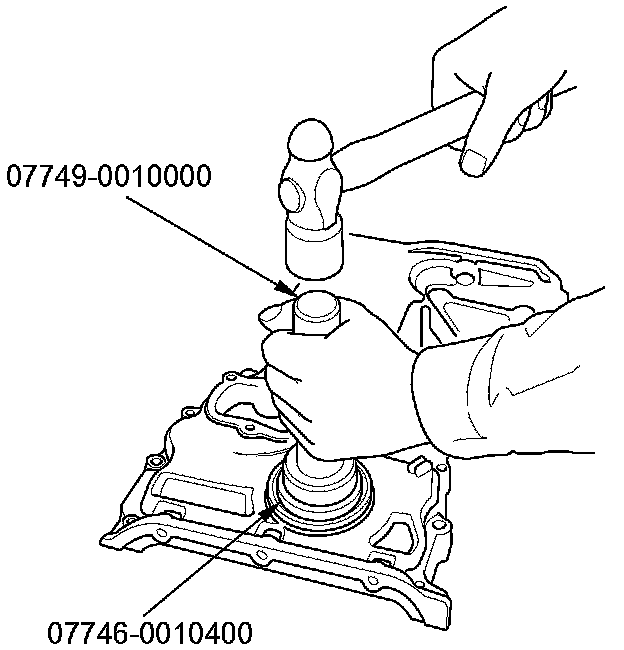

3. Use the handle driver and attachment, 52 x 55 mm to drive a new oil seal squarely into the chain case to the specified installed height.

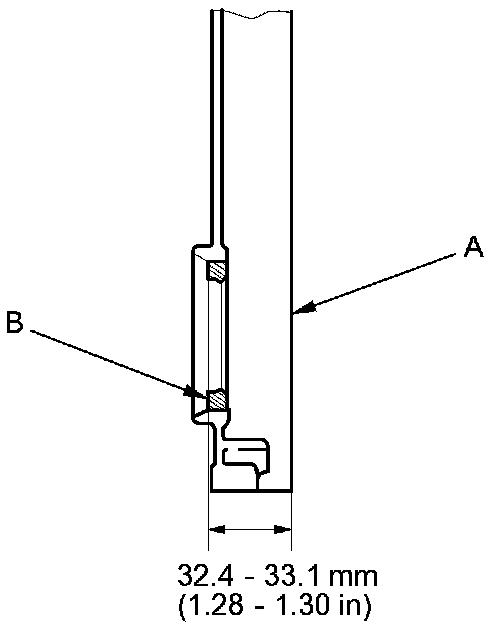

4. Measure the distance between the chain case surface (A) and the oil seal (B).
