Gauge Control Module Replacement

Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module" Programming and Relearning.

1. Remove the instrument panel Instrument Panel Removal/Installation.

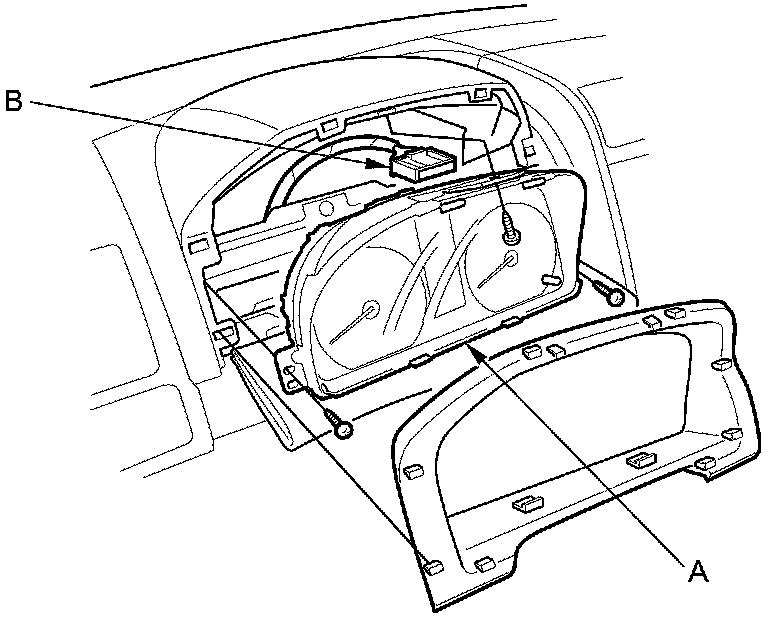

2. Remove the three screws from the gauge control module (A).





3. Disconnect the 36P connector (B) from the gauge control module.

4. Install the gauge in the reverse order of removal.

NOTE: Check the official Honda website for more information on how to write odometer information to a gauge control module that will not communicate with HDS.
