Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Diagrams
>>
Connector Views
>>

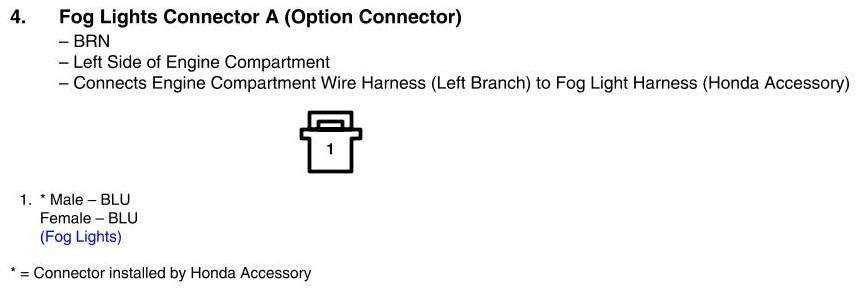

Fog Lights Connector A (Option Connector) Connector View
Fog Lights Connector A (Option Connector) Connector View
