License Plate Lamp: Service and Repair

License Plate Light Replacement

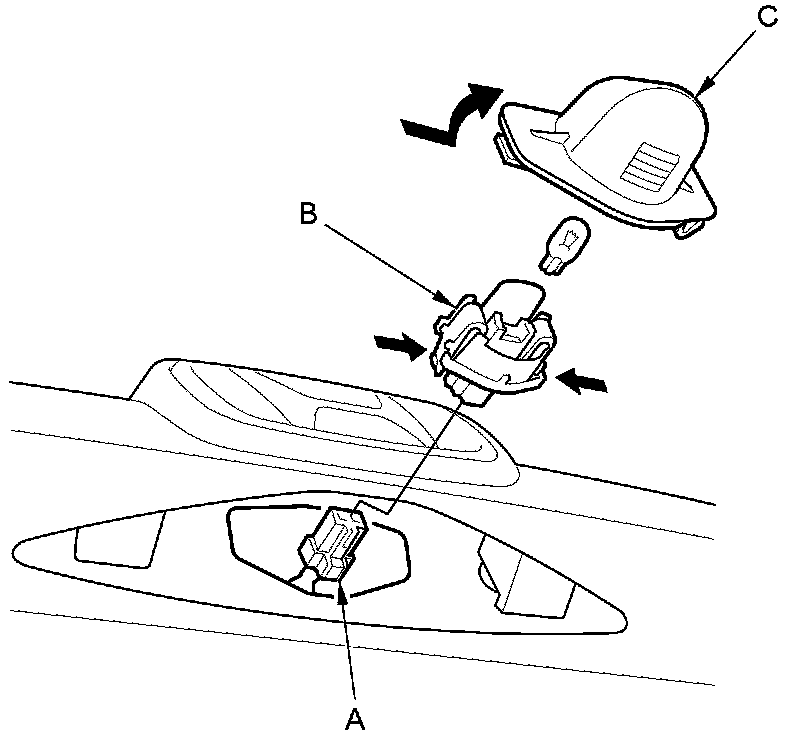

1. Open the tailgate and remove the tailgate lower trim .

2. Disconnect the 2P connector (A) from the license plate light.









3. Release the bulb socket (B) from the lens (C) by pressing on the tabs.

4. Remove the lens from the tailgate by pressing on the tabs.

5. Install the light in the reverse order of removal.
