Vanity Mirror Light Test/Replacement

Vanity Mirror Light Test/Replacement

1. Open the sunvisor.

2. Remove the sunvisor Service and Repair.

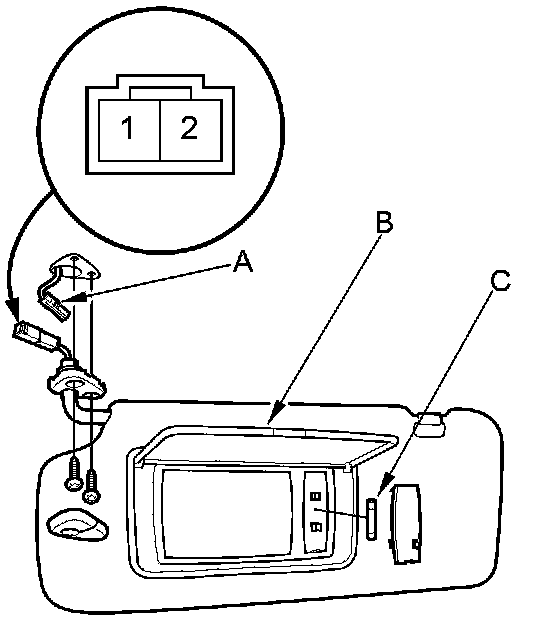

3. Disconnect the 2P connector (A) from the vanity mirror light.










4. Check for continuity between terminals No. 1 and No. 2.

- With the vanity mirror cover (B) open, there should be continuity.
- With the vanity mirror cover closed, there should be no continuity.

5. If the continuity is not as specified, replace the bulbs (C) or the sunvisor.
