Dashboard Wire Harness




Connector and Harness Locations

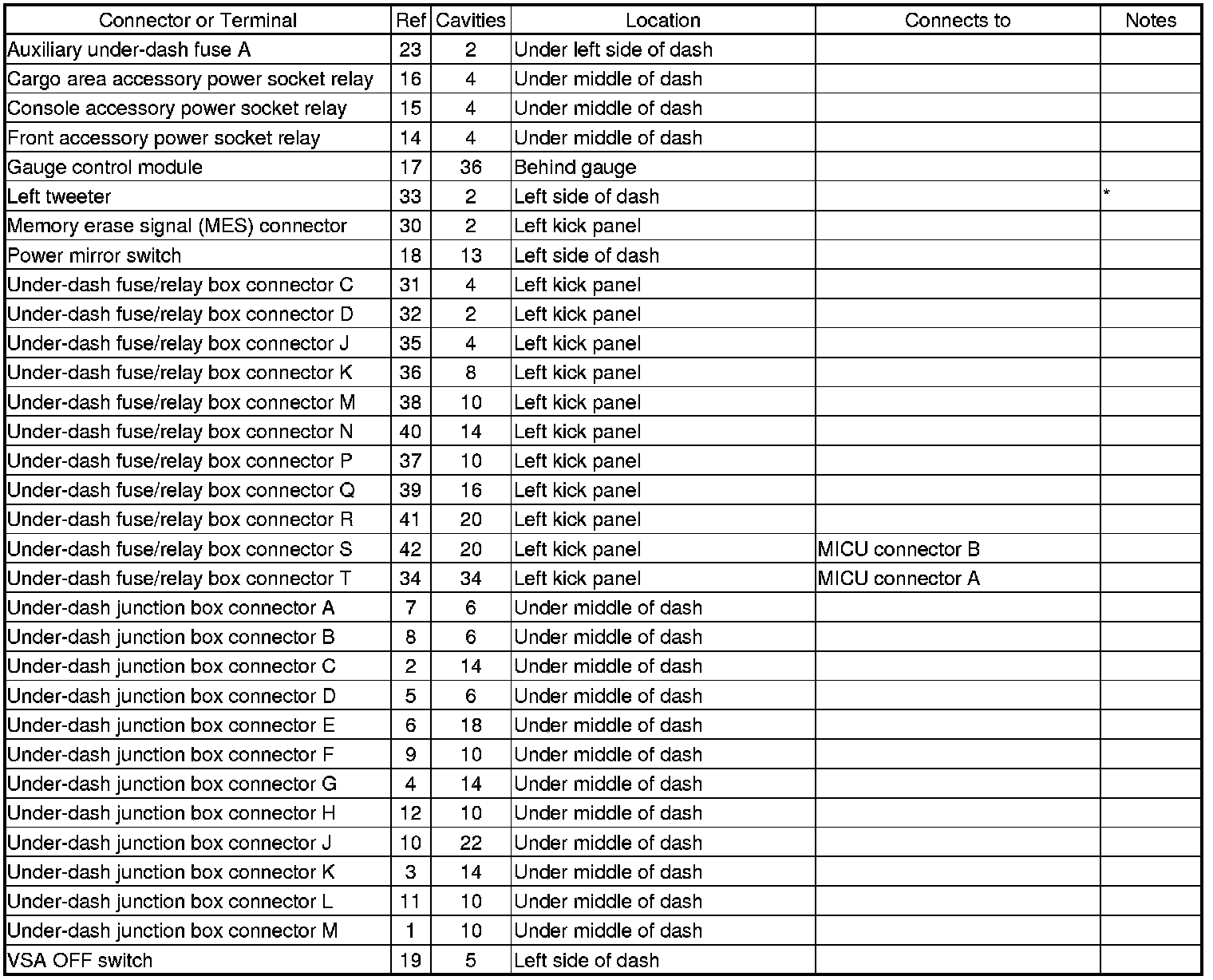

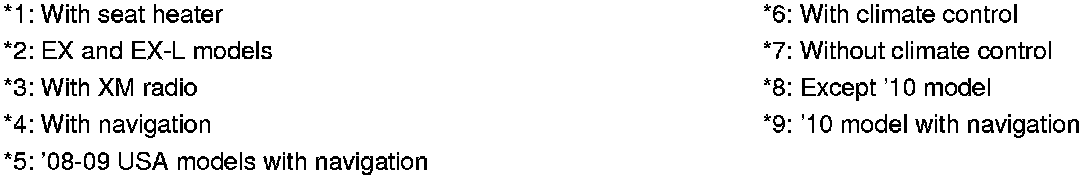

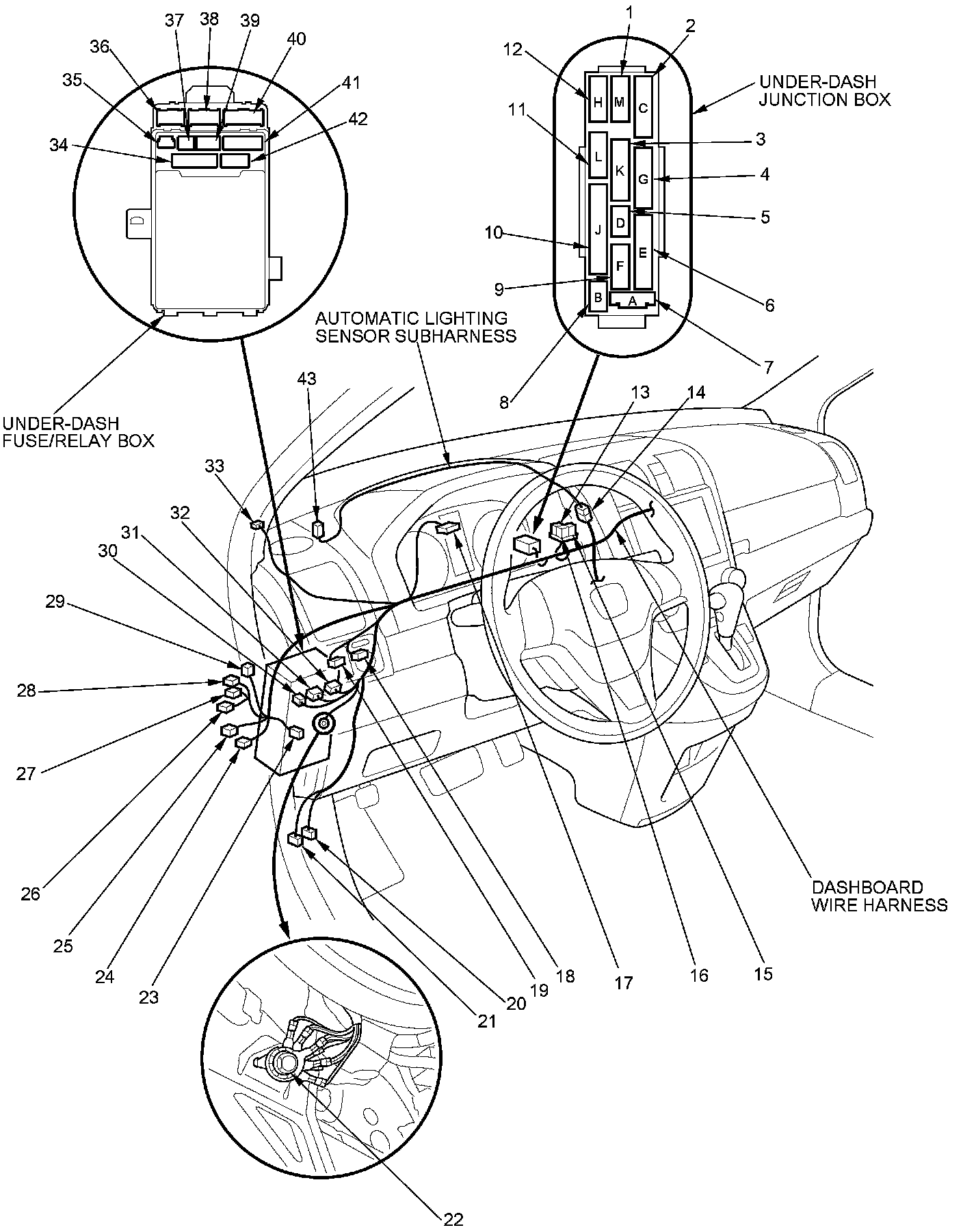

Dashboard Wire Harness (View of driver's side)

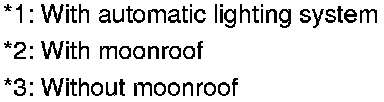

Dashboard Wire Harness (View of driver's side) (cont'd)

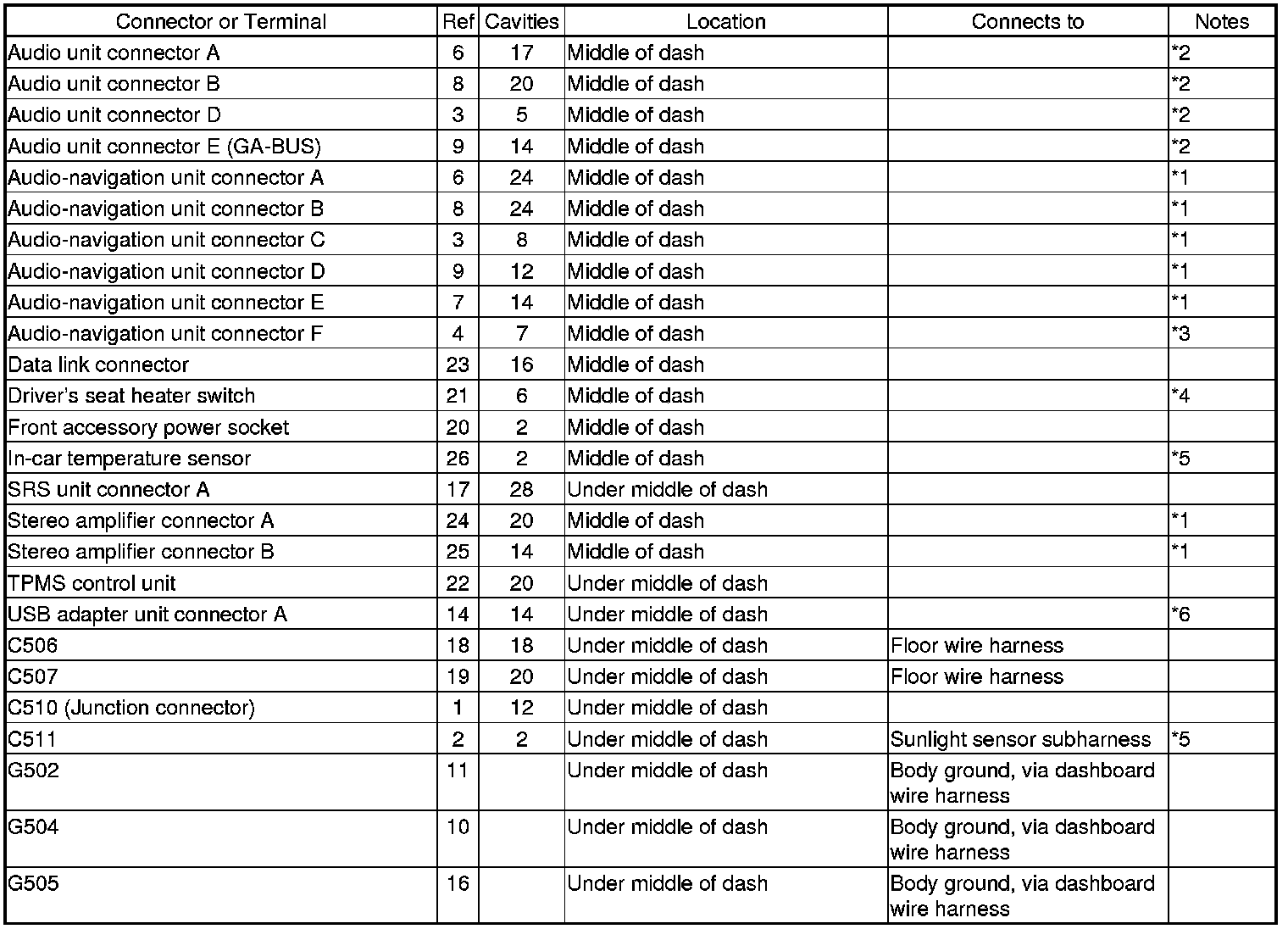

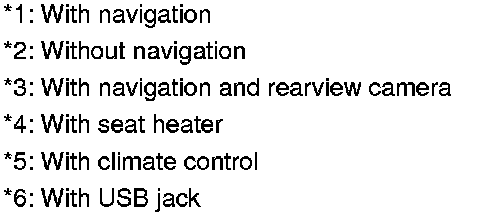

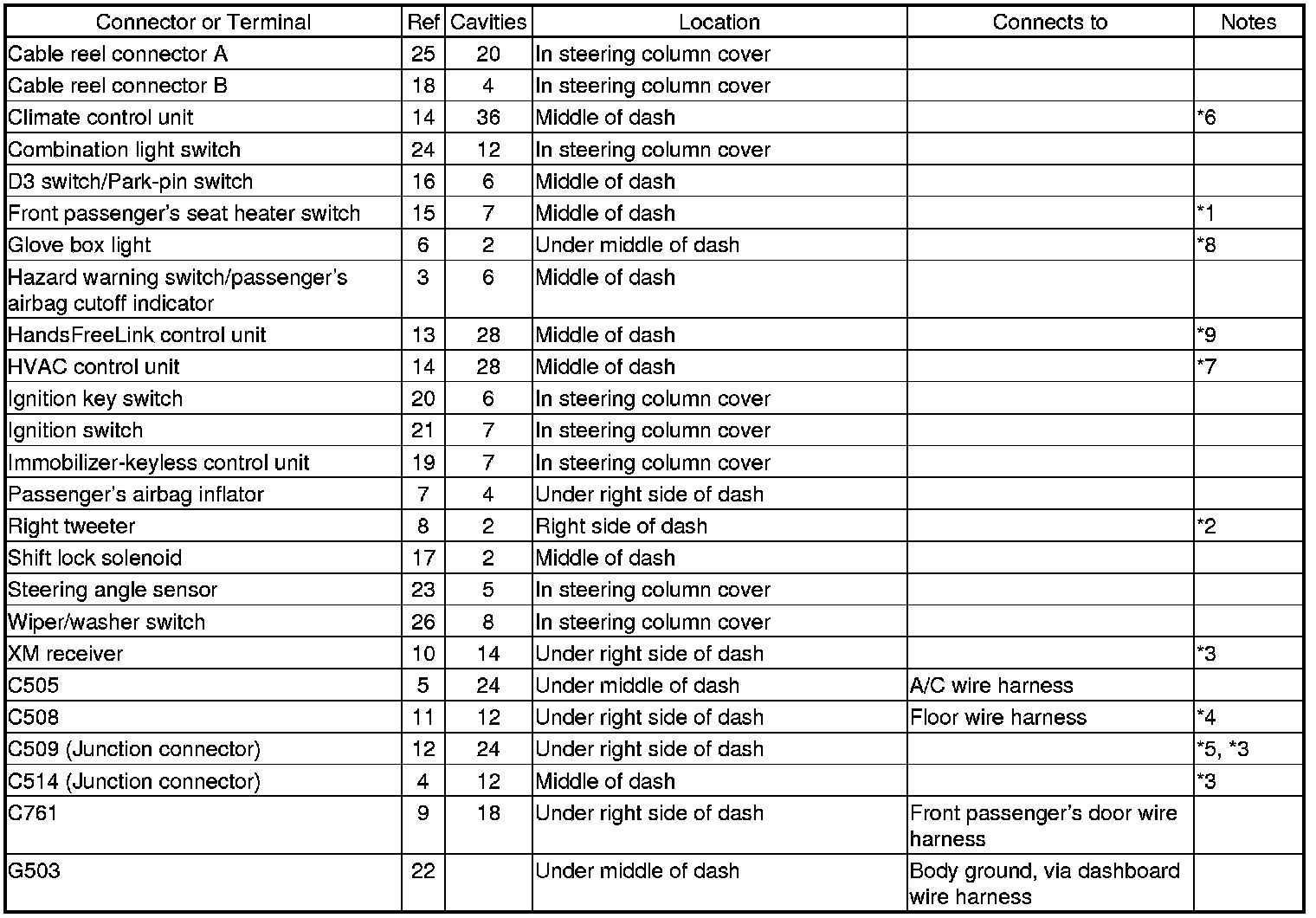

Dashboard Wire Harness (View of middle)

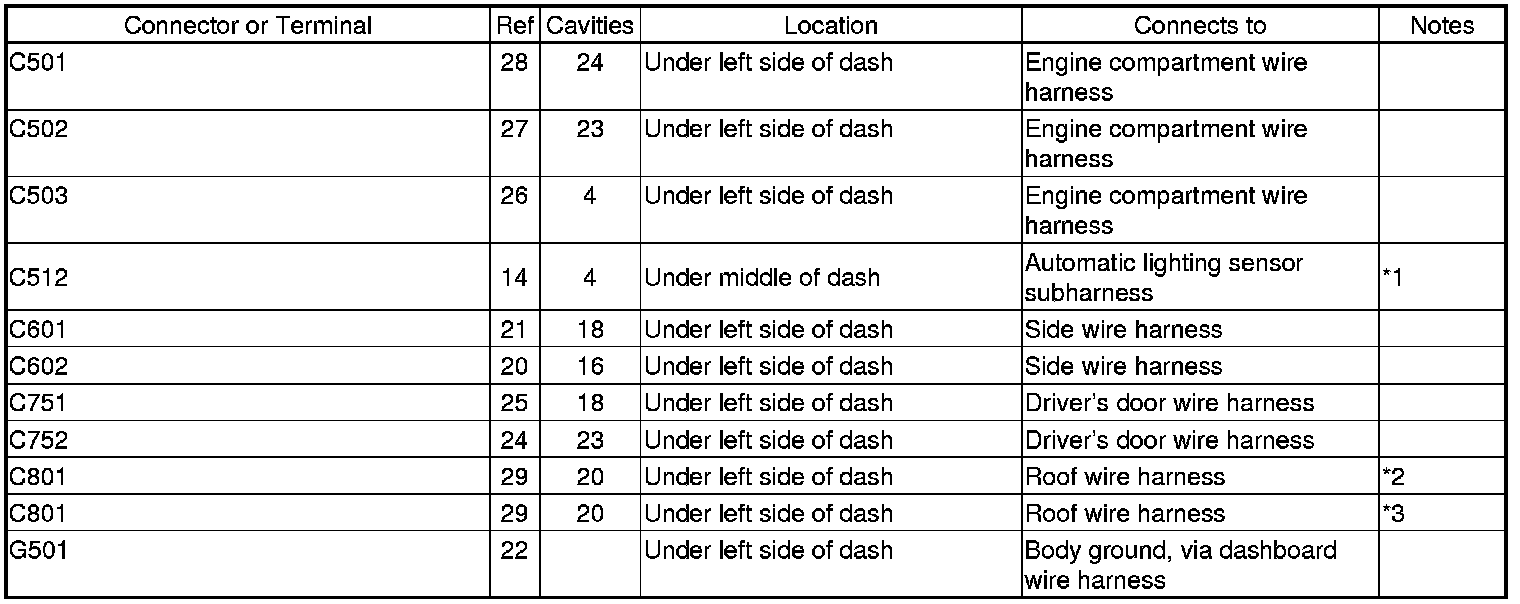

Dashboard Wire Harness (View of passenger's side)
