Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Floor Wire Harness
Floor Wire Harness

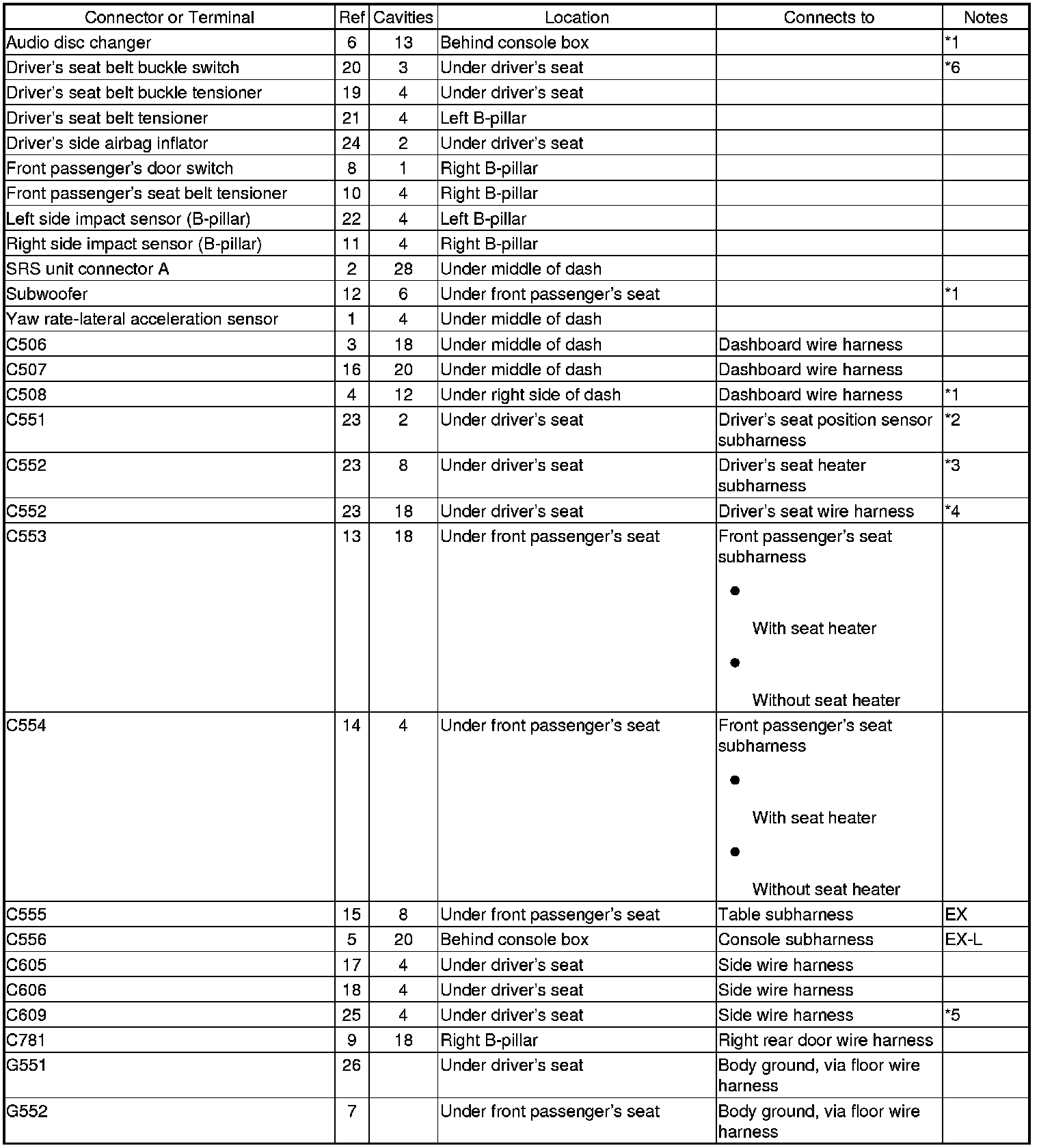

Connector and Harness Locations

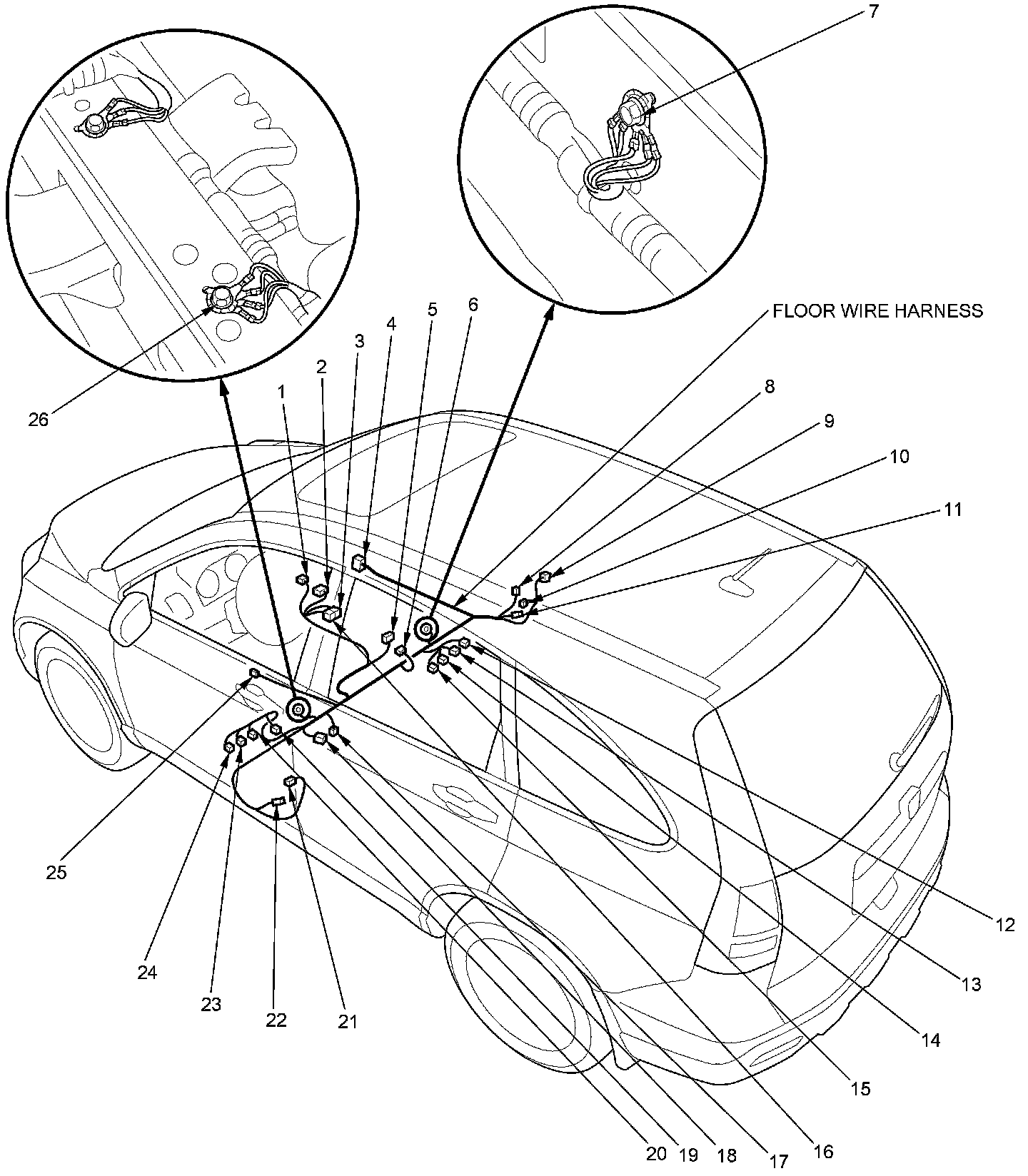

Floor Wire Harness
