Diesel Data
: Automotive Repair
Home
>>
Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Roof Wire Harness
Roof Wire Harness
Connector and Harness Locations

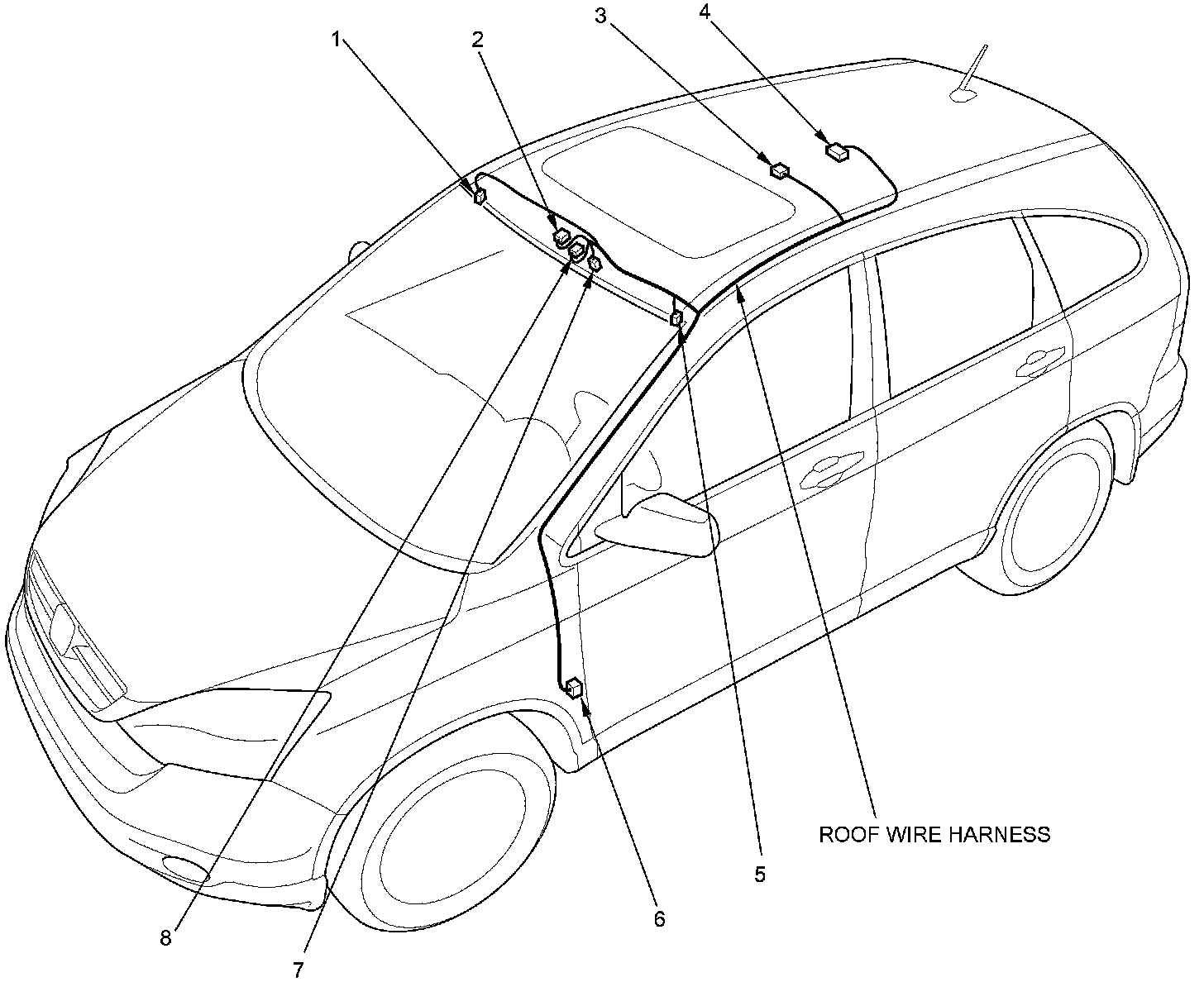

Roof Wire Harness (With moonroof)

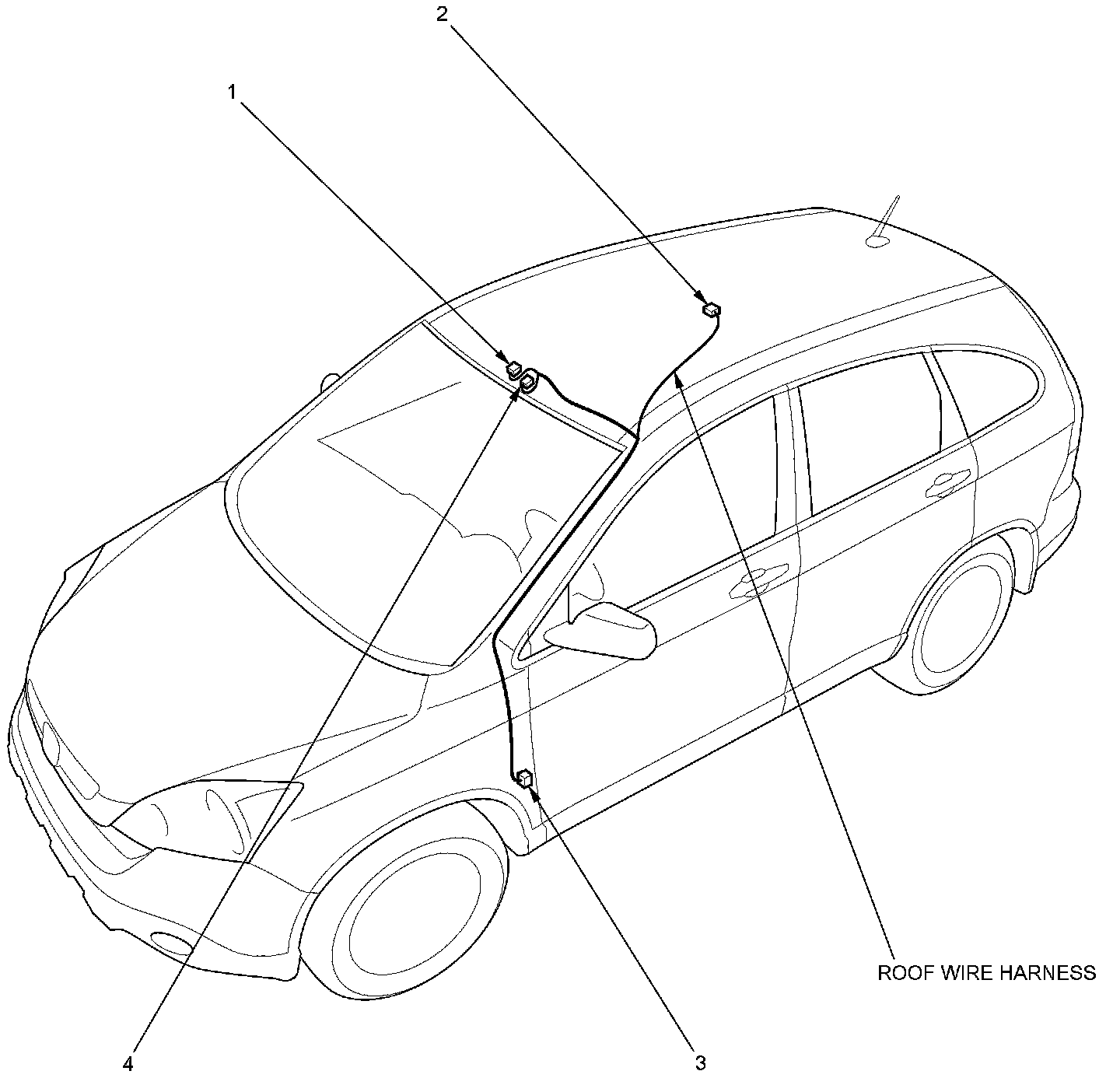

Roof Wire Harness (Without moonroof)
