Console Accessory Power Socket Test/Replacement (EX And EX-L)

Console Accessory Power Socket Test/Replacement

NOTE: If all of the front, console, and cargo area accessory power sockets do not work, check the No. 34 (7.5 A) fuse in the under-dash fuse/relay box and poor ground (G502).

1. For EX-L: Remove the center console Center Console Removal/Installation.

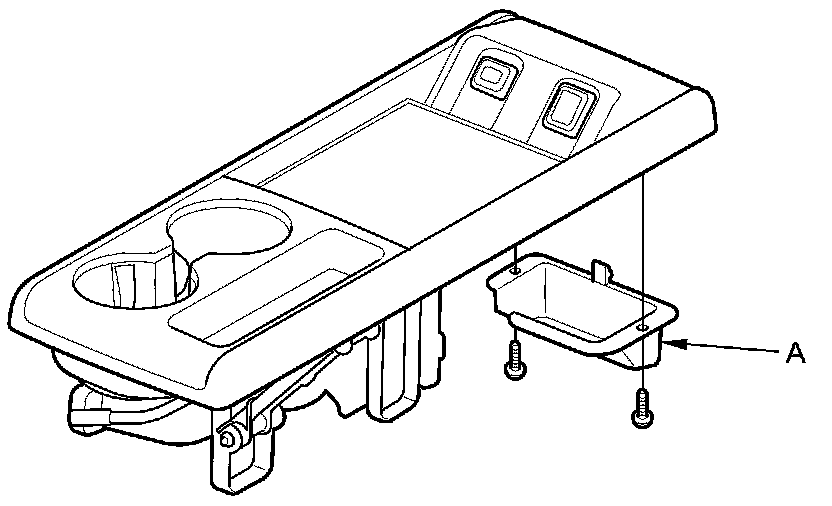

For EX: Remove the center table AUX cover (A) from the table.

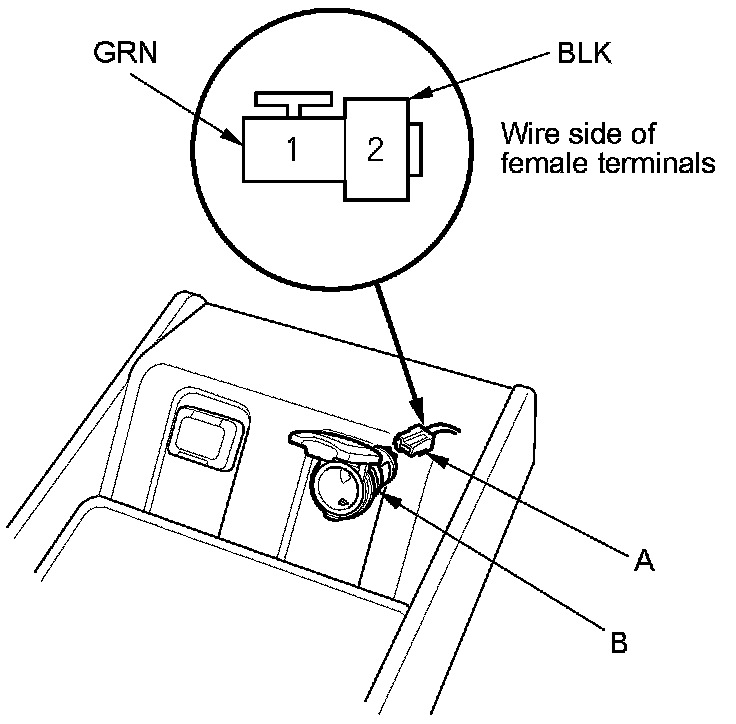

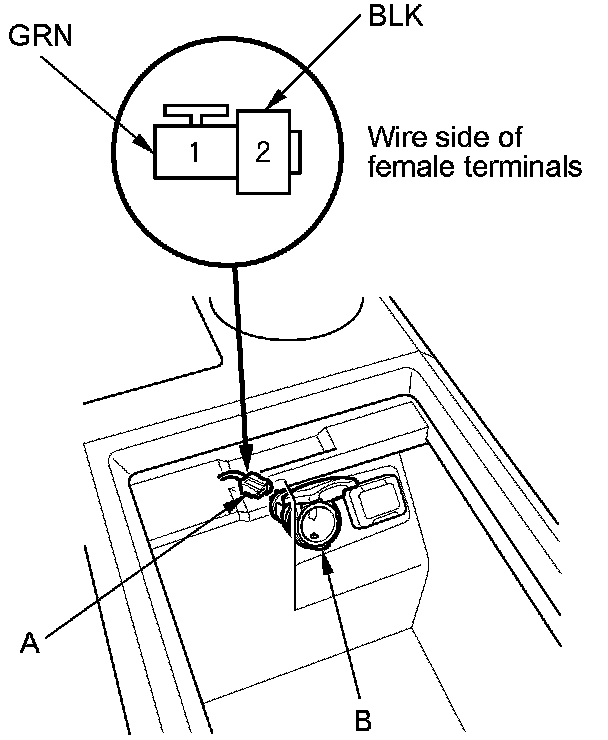

2. Disconnect the 2P connector (A) from the console accessory power socket (B).

EX-L

3. Inspect the connector terminals to be sure they are all making good contact.

- If the terminals are bent, loose, or corroded, repair them as necessary and recheck the system.
- If the terminals look OK, go to step 4.

4. Turn the ignition switch to ACC (I).

5. Measure the voltage between terminal No. 1 and body ground. There should be battery voltage.

- If there is battery voltage, go to step 6.
- If there is no battery voltage, check for:
- Blown No. 31 (15 A) fuse in the under-dash fuse/relay box.
- Faulty console accessory power socket relay.
- Poor ground (G502) or an open in the ground wire.
- An open or high resistance in the wire.

6. Measure the voltage between terminal No. 2 and body ground. There should be battery voltage.

- If there is battery voltage, go to step 7.
- If there is no battery voltage, check for:
- Poor ground (G551) or an open in the ground wire.
- An open or high resistance in the wire.

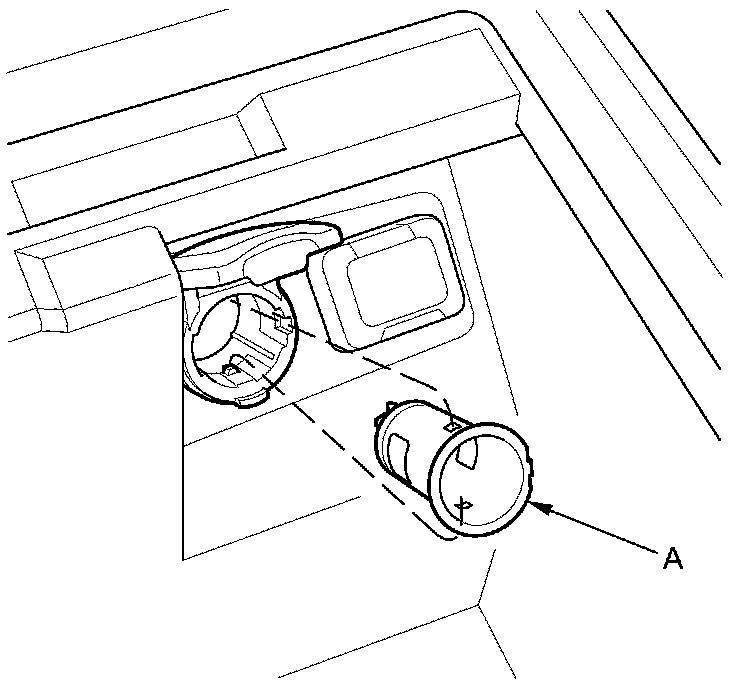

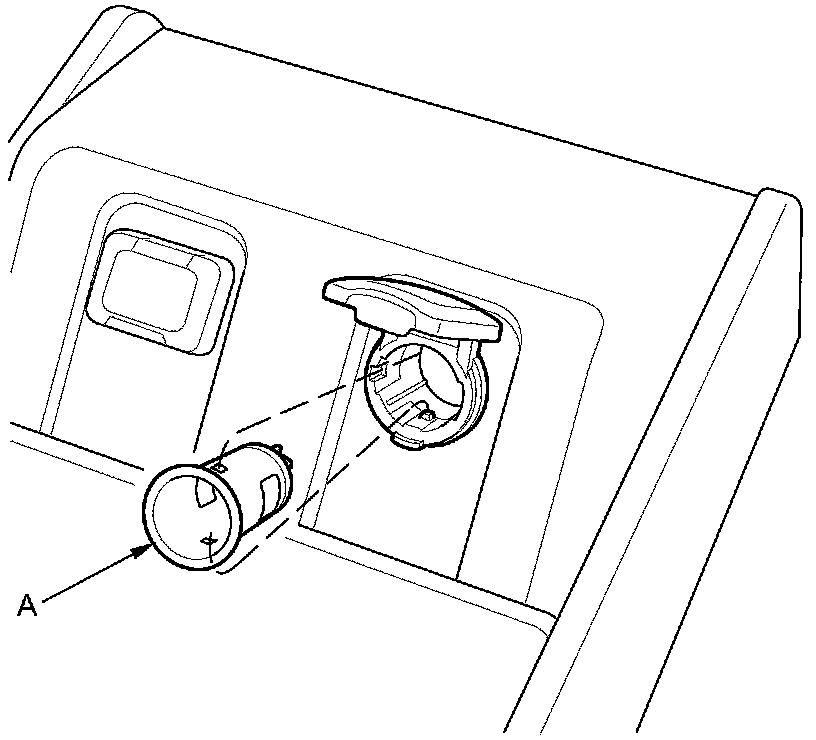

7. Remove the socket (A).

EX-L

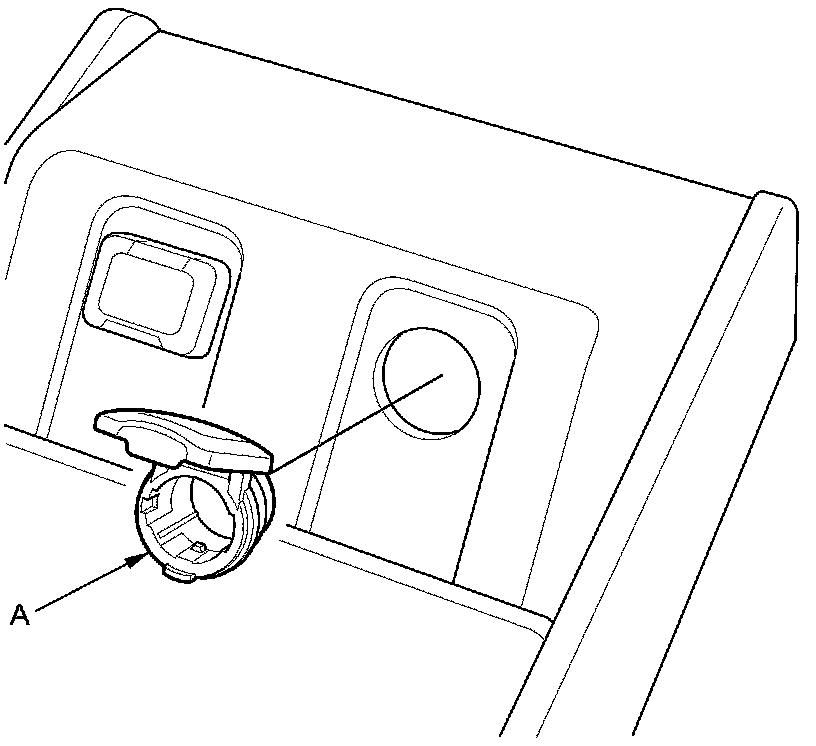

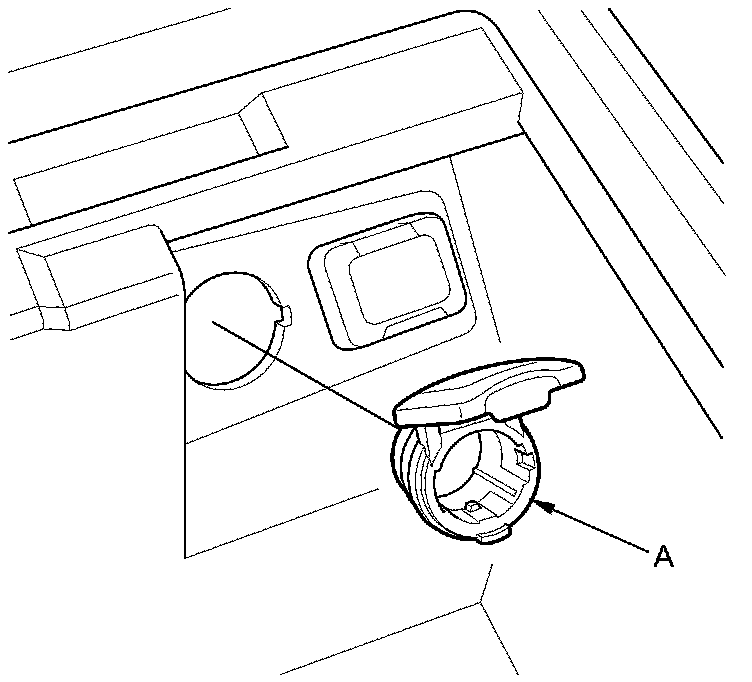

8. Remove the housing (A).

EX-L

9. Install the power socket in the reverse order of removal.
