Honda Truck
>>
2010
>>
CR-V 4WD L4-2.4L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>

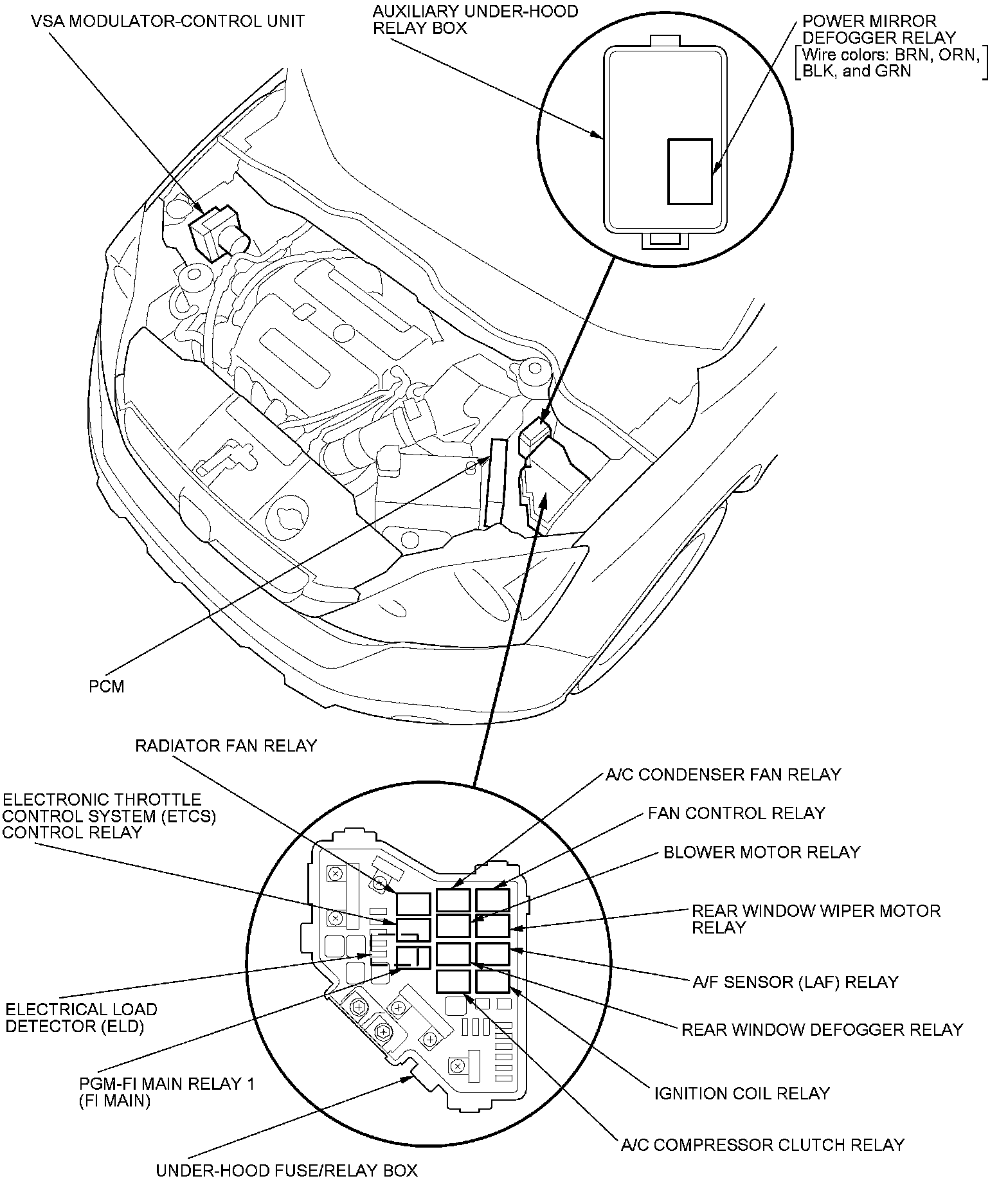

Relay And Control Unit Locations - Engine Compartment
Relay And Control Unit Locations - Engine Compartment
Relay and Control Unit Locations - Engine Compartment
