Pinout Values and Diagnostic Parameters

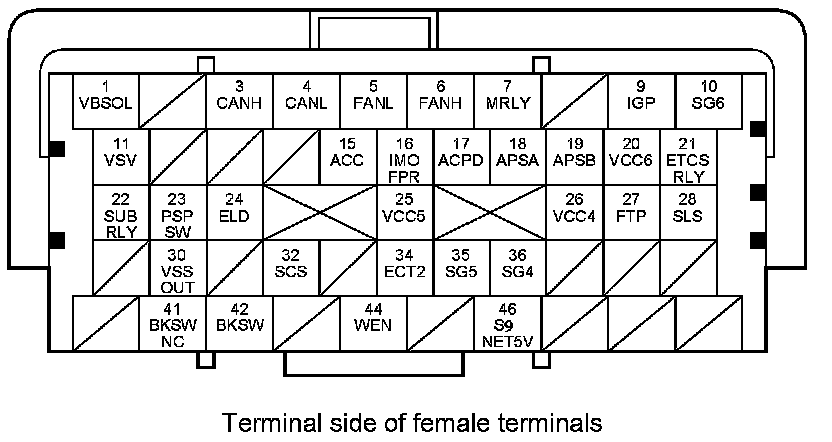

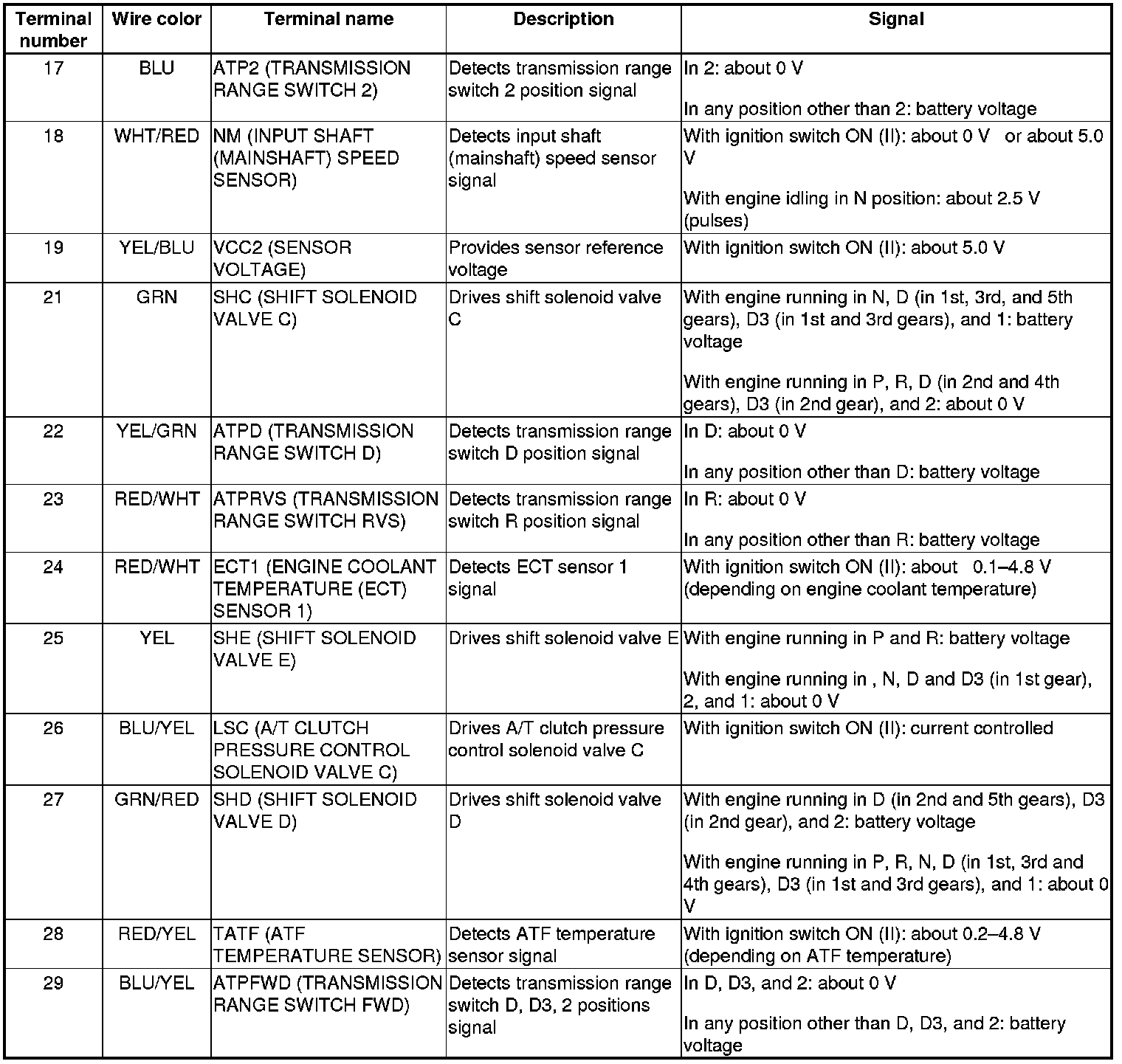

PCM Inputs and Outputs at PCM Connector A ((square)) (49P)

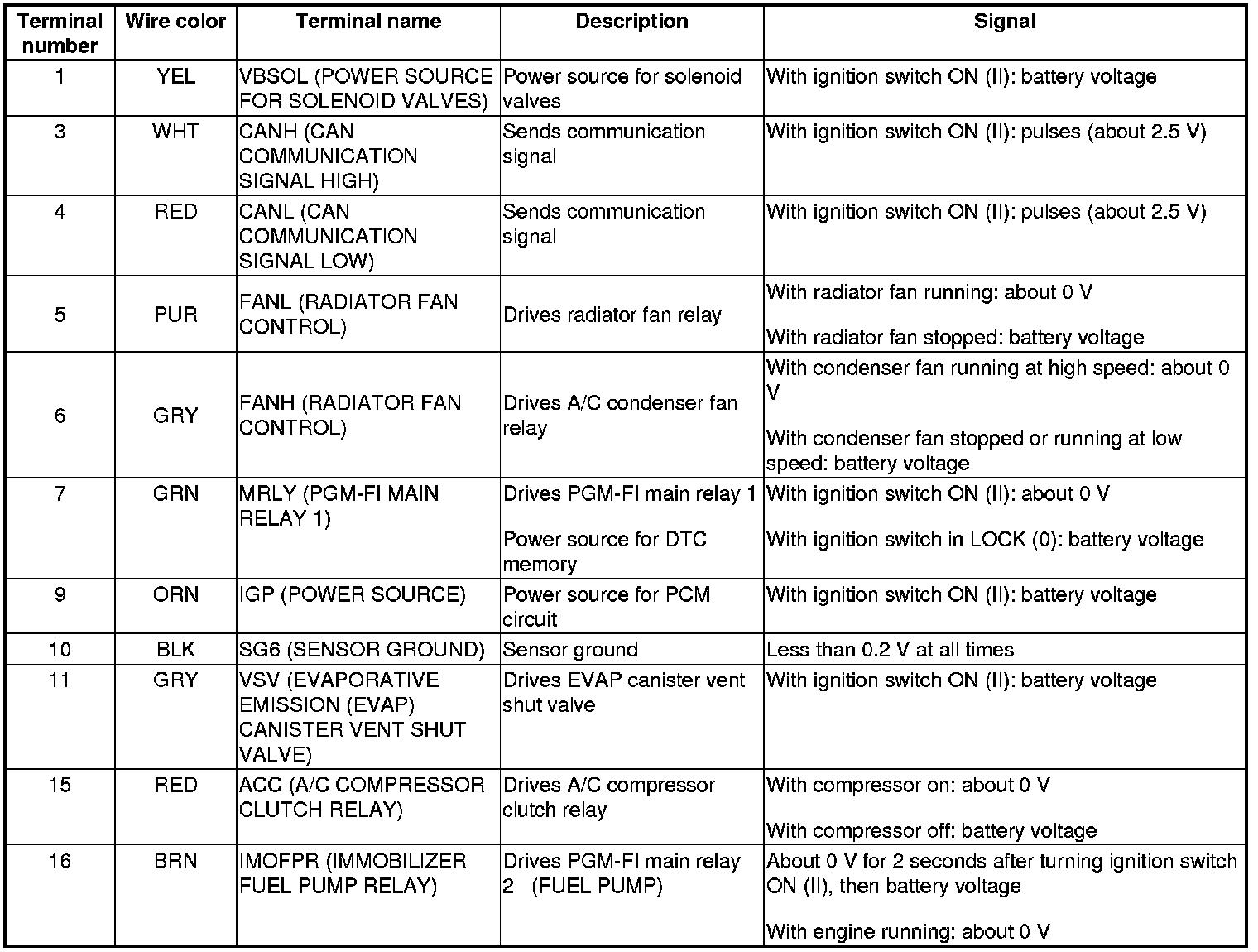

PCM Inputs and Outputs at PCM Connector A ((square)) (49P)










PCM Inputs and Outputs at PCM Connector A ((square)) (49P)

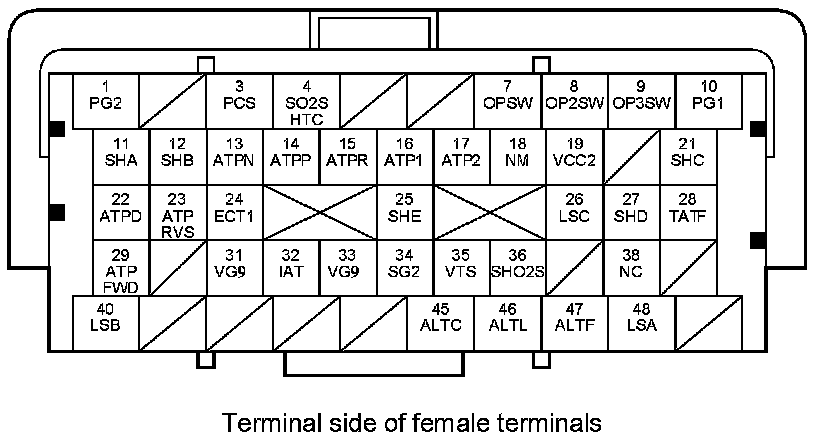

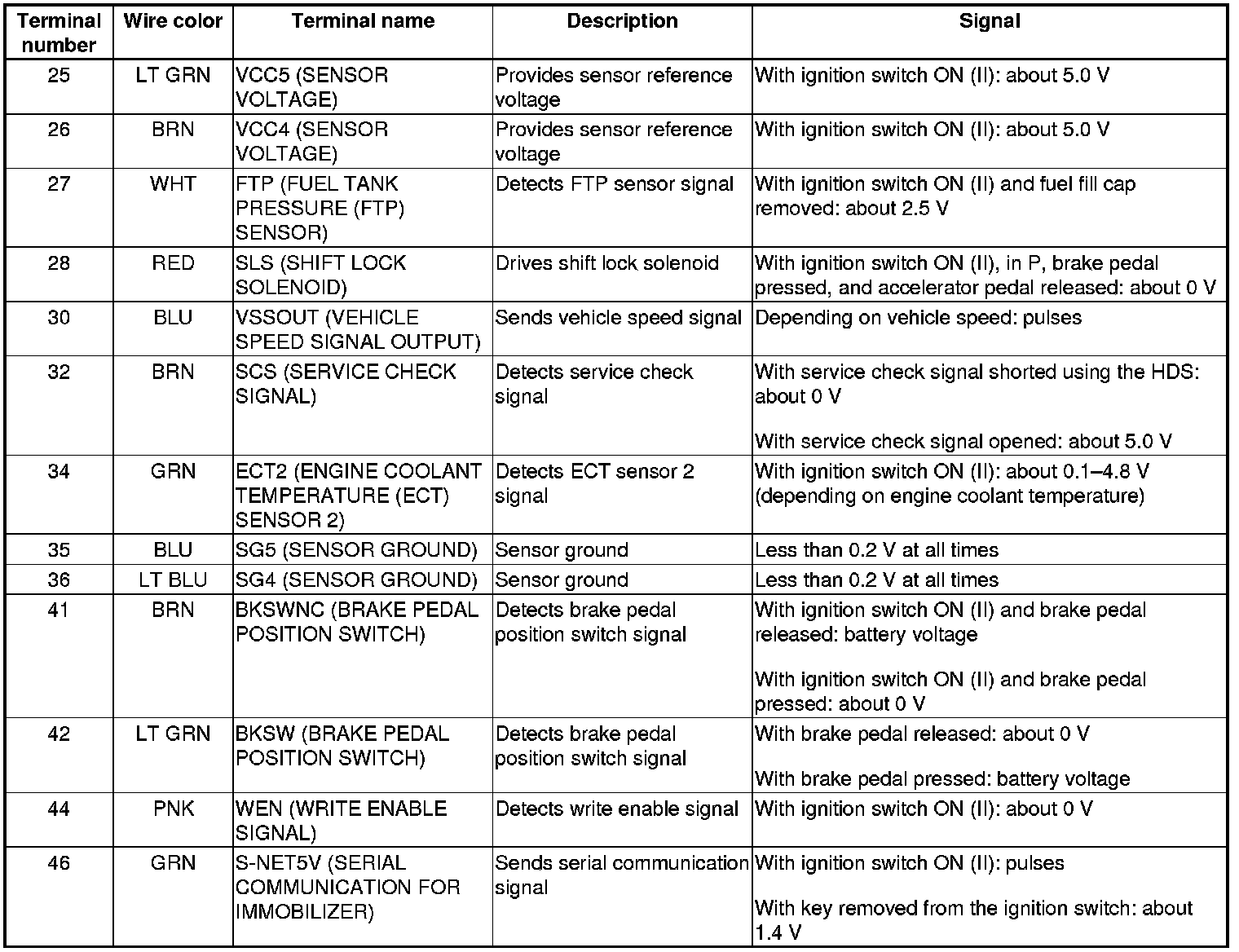

PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P)

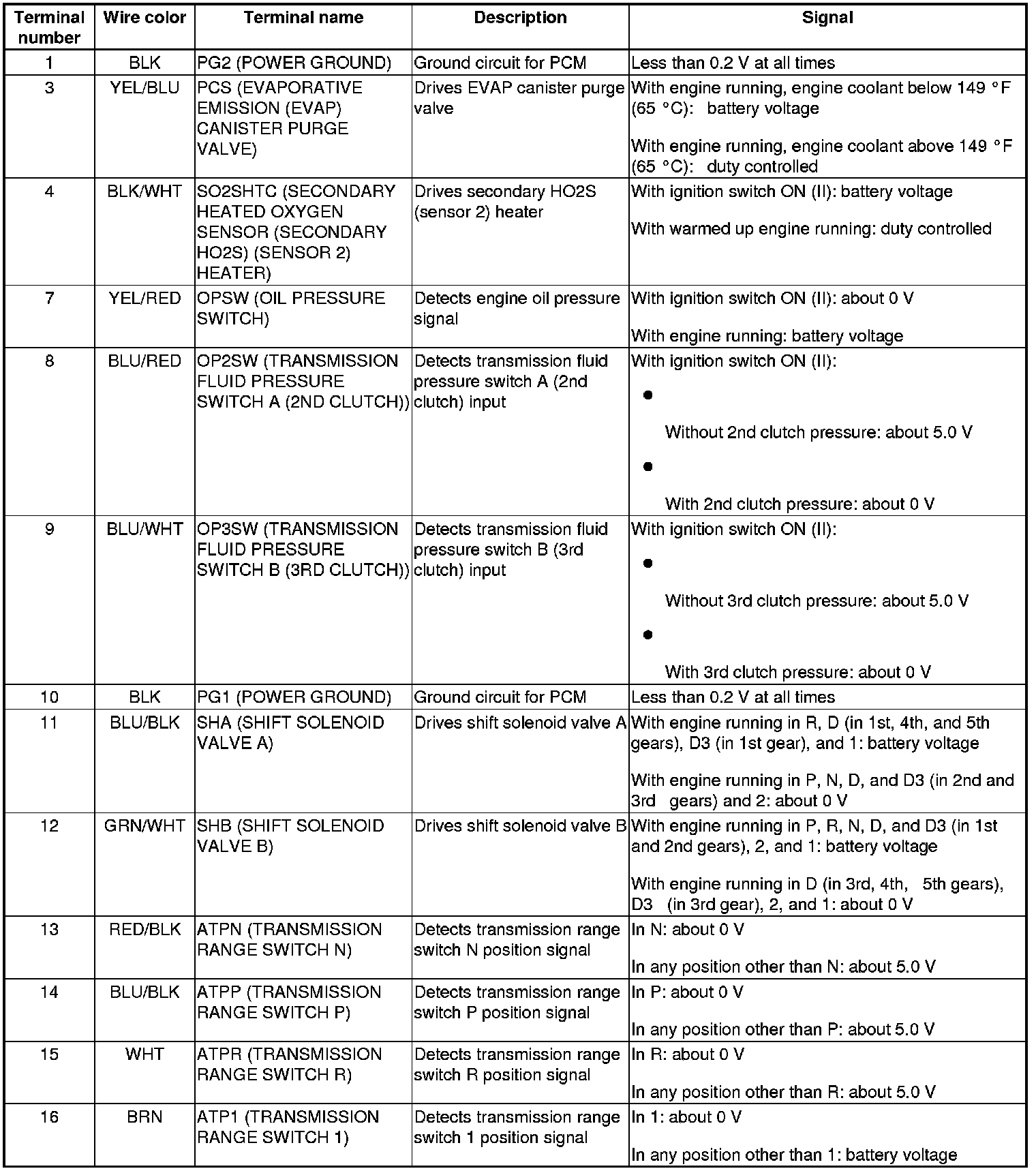

PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P)

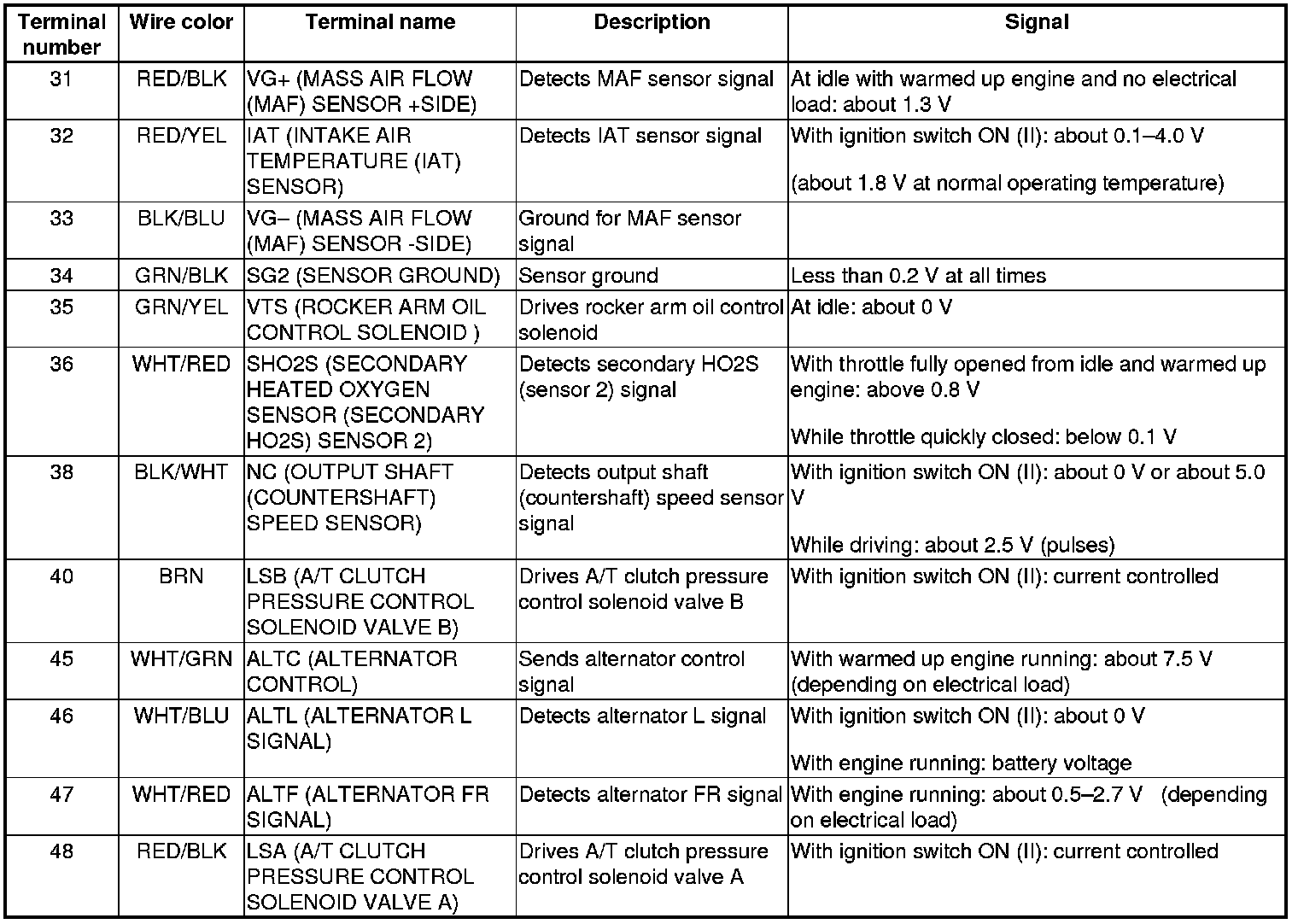

PCM Inputs and Outputs at PCM Connector B ((triangle)) (49P)

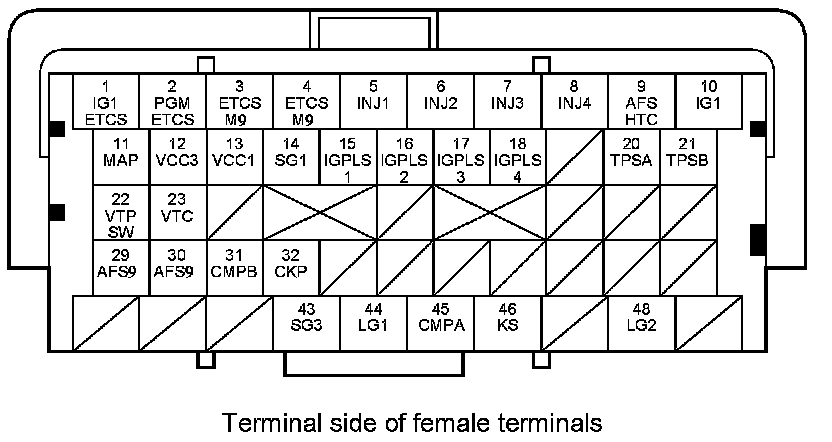

PCM Inputs and Outputs at PCM Connector C ((circle)) (49P)

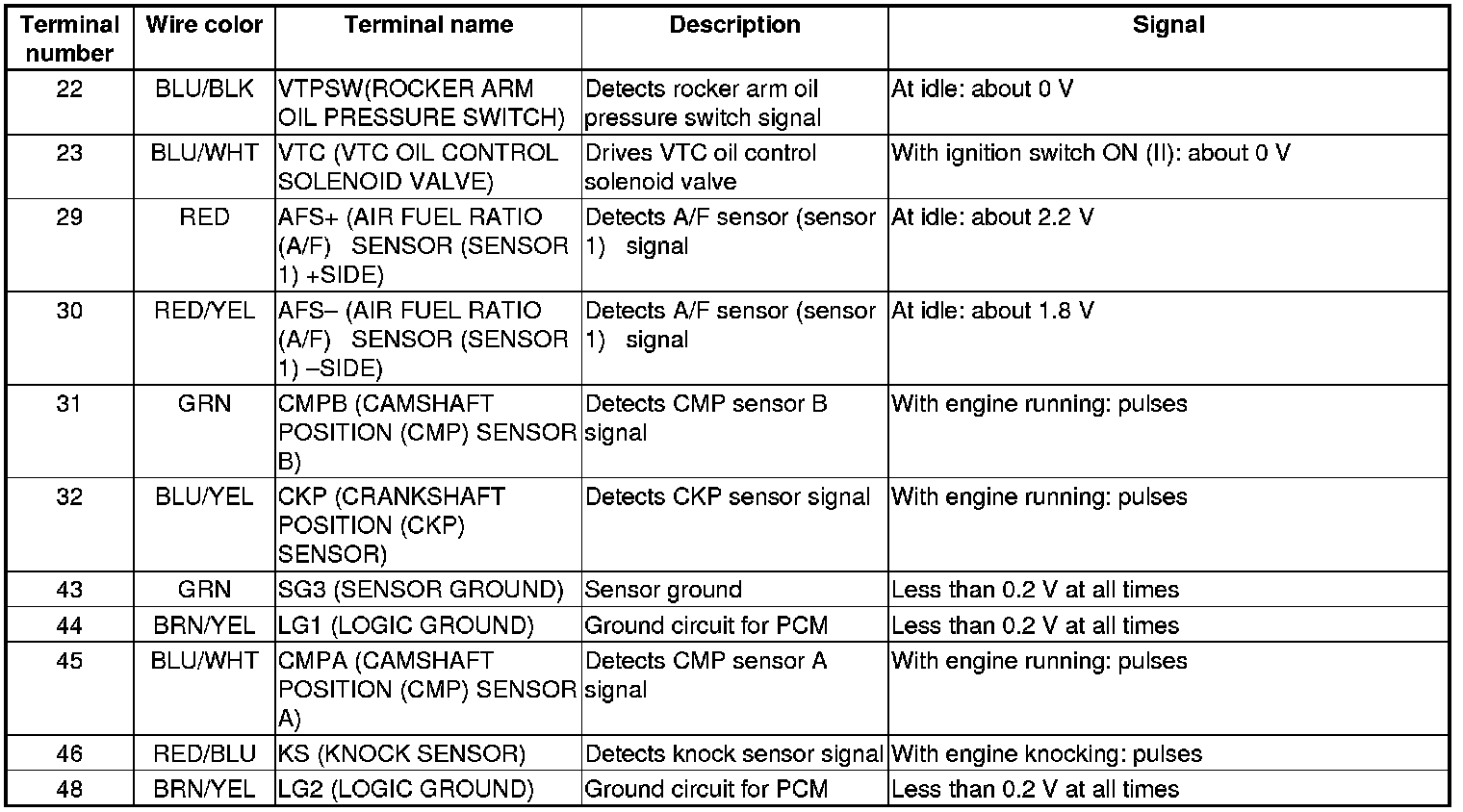

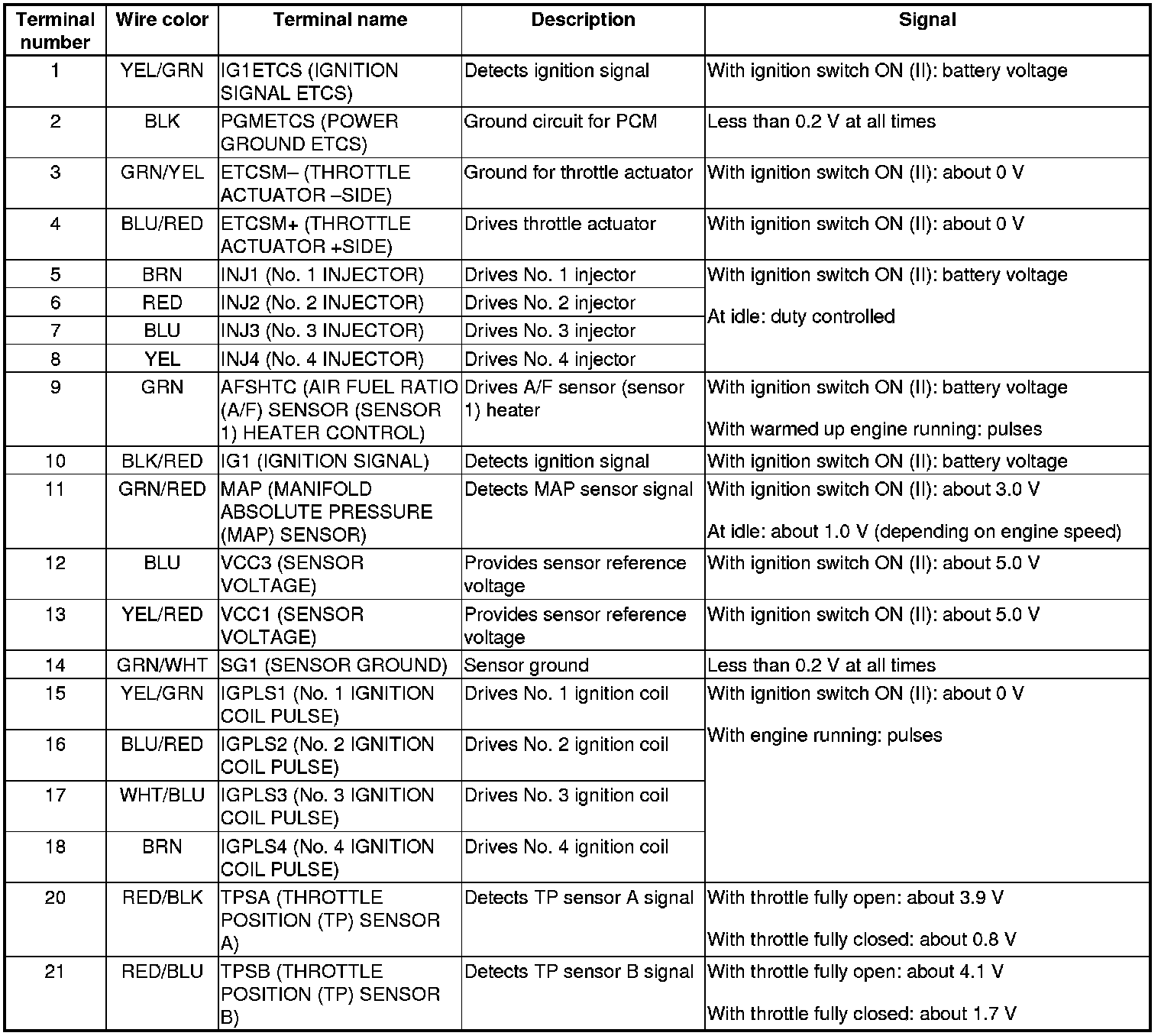

PCM Inputs and Outputs at PCM Connector C ((circle)) (49P)
