Vacuum and Vapor Hose Diagrams

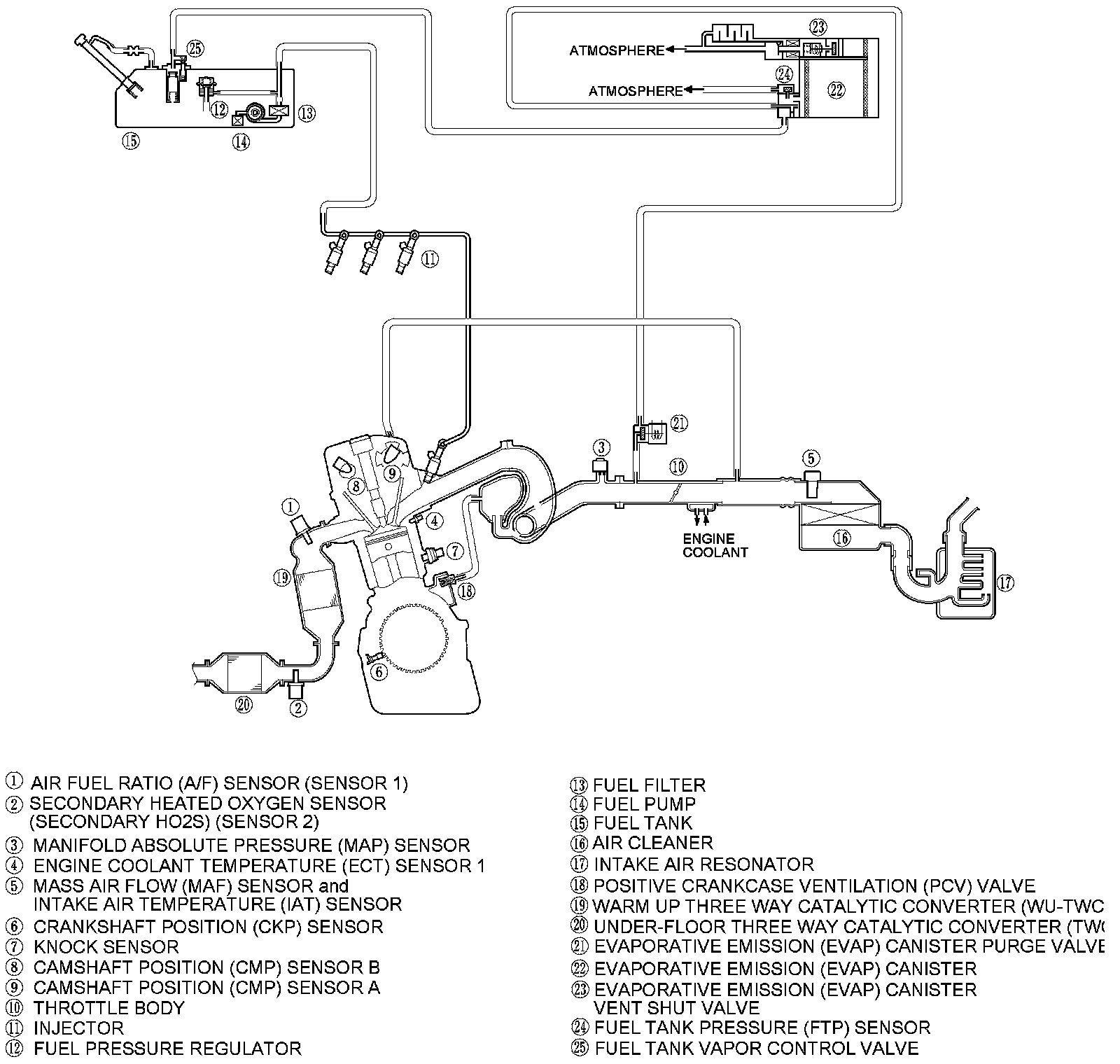

Fuel and Emissions System Description - Fuel and Emissions Systems Diagram

Vacuum Distribution

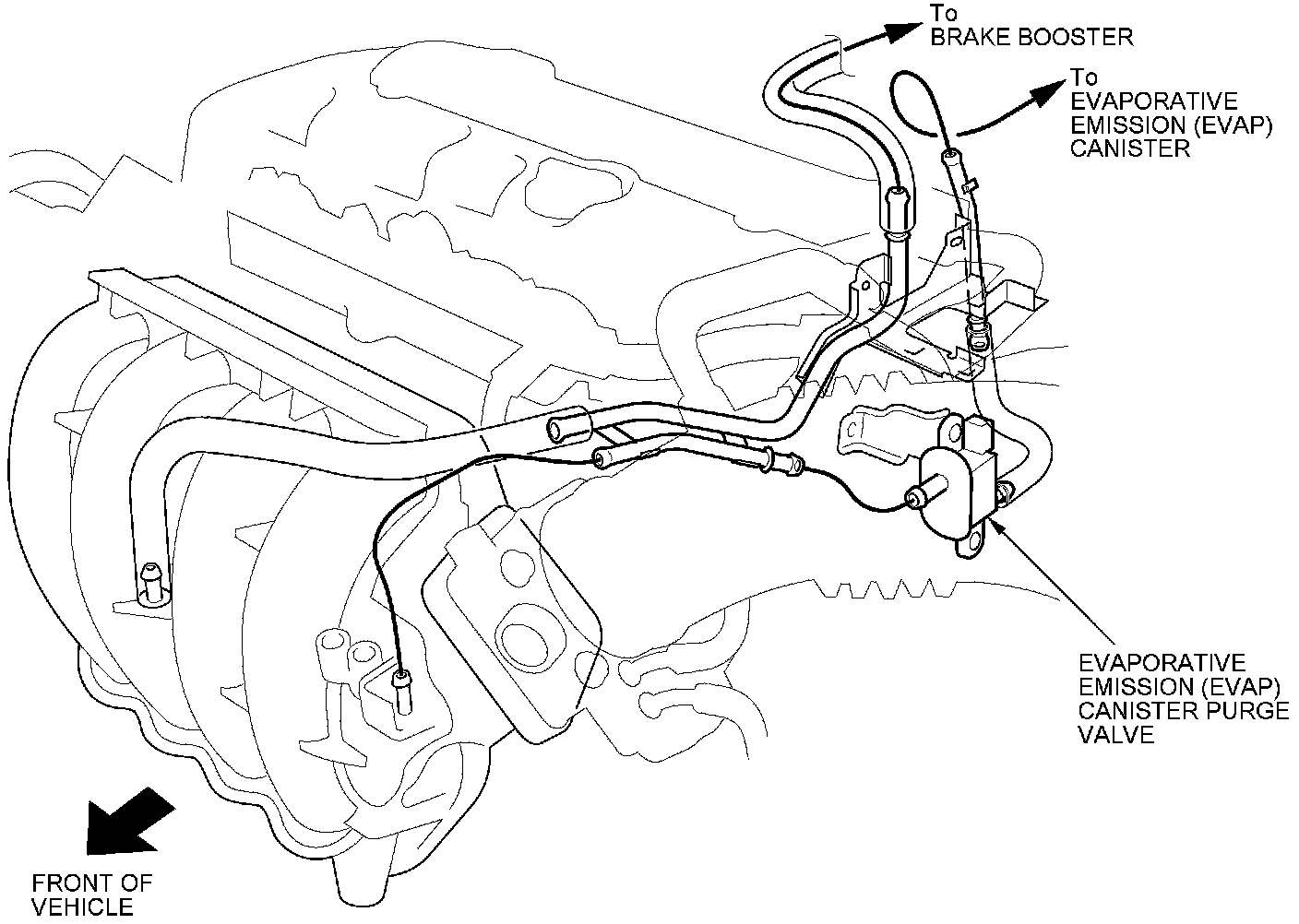

Vacuum Hose Routing
