Warm Up TWC Removal/Installation

Warm Up TWC Removal/Installation

1. Remove the A/F sensor (Sensor 1).

2. Remove the under-cowl panel Service and Repair.

3. Raise the vehicle on a lift.

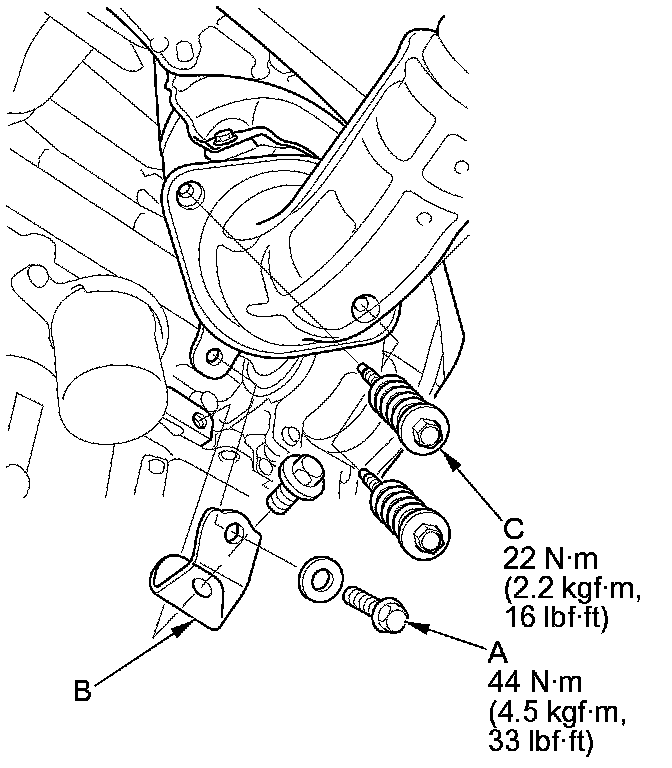

4. Remove the bolts (A) and the WU-TWC bracket (B).





5. Remove the bolts (C).

6. Lower the vehicle.

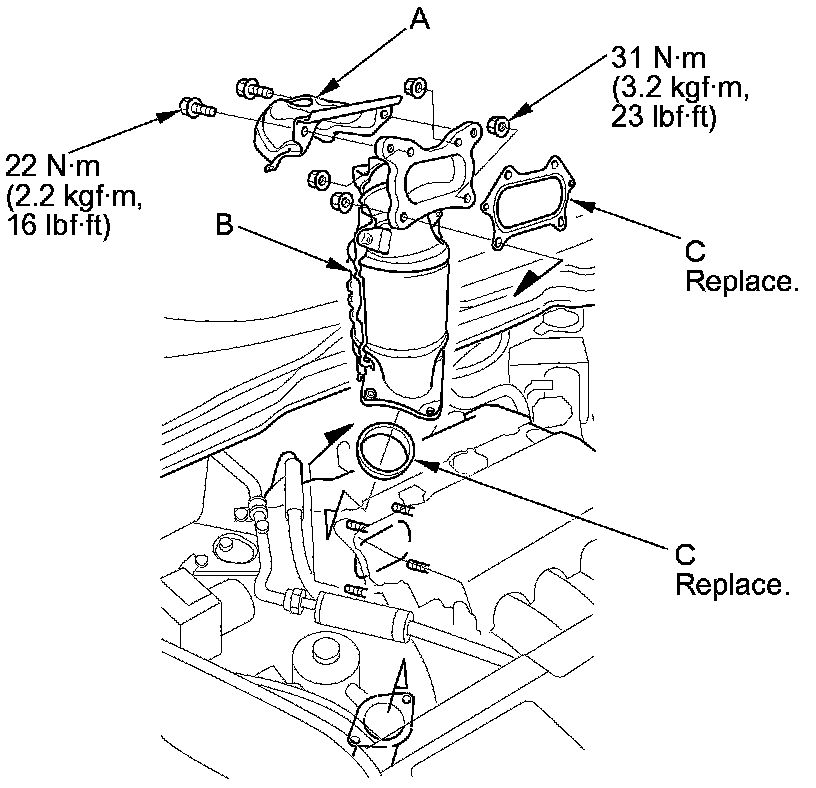

7. Remove the upper converter cover (A).





8. Remove the WU-TWC (B) and the gaskets (C).

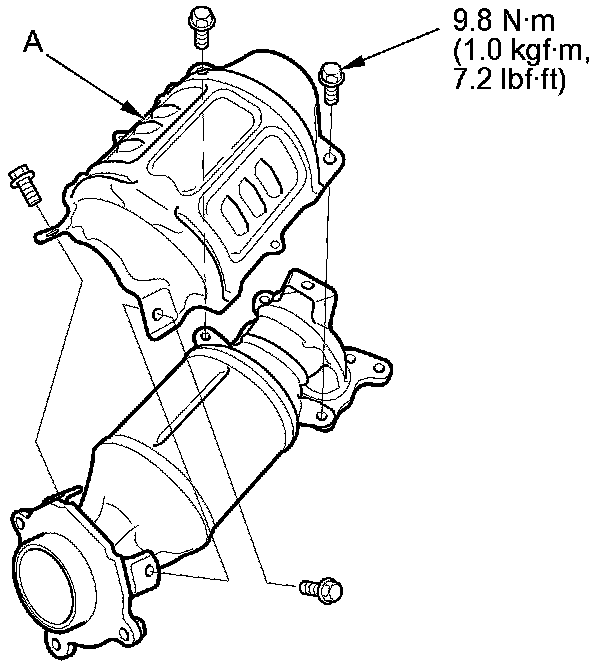

9. Remove the converter cover (A).





10. Install the parts in the reverse order of removal with new gaskets.
