Resonator: Service and Repair

Intake Air Resonator Removal/Installation

1. Remove the air cleaner Service and Repair.

2. Remove the front bumper Front Bumper.

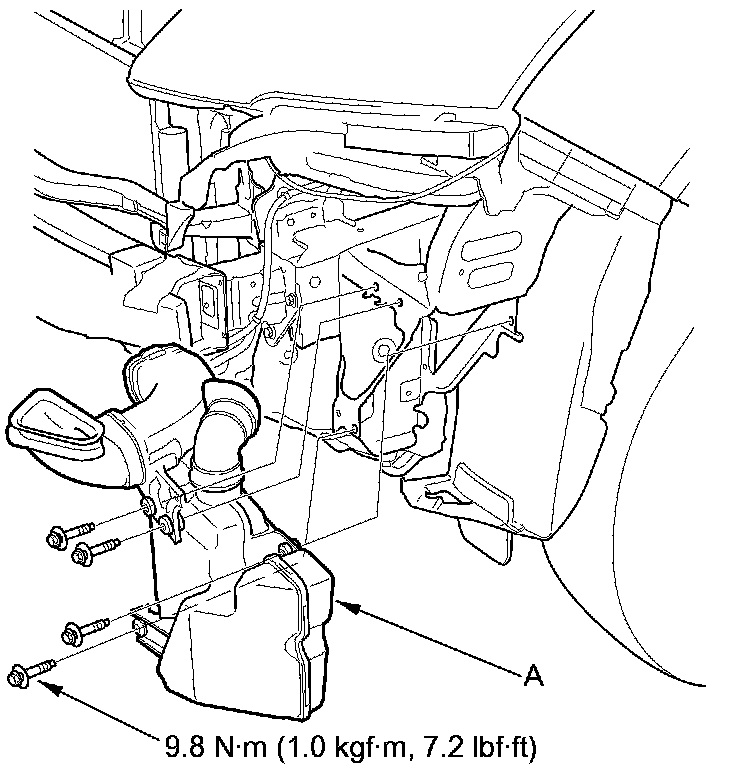

3. Remove the intake air resonator (A).





4. Install the parts in the reverse order of removal.
