Shift Lock Solenoid Replacement




Shift Lock Solenoid Replacement

NOTE: Make sure not to get any silicone grease to the terminal part of the connectors and switches when applying silicone grease, if you have silicone grease on your hand or glove.

1. Remove the shift lever A/T Shift Lever Removal.

2. Remove the shift lock solenoid connector.

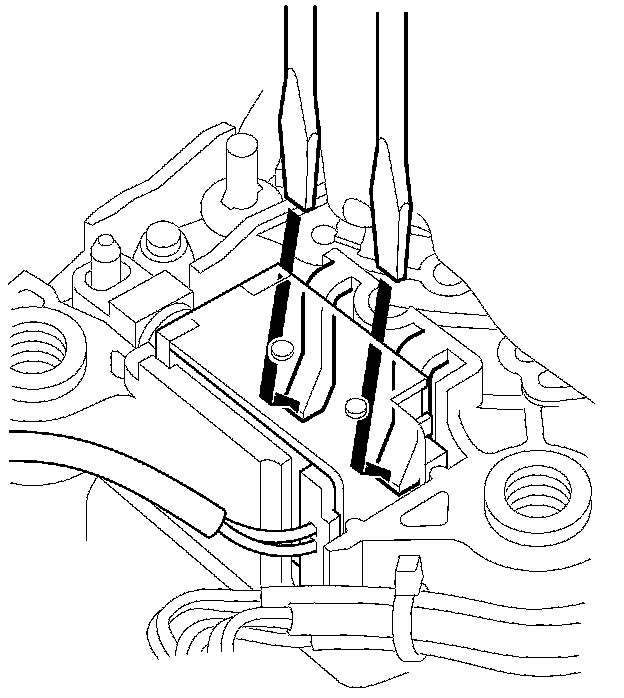

3. Release the lock tabs retaining the shift lock solenoid using thin blade screwdrivers.

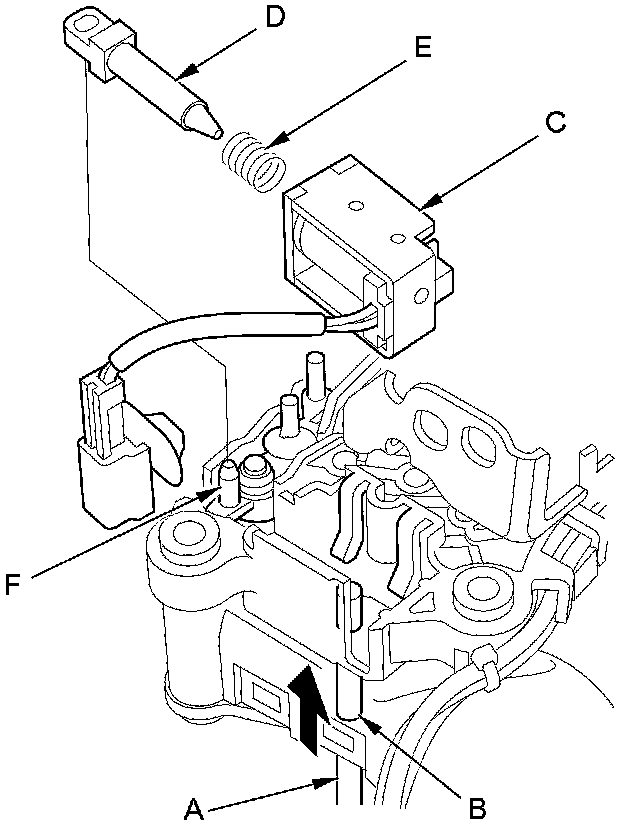

4. Insert a 6 mm (0.24 in) pin (A) into the guide hole (B), and push the shift lock solenoid (C) out.





5. Replace the shift lock solenoid, the solenoid plunger (D), and the plunger spring (E) assembly.

6. Apply silicone grease to the tip (F) of the shift lock stop and the solenoid plunger. Keep the connector terminals free of silicone grease.

7. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop, then push the shift lock solenoid into the shift lever securely.

8. Install the shift lock solenoid connector.

9. Install the shift lever A/T Shift Lever Installation.
