D3 Switch Test

D3 Switch Test

1. Remove the dashboard center lower covers Dashboard Center Lower Cover Removal/Installation.

2. Disconnect the D3 switch/park pin switch/A/T gear position indicator panel light connector.

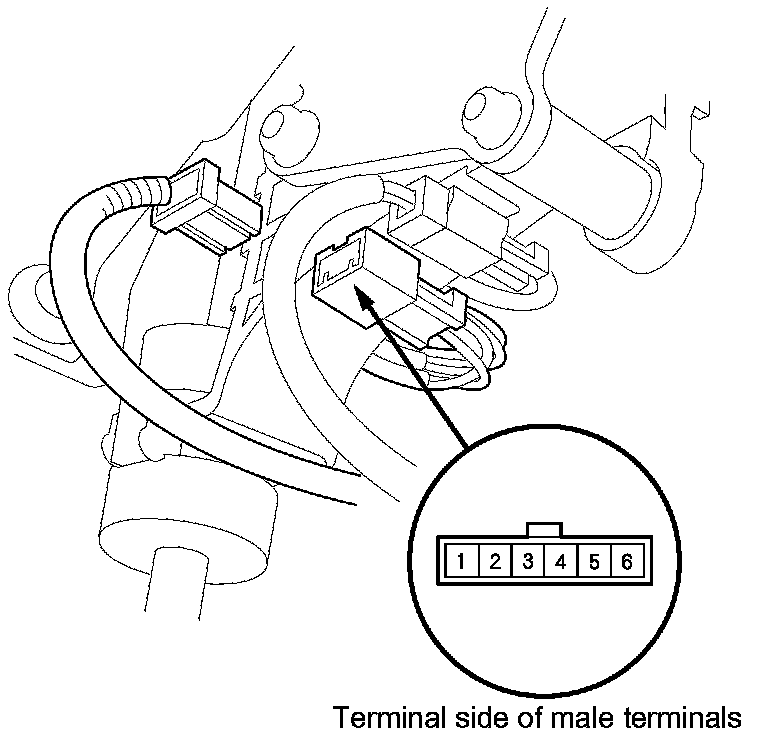

3. Push the D3 switch several times, and check the switch for continuity between D3 switch/park pin switch/A/T gear position indicator panel light connector terminals No. 5 and No. 6. There should be toggled continuity and no continuity between terminals every time the D3 switch is pushed.

4. D3 switch test is finished if the test result is OK. If the D3 switch works incorrectly at the D3 switch/park pin switch/A/T gear position indicator panel light connector, test the D3 switch at the D3 switch 2P connector.

5. Remove the shift lever A/T Shift Lever Removal.

6. Remove the D3 switch 2P connector from the connector holder, and disconnect it.

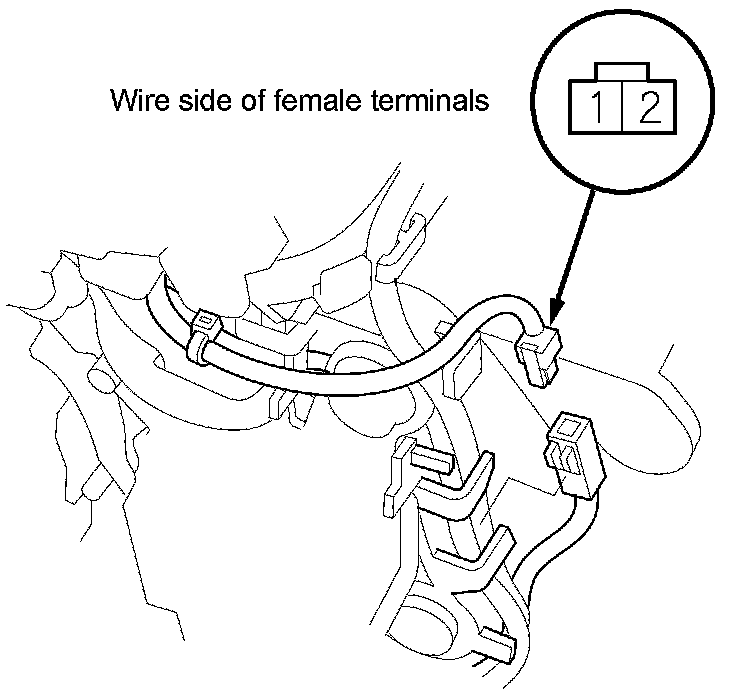

7. Push the D3 switch several times, and check the switch for continuity between D3 switch 2P connector terminals No. 1 and No. 2. There should be toggled continuity and no continuity between terminals every time the D3 switch is pushed.

8. Replace the D3 switch Service and Repair if the switch works incorrectly.

9. Replace the D3 switch connector harness, the A/T gear position indicator panel light harness, and the park pin switch as a set A/T Gear Position Indicator Panel Light Harness Replacement if the switch is OK. The D3 switch connector harness is not available from the A/T gear position indicator panel light harness and the park pin switch.

10. Connect the 2P connector, and install it in the holder.

11. Install the shift lever A/T Shift Lever Installation.

12. Install the dashboard center lower covers Dashboard Center Lower Cover Removal/Installation.
