Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

Front Passenger's Airbag Cutoff Indicator Illumination Bulb Test/Replacement

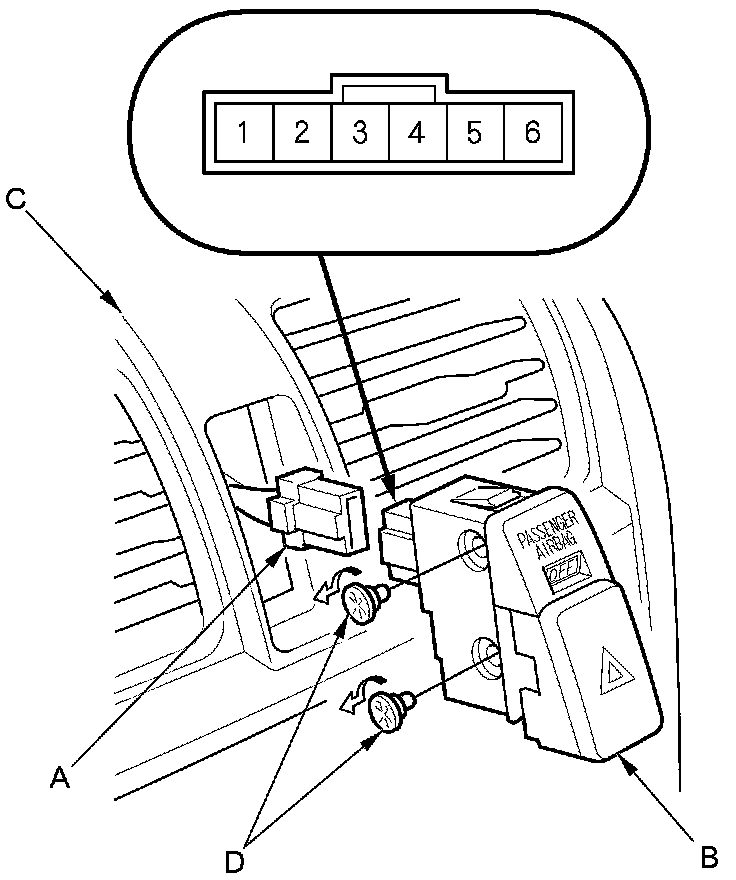

1. Remove the dashboard center vent panel Dashboard Center Vent Removal/Installation.

2. Disconnect the 6P connector (A) from the front passenger's airbag cutoff indicator (B).





3. Push out the front passenger's airbag cutoff indicator from behind the center vent panel (C).

4. Check for continuity between the No. 3 and No. 4 terminals of the indicator. If there is no continuity, replace the bulb (D).

NOTE: Both illumination bulbs are connected in parallel. If there is continuity, remove the upper, front passenger's airbag cutoff indicator illumination bulb, and recheck for continuity. If there is no continuity, replace the lower, hazard switch illumination bulb.

5. Reinstall the parts in the reverse order of removal.

6. Clear any DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

7. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.
