Seat Position Sensor: Service and Repair

Driver's Seat Position Sensor Replacement

Removal

NOTE:

- Removal of the driver's seat position sensor must be performed according to the Precautions and Procedures Service and Repair.
- Do not turn the ignition switch to ON (II), and do not connect the battery cable while removing the driver's seat position sensor.

1. Do the battery terminal disconnection procedure Procedures, then wait at least 3 minutes before starting work.

2. Remove the driver's seat Front Seat Removal/Installation.

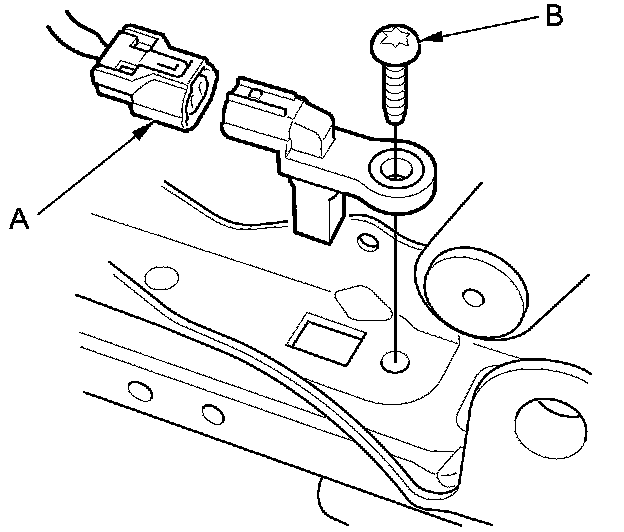

3. Disconnect the seat position sensor harness 2P connector (A) from the driver's seat position sensor.





4. Remove the TORX bolt (B) using a TORX T30 bit, then remove the driver's seat position sensor.

Installation

NOTE:

- Be sure to install the harness so it does not pinched or interfere with other parts.
- Do not turn the ignition switch to ON (II), and do not connect the battery cable while installing the driver's seat position sensor.
- After installing the driver's seat position sensor, make sure it is clean. Keep it away from dust.

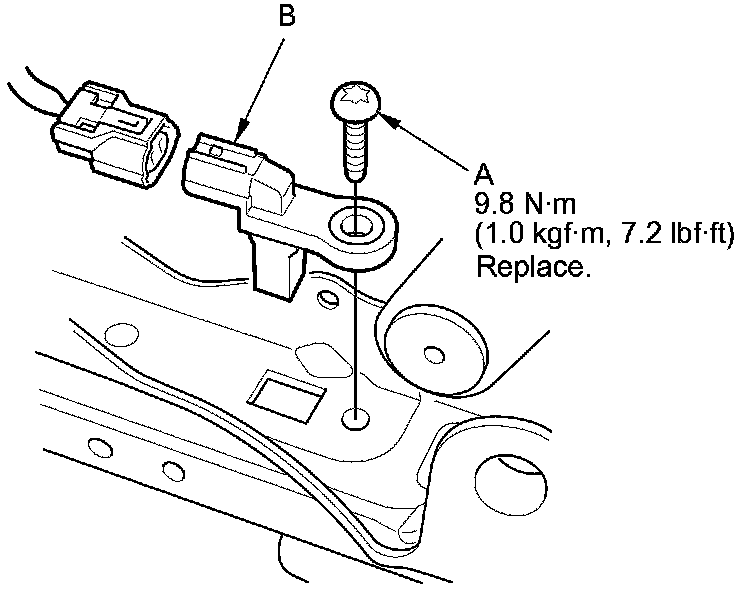

1. Install the driver's seat position sensor with a new TORX bolt (A), then connect the floor wire harness or seat position sensor harness 2P connector to the driver's seat position sensor (B).





2. Install the driver's seat Front Seat Removal/Installation.

3. Do the battery terminal reconnection procedure Procedures.

4. Clear any DTCs with the HDS Reading and Clearing Diagnostic Trouble Codes.

5. Check the operation of the driver's seat position sensor with the HDS Driver's Seat Position Sensor Operation Check.

6. Confirm proper SRS operation: Turn the ignition switch to ON (II), and check that the SRS indicator comes on for about 6 seconds and then goes off.

7. Reinstall all removed parts.
