Steering Gear Mount: Service and Repair

Steering Gearbox Mount Cushion Replacement

1. Remove the steering gearbox.

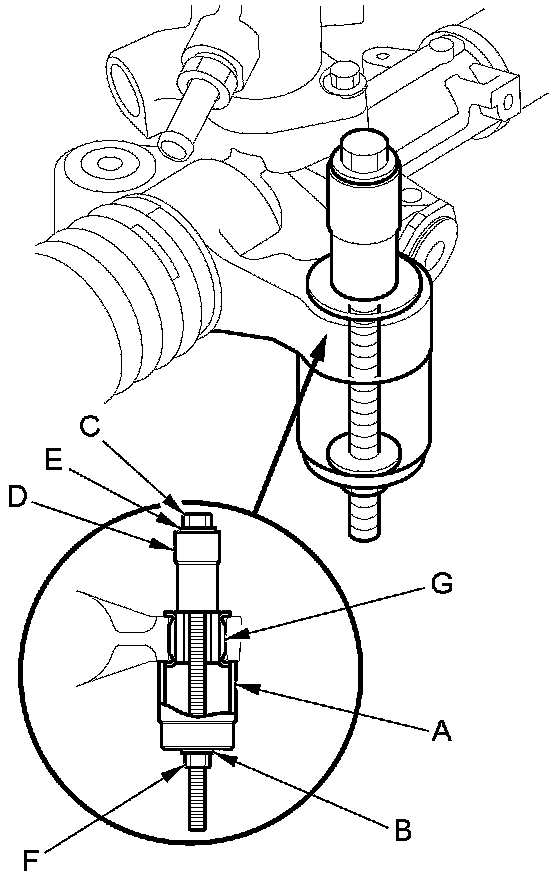

2. Position a 34 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), an appropriate size socket (D), a washer (E), and a 10 mm nut (F) as shown.





3. Hold the nut with a wrench, and tighten the flange bolt with another wrench. Remove the gearbox mount cushion (G).

4. Apply a mild soap and water solution to the new gearbox mount cushion surface (A), then place the mount cushion on the gearbox mounting cushion hole.





5. Position a 34 mm socket (B) on the flange part of the gearbox housing with a washer, a flange bolt, and a nut as shown.

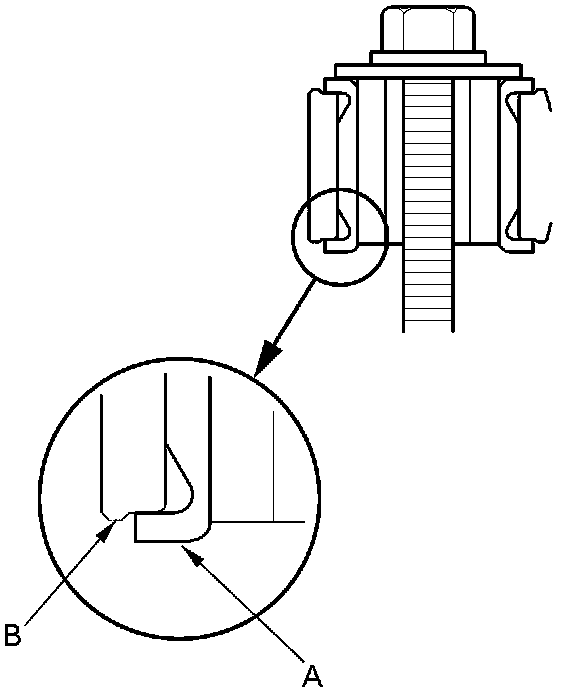

6. Install the gearbox mount cushion by tightening the nut until the mount cushion edge (A) properly fits on the gearbox flange surface (B).





7. Install the steering gearbox.
