Rear Stabilizer Bar Replacement

Rear Stabilizer Bar Replacement

1. Raise and support the vehicle Service and Repair.

2. Remove the rear wheels.

3. Disconnect both stabilizer links from the stabilizer bar Rear Stabilizer Link Removal/Installation.

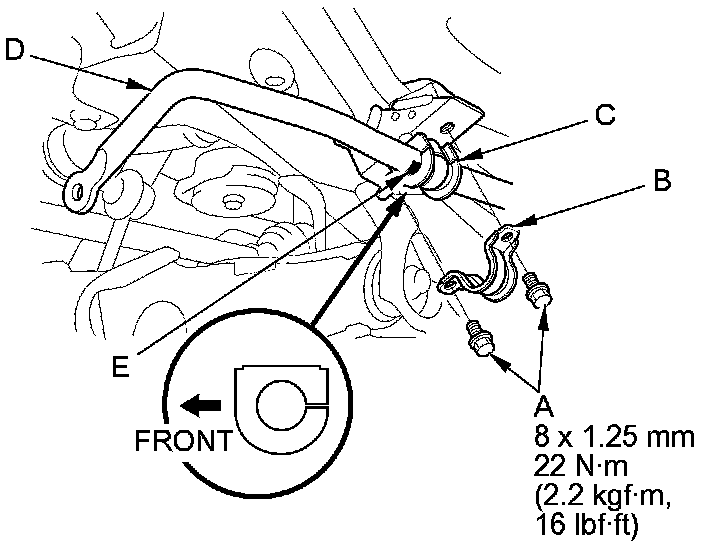

4. Remove the flange bolts (A) and the bushing holders (B), then remove the bushings (C) and the stabilizer bar (D).





5. Install the stabilizer bar in the reverse order of removal, and note these items:

- Note the right and left direction of the stabilizer bar.
- Align the paint marks (E) on the stabilizer bar with the sides of the bushings.
- Note the fore/aft direction of the bushings.
- Refer to the stabilizer link removal/installation to connect the stabilizer bar to the links Rear Stabilizer Link Removal/Installation.
- Clean the mating surface of the brake disc/drum and the inside of the wheel, then install the rear wheel.

6. Check the wheel alignment, and adjust it if necessary Service and Repair.
