A/T 4th And 5th Clutch Reassembly

A/T 4th and 5th Clutch Reassembly

Special Tools Required

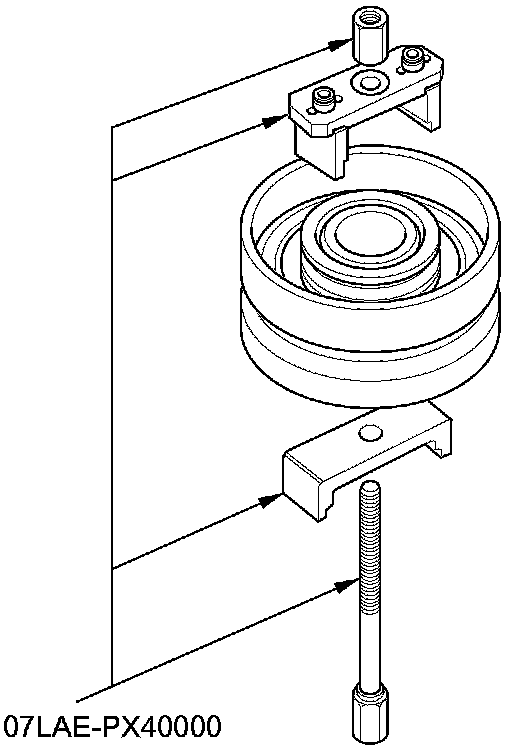

- Clutch Spring Compressor Set 07LAE-PX40000

1. Soak the clutch discs thoroughly in ATF for at least 30 minutes.

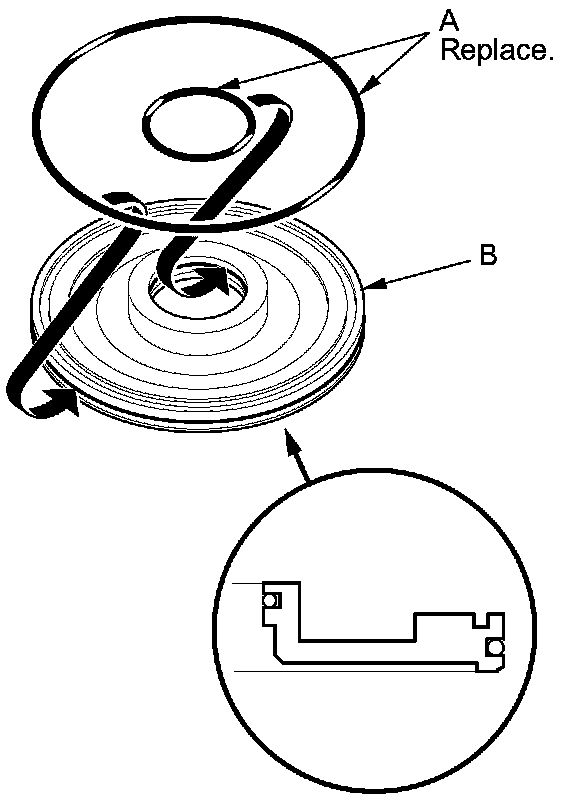

2. Install new O-rings (A) on the clutch piston (B). Do not twist the O-rings.

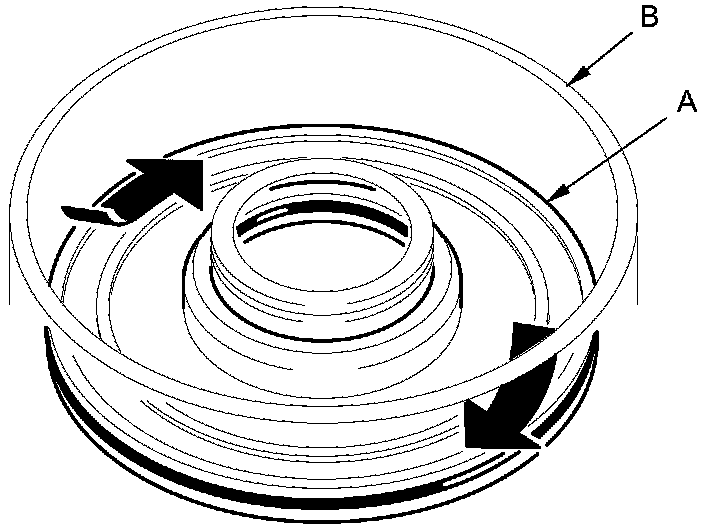

3. Install the clutch piston (A) in the clutch drum (B). Apply pressure and rotate to ensure proper seating. Lubricate the clutch piston O-ring with ATF before installing. Do not pinch the O-ring by installing the clutch piston with too much force.

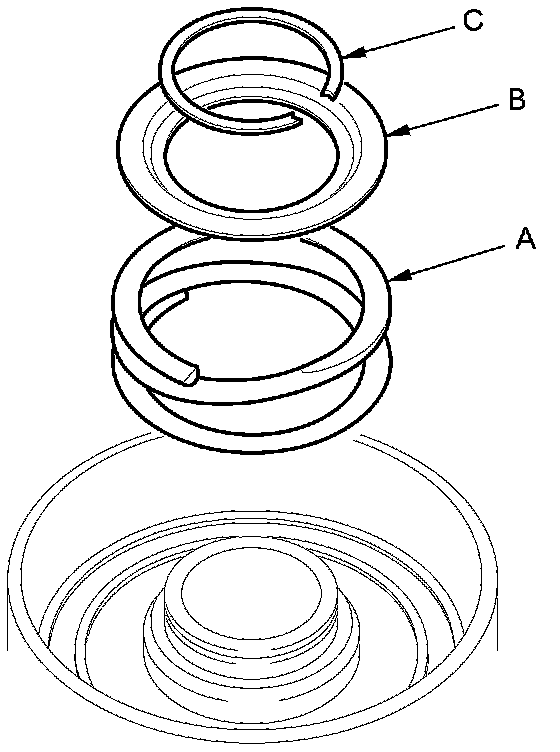

4. Set the return spring (A) and spring retainer (B) on the clutch piston, and position the snap ring (C) on the spring retainer.

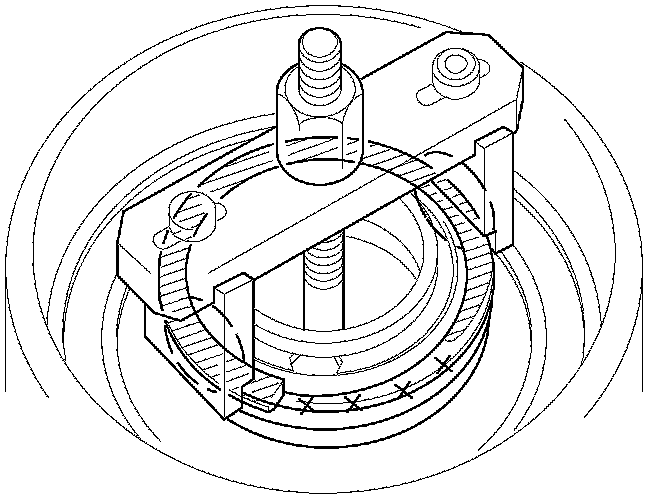

5. Install the clutch spring compressor set.

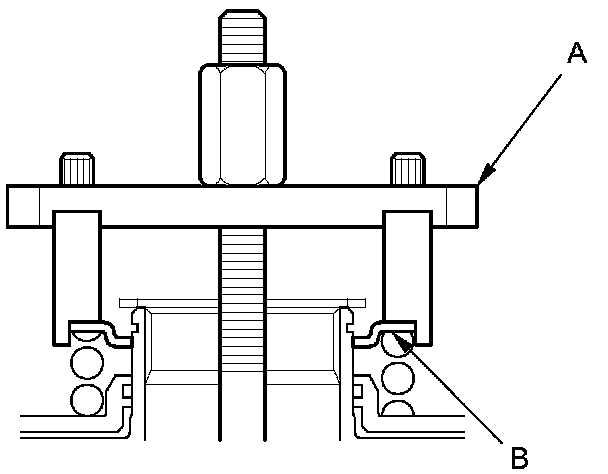

6. Be sure the clutch spring compressor attachment (A) is adjusted to have full contact with the spring retainer (B).






7. Check the placement of the clutch spring compressor attachment. If either end of the clutch spring compressor attachment is set over an area of the spring retainer that is unsupported by the return spring, reset the spring compressor attachment over the proper position.






8. Compress the return spring until the snap ring can be installed.

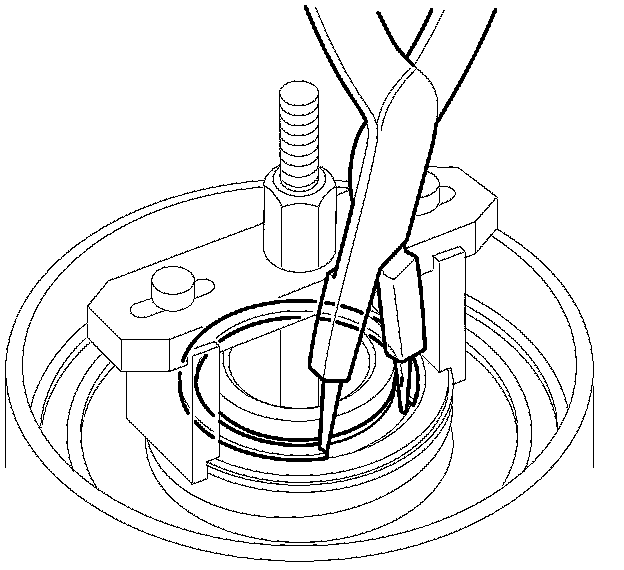

9. Install the snap ring using snap ring pliers.





10. Remove the clutch spring compressor set.

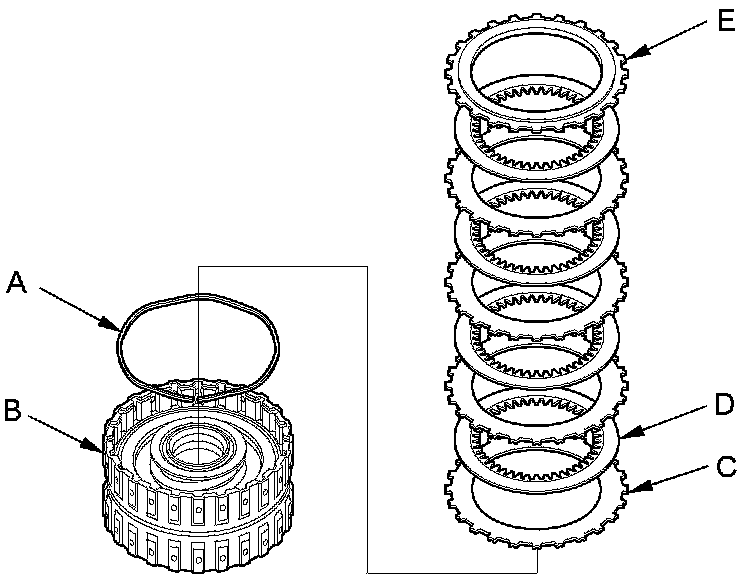

11. Install the wave spring (A) in the 4th clutch drum (B). Starting with the clutch wave-plate, alternately install the wave-plates (C) (4) and the clutch discs (D) (4). Install the clutch end-plate (E) with the flat side toward the top disc.

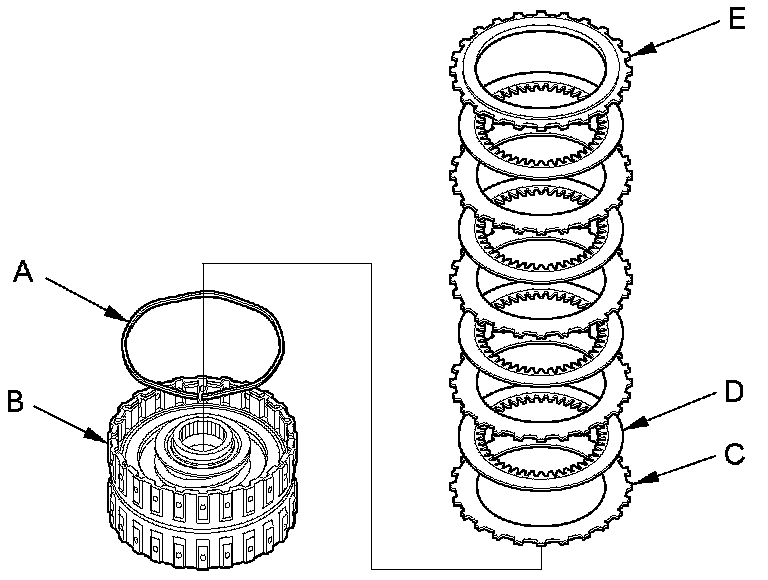

12. Install the wave spring (A) in the 5th clutch drum (B). Starting with the clutch wave-plate, alternately install the wave-plates (C) (4) and the clutch discs (D) (4). Install the clutch end-plate (E) with the flat side toward the top disc.

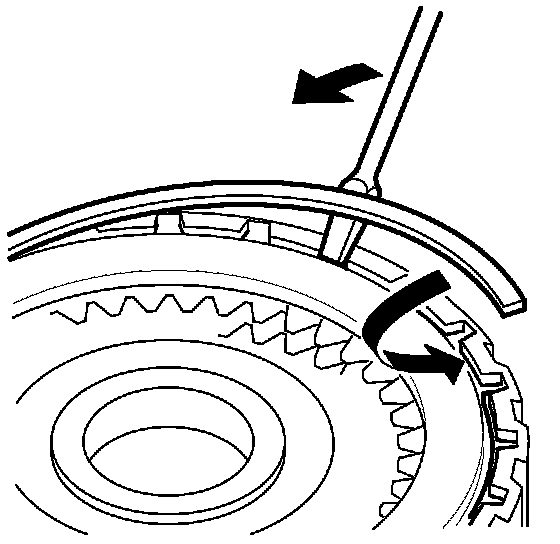

13. Install the snap ring using a screwdriver to secure the clutch end-plate.





14. Check that the clutch piston moves by applying air pressure into fluid passage.
