A/T Differential Carrier Bearing Outer Race Replacement

A/T Differential Carrier Bearing Outer Race Replacement

Special Tools Required

- Bearing Driver Attachment, 78 x 80 mm 07NAD-PX40100
- Bearing Driver Attachment, 72 x 75 mm 07746-0010600
- Driver Handle, 15 x 135L 07749-0010000

NOTE:

- The bearing and the bearing outer race should be replaced as a set.
- Replace the bearing with a new one whenever the outer race is replaced.
- Do not use the thrust shim on the torque converter housing.
- Adjust bearing preload after replacing the bearing and outer race.
- Coat all parts with ATF during installation.

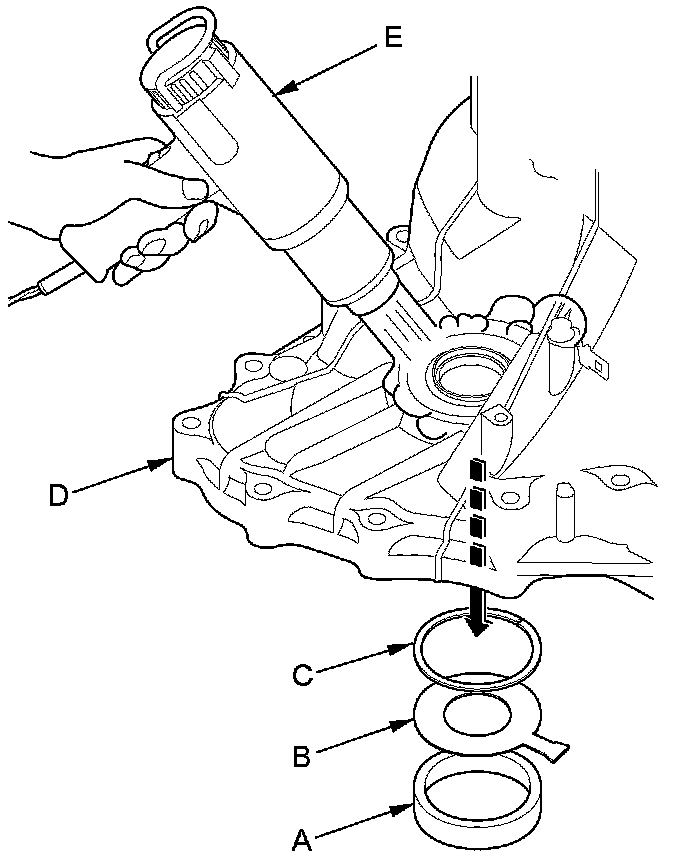

1. Remove the bearing outer race (A), the 76.2 mm spacer (B), and the 76 mm thrust shim (C) from the transmission housing (D) by heating the housing to about 212 °F (100 °C) using a heat gun (E). Do not heat the housing more than 212 °F (100 °C).

NOTE: Let the transmission housing cool to room temperature before installing the bearing outer race.

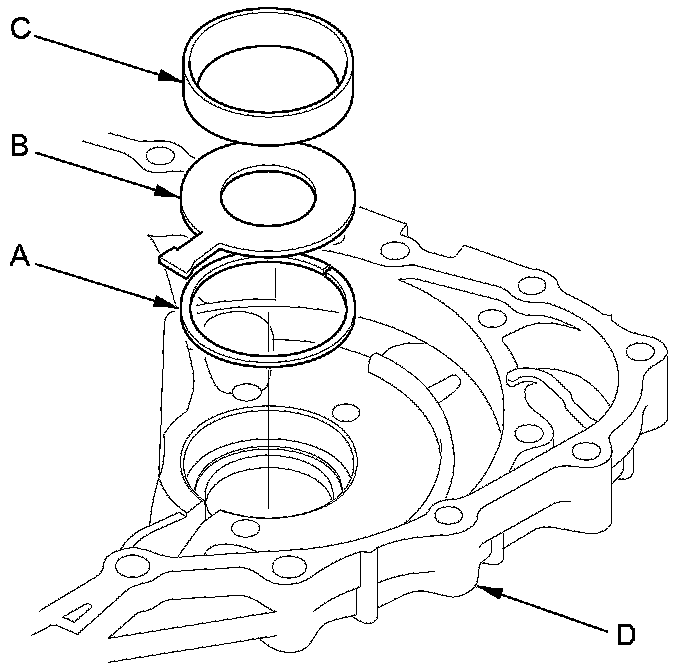

2. Install the 76 mm thrust shim (A), the 76.2 mm spacer (B), and a new bearing outer race (C) in the transmission housing (D).

NOTE: Be sure to install the 76.2 mm spacer with the "41382 RKY" mark facing downward.

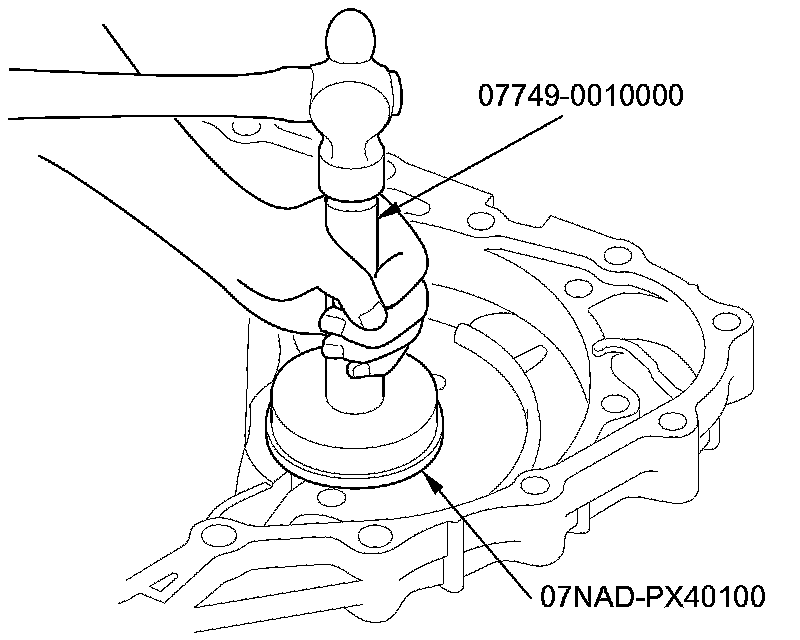

3. Drive the bearing outer race securely in the transmission housing using the driver handle (15 x 135L) and the attachment (78 x 80 mm) so there is no clearance between the outer race, the spacer, the shim, and the transmission housing.

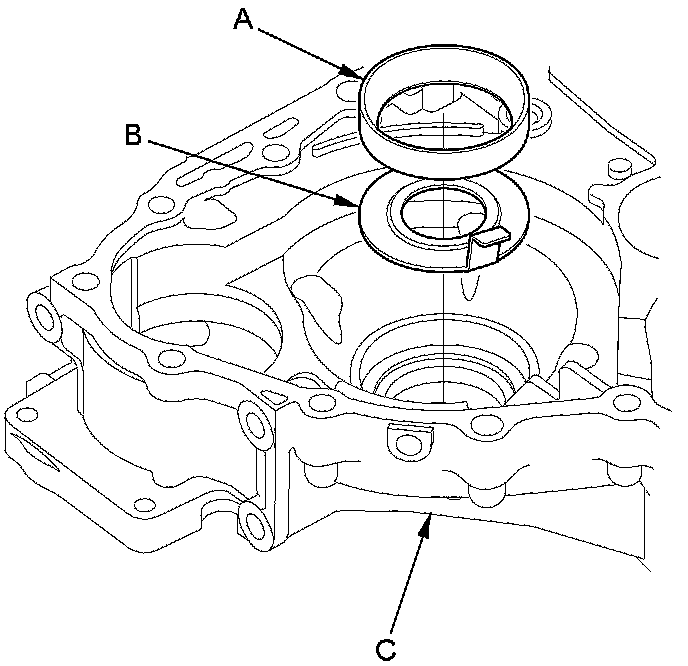

4. Remove the bearing outer race (A) and the 80 mm thrust washer (B) from the torque converter housing (C).





5. Install the 80 mm thrust washer and a new bearing outer race in the torque converter housing.

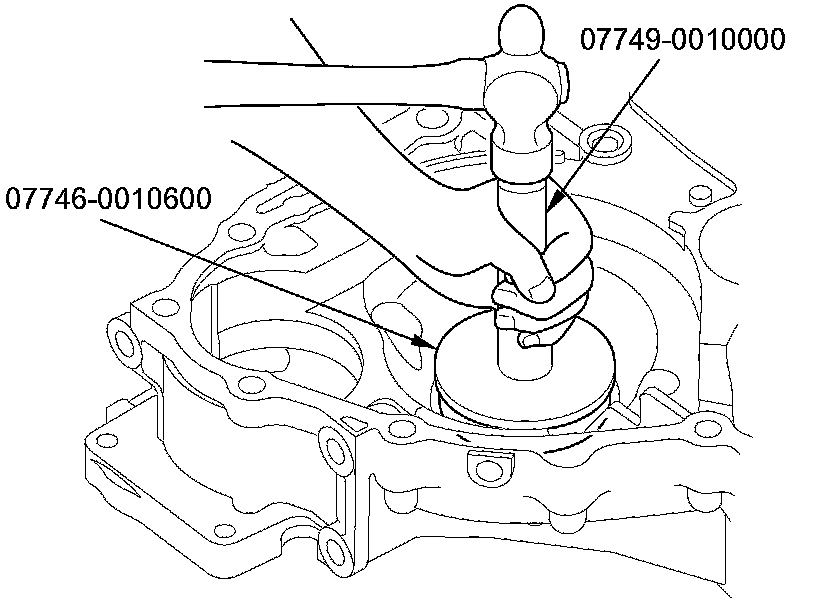

6. Drive the bearing outer race securely in the torque converter housing using the driver handle (15 x 135L) and the attachment (72 x 75 mm).
