Torque Converter Housing Countershaft Bearing Replacement

Torque Converter Housing Countershaft Bearing Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 62 x 68 mm 07746-0010500

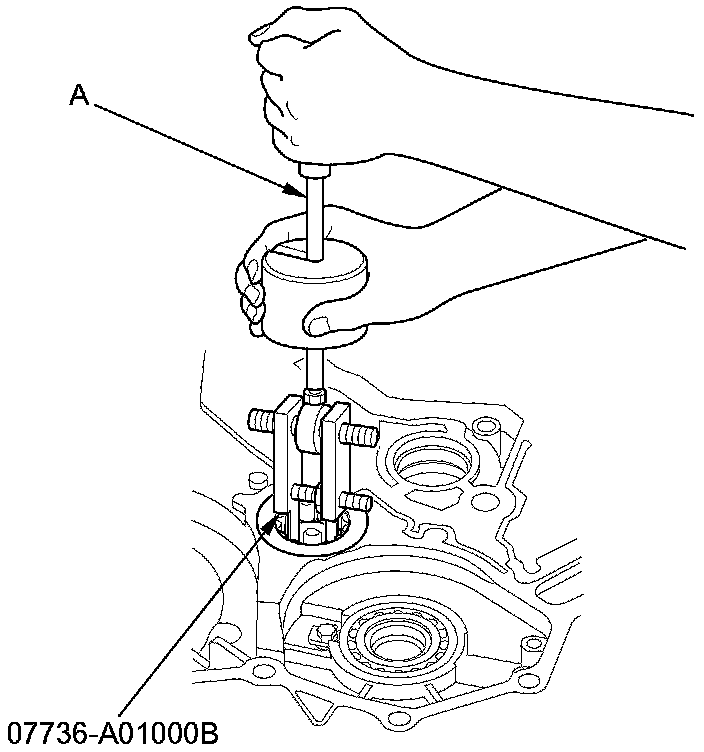

1. Remove the countershaft bearing from the torque converter housing using the adjustable bearing puller (25 - 40 mm) and a commercially available 3/8 "-16 slide hammer (A).






2. Remove the ATF guide plate (A), and check it for wear and damage. If the guide plate is worn or damaged, replace it.

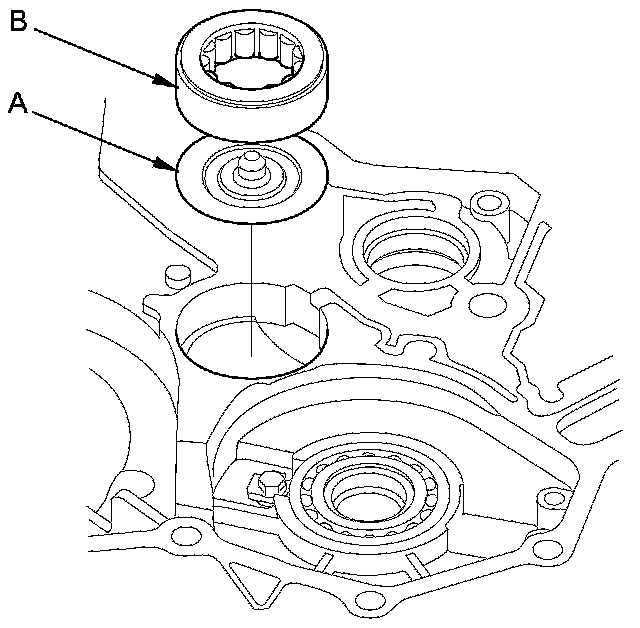

3. Install the ATF guide plate in the torque converter housing, and install a new countershaft bearing (B).

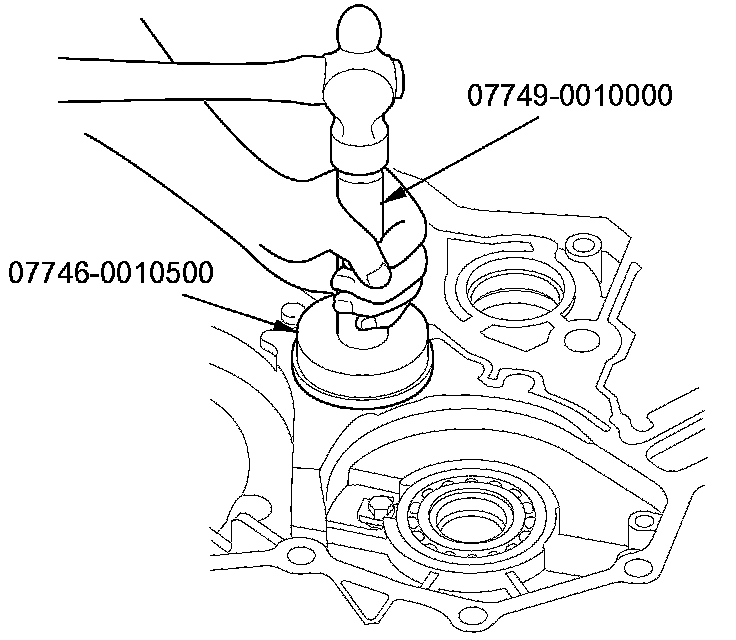

4. Install the countershaft bearing securely in the torque converter housing using the driver handle (15 x 135L) and the attachment (62 x 68 mm).

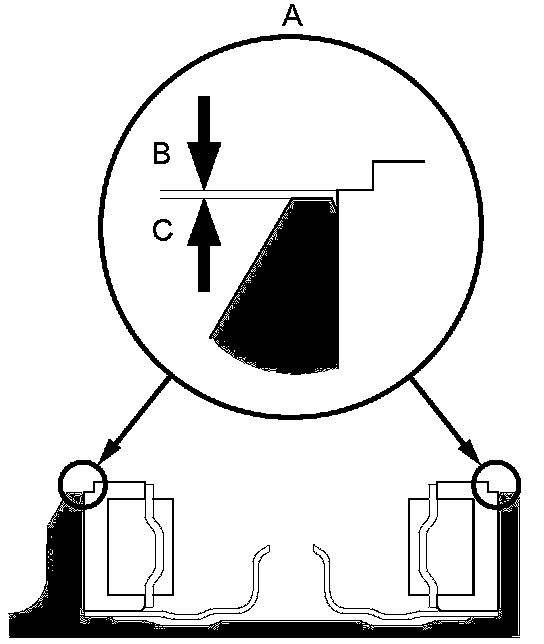

5. Make sure that the bearing outer race notch-cut (A) is installed at a height of 0-0.05 mm (0-0.002 in) (B) above the torque converter housing surface (C). Do not install the bearing higher than 0.05 mm (0.002 in) above the torque converter housing surface.
