Torque Converter Housing Main shaft Bearing And Oil Seal Replacement

Torque Converter Housing Mainshaft Bearing and Oil Seal Replacement

Special Tools Required

- Adjustable Bearing Puller, 25-40 mm 07736-A01000B
- Attachment, 62 x 68 mm 07746-0010500
- Attachment, 72 x 75 mm 07746-0010600
- Driver Handle, 15 x 135L 07749-0010000

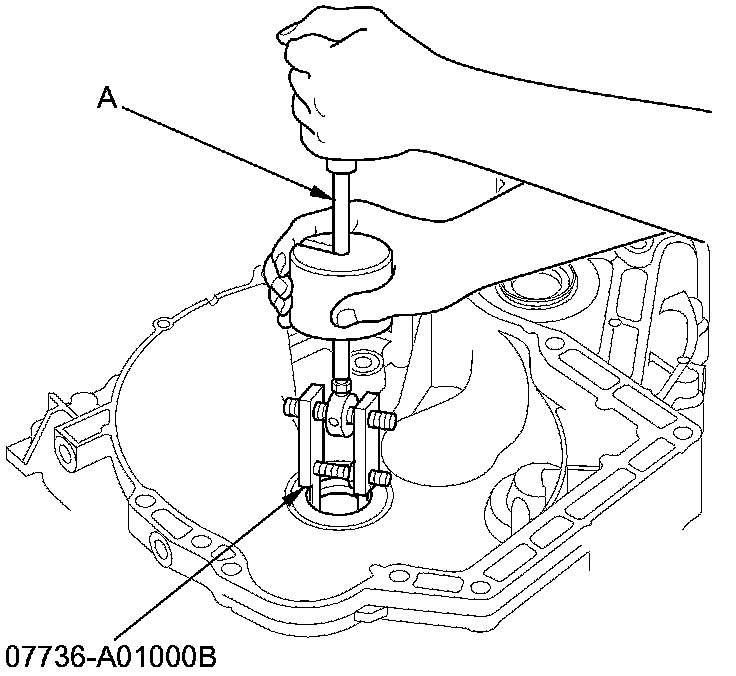

1. Remove the mainshaft bearing and the oil seal from the torque converter housing using the adjustable bearing puller (25 - 40 mm) and a commercially available 3/8 "-16 slide hammer (A).

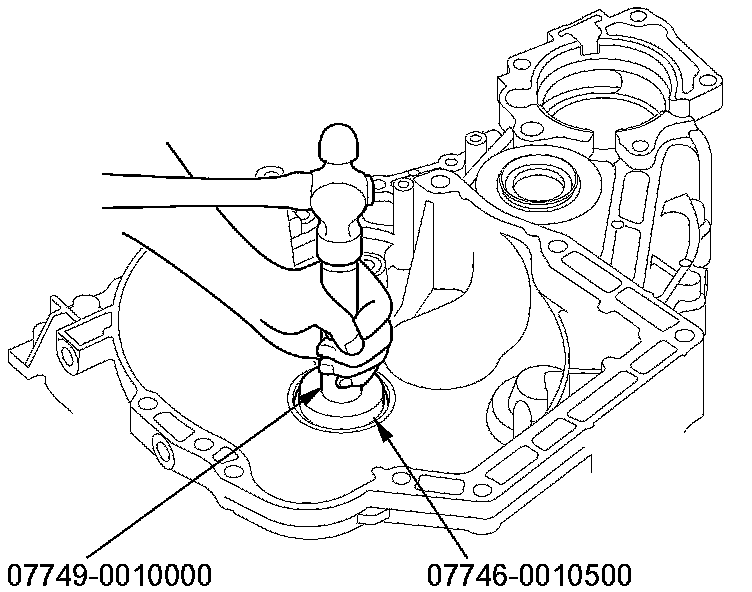

2. Install a new mainshaft bearing until it bottoms in the torque converter housing using the driver handle (15 x 135L) and the attachment (62 x 68 mm).

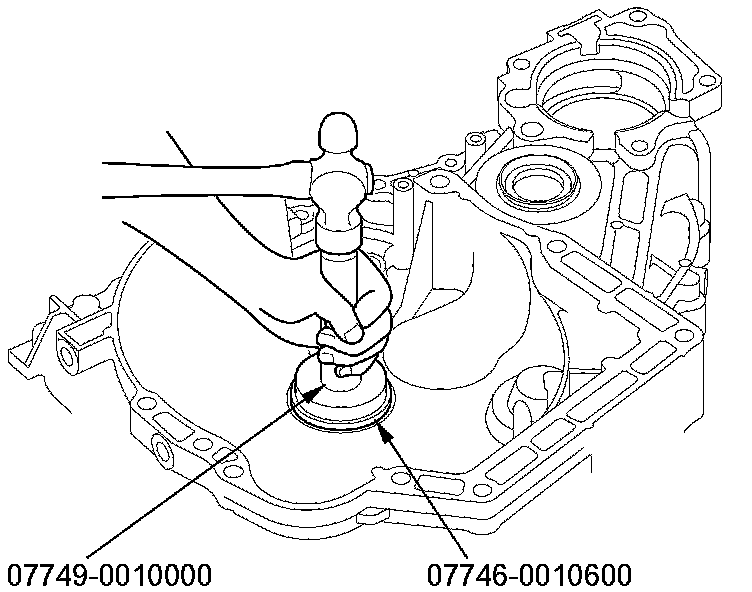

3. Install a new oil seal flush to the torque converter housing using the driver handle (15 x 135L) and the attachment (72 x 75 mm).

NOTE: Do not drive the oil seal into the torque converter housing until it bottoms out, it will block the fluid return passage and cause transmission damage.
