Transmission End Cover Removal

Transmission End Cover Removal

Special Tools Required

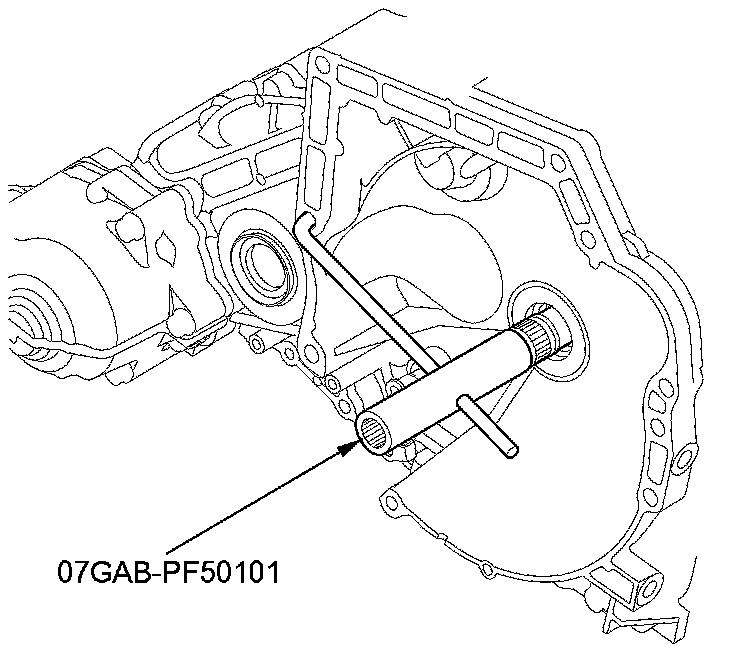

- Mainshaft Holder 07GAB-PF50101

NOTE: The illustration shows the 4WD transmission; the 2WD is similar.

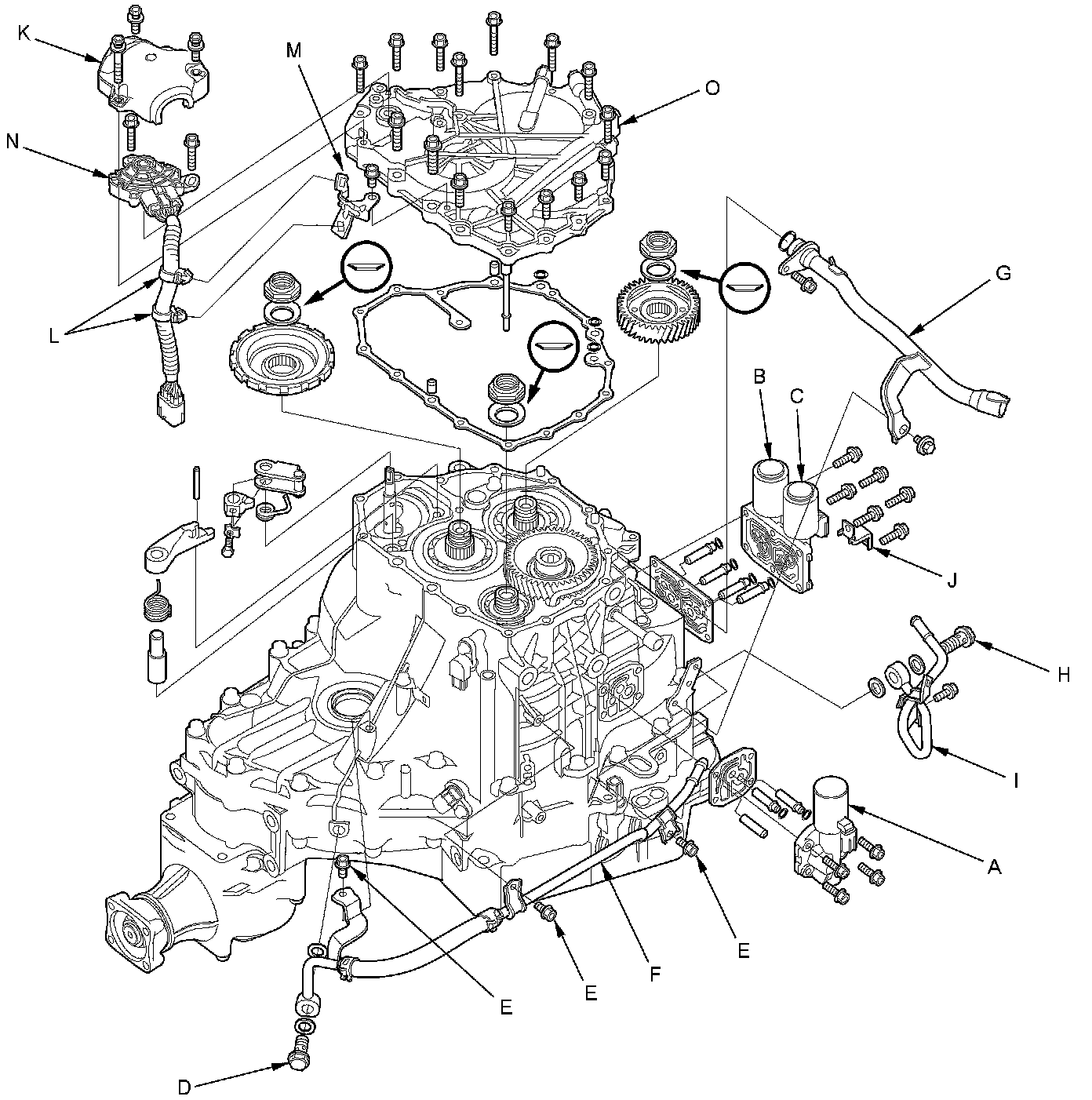

1. Remove the ATF cooler inlet line banjo bolt (D), the sealing washers, and the ATF inlet line bracket bolts (E), and remove the ATF cooler inlet line (F).





2. Remove the ATF dipstick guide tube (G).

3. Remove the ATF cooler outlet line banjo bolt (H) and the sealing washers, and remove the ATF cooler outlet line (I).

4. Remove A/T clutch pressure control solenoid valve A, the ATF joint pipes, the O-rings, the ATF pipe, and the gasket.

5. Remove A/T clutch pressure control solenoid valve B and C, the harness clamp bracket (J), the ATF joint pipes, the O-rings, and the gasket.

6. Remove the transmission range switch cover (K).

7. Remove the transmission range switch harness clamps (L) from the clamp bracket (M), and remove the transmission range switch (N).

8. Remove the harness clamp bracket from the end cover (O).

9. Remove the end cover, the dowel pins, the O-rings, and the end cover gasket.

10. Slip the mainshaft holder onto the mainshaft.





11. Engage the park pawl with the park gear.

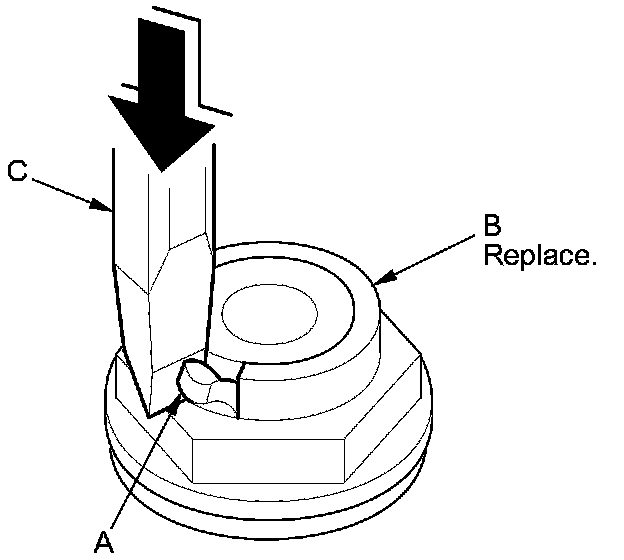

12. Cut the lock tab (A) off each shaft locknut (B) using a chisel (C). Then remove the locknuts and the conical spring washers from each shaft.

NOTE:

- Countershaft and secondary shaft locknuts have left-hand threads.
- Keep all of the chiseled particles out of the transmission.
- Clean the old mainshaft and the countershaft locknuts; they are used to install the press fit idler gear on the mainshaft, and the park gear on the countershaft.





13. Remove the mainshaft holder from the mainshaft.

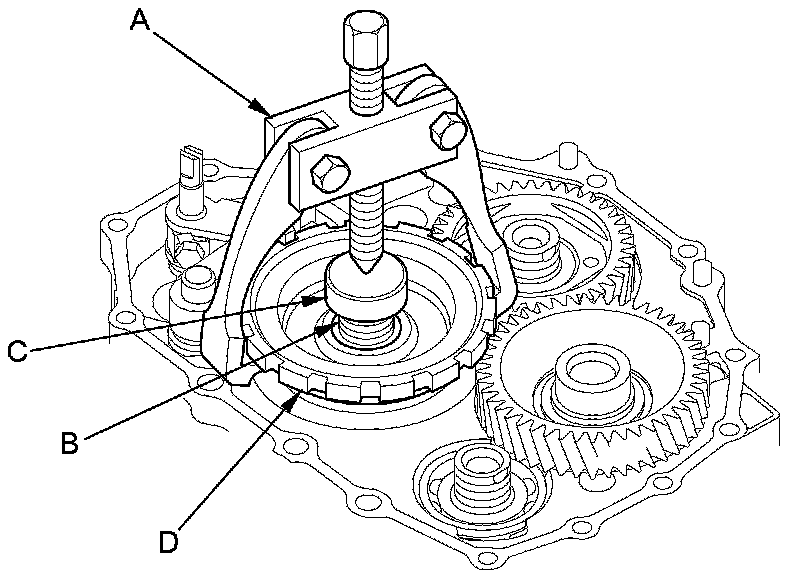

14. Set a two-jaw (or three-jaw) puller (A) on the countershaft (B) with a spacer (C) between the puller and the countershaft, then remove the park gear (D).

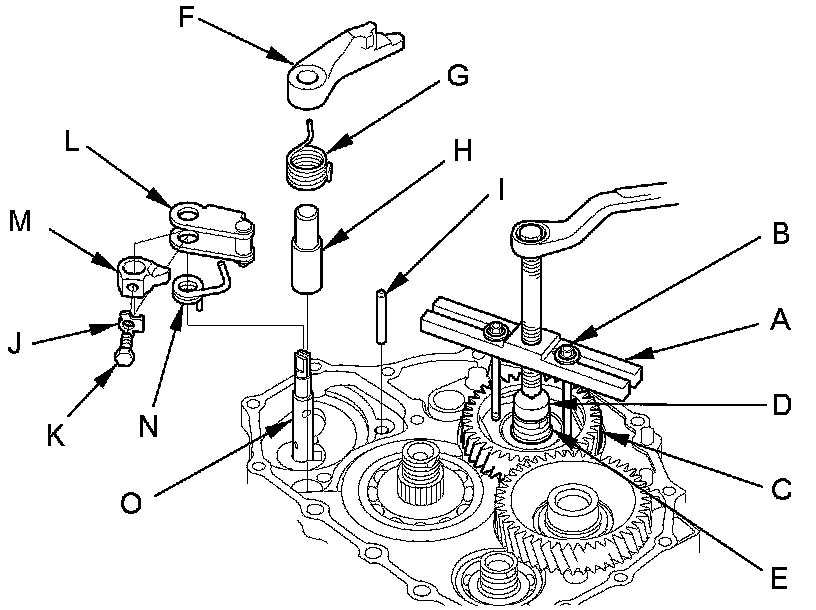

15. Install a puller (A) with two 6 x 1.0 mm bolts (B) on the mainshaft idler gear (C). Set a spacer (D) between the puller and the mainshaft (E), then remove the mainshaft idler gear.





16. Remove the park pawl (F), the park pawl spring (G), the park pawl shaft (H), and the stop shaft (I).

17. Pry the lock tap of the lock washer (J), and remove the bolt (K) and the lock washer.

18. Remove the park lever (L), the park lever stop (M), and park lever spring (N) from the control shaft (O).
