Transmission End Cover Selector Control Shaft Oil Seal Replacement

Transmission End Cover Selector Control Shaft Oil Seal Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Bearing Driver Attachment, 22 x 24 mm 07746-0010800

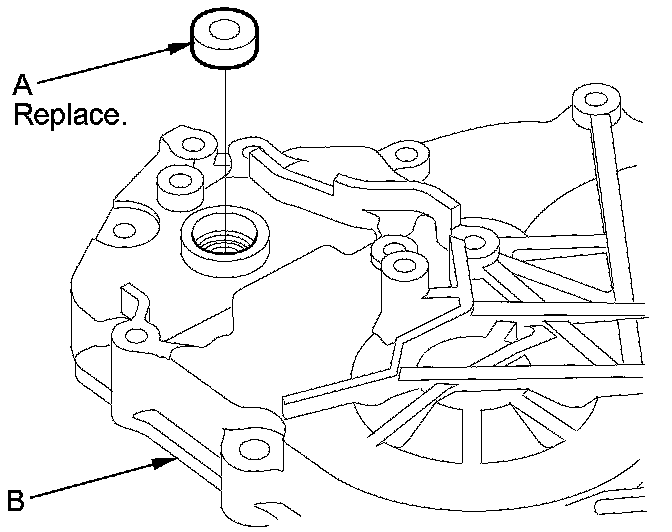

1. Remove the oil seal (A) from the end cover (B).

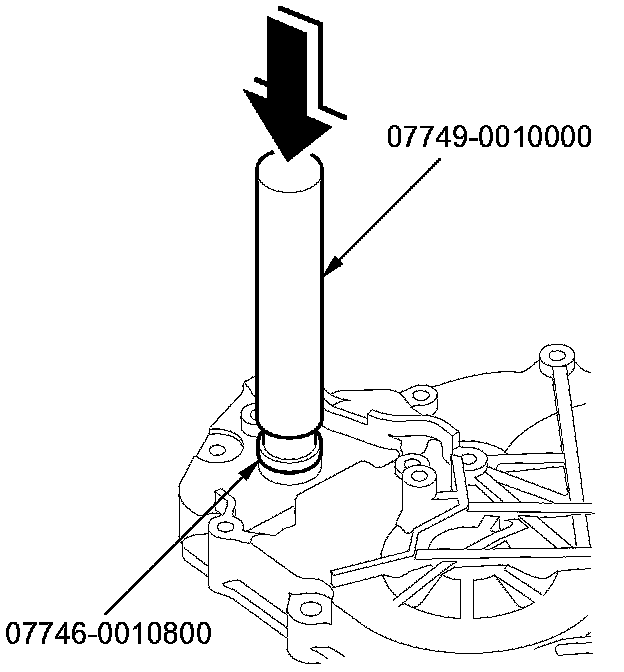

2. Install a new oil seal flush to the end cover using the driver handle (15 x 135L) and the attachment (22 x 24 mm).
