A/T Shift Lever Installation

A/T Shift Lever Installation

1. Cover the opening of the dashboard with tape to prevent damage to the dashboard.

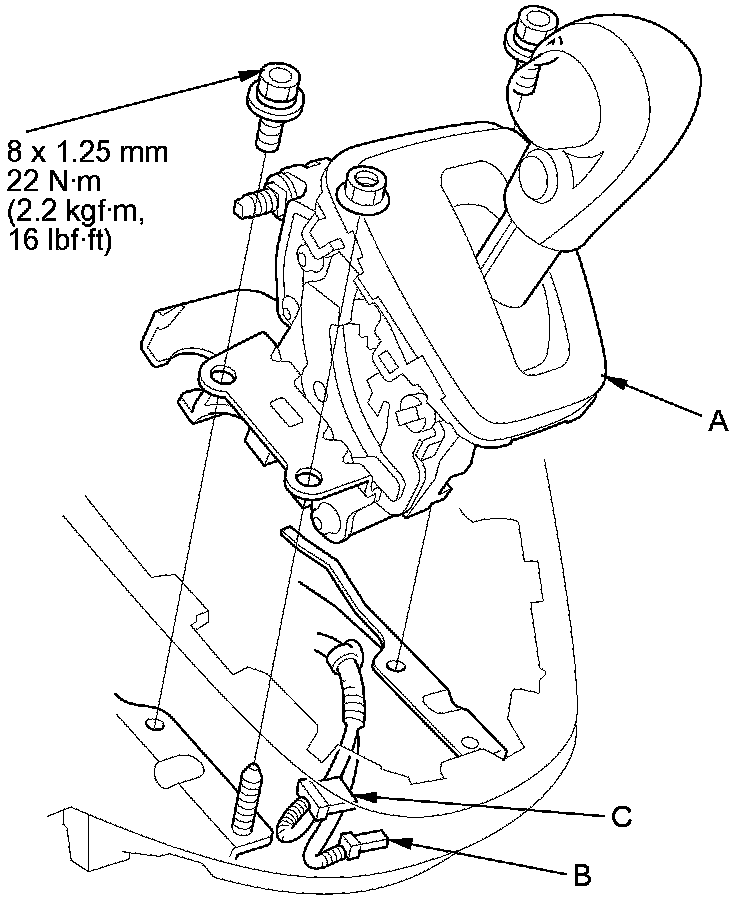

2. Install the shift lever assembly (A) in the dashboard.





3. Connect the shift lock solenoid connector (B) and the D3 switch/park pin switch/A/T gear position indicator panel light connector (C).

4. Install the shift cable on the shift lever, and adjust the shift cable Adjustments.
