Rear Differential Fluid Inspection And Replacement

Rear Differential Fluid Inspection and Replacement

Inspection

1. Raise and support the vehicle Service and Repair.

2. Use solvent and a brush to wash any oil and dirt off the filler plug, and dry them with compressed air.

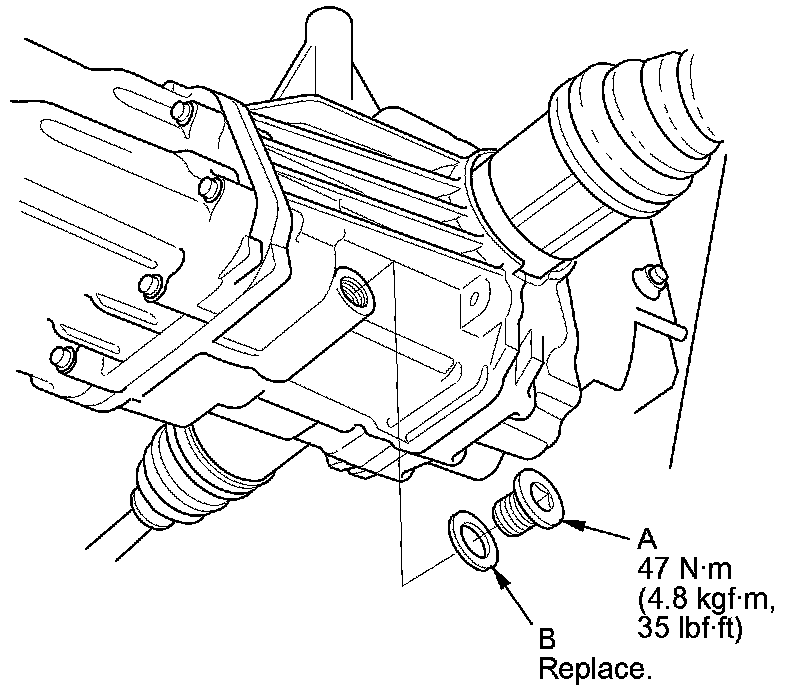

3. Remove the filler plug (A) and the sealing washer (B), then check the condition of the fluid, and make sure the fluid is at the proper level (C).

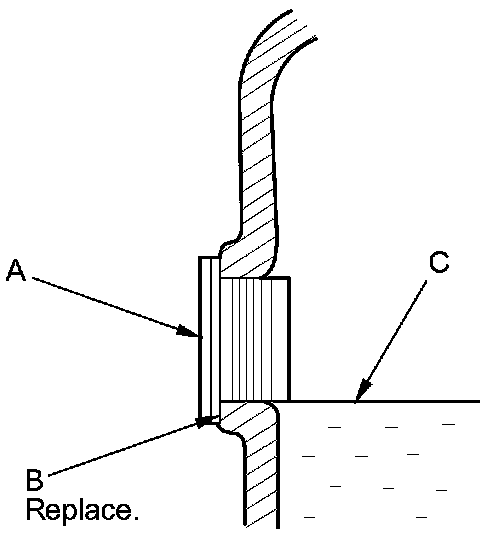

4. The fluid level must reach up to the bottom of the filler plug hole. If it is below the hole, add the recommended fluid until it runs out, then reinstall the filler plug with a new sealing washer.

Replacement

1. Raise and support the vehicle Service and Repair.

2. Remove the filler plug (A) and the sealing washer (B).

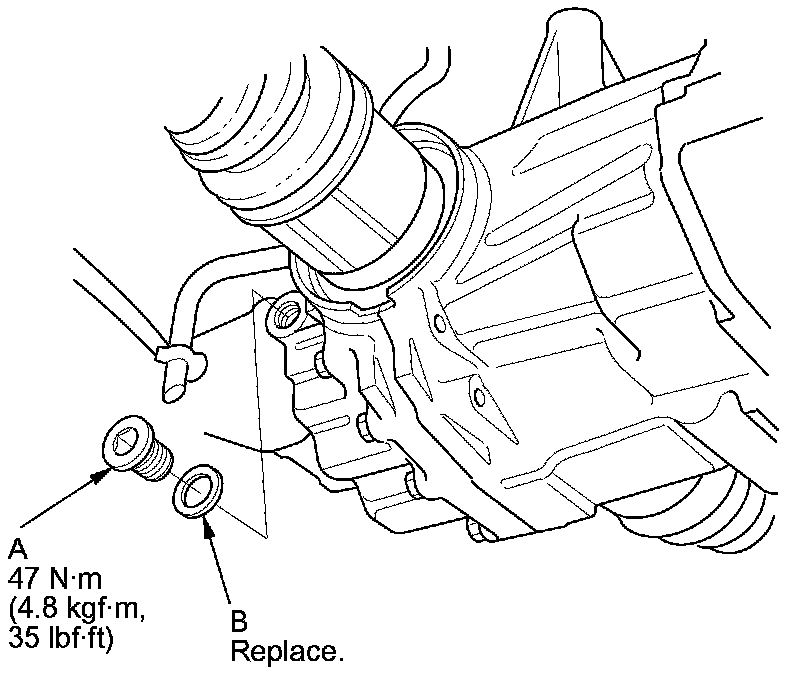

3. Remove the drain plug (A) and the sealing washer (B), then drain the fluid.

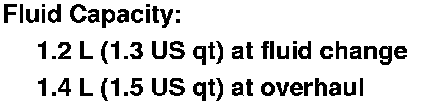

4. Clean the drain plug, then reinstall it with a new sealing washer, and refill the differential with the recommended fluid to the proper level.

NOTE: If you disassemble the differential, check the fluid level again after the 4WD system check is finished. Add fluid if necessary.









5. Reinstall the filler plug with a new sealing washer.
