Rear Driveshaft Installation

Rear Driveshaft Installation

NOTE: Before starting installation, make sure the mating surfaces of the joint and the splined section are clean.

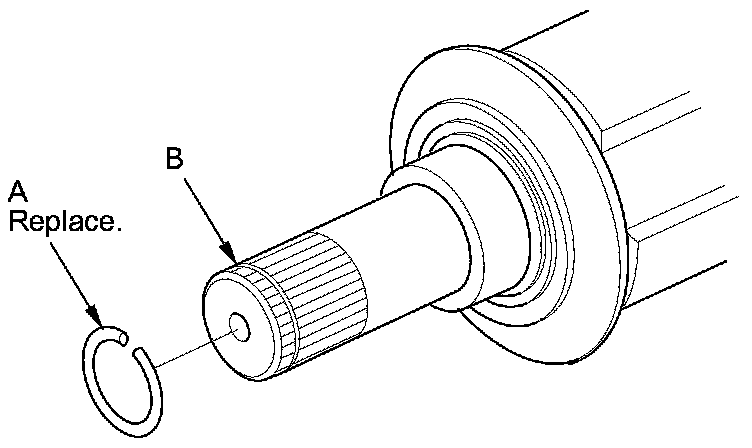

1. Install a new set ring (A) onto the set ring groove (B) of the rear driveshaft inboard joint.

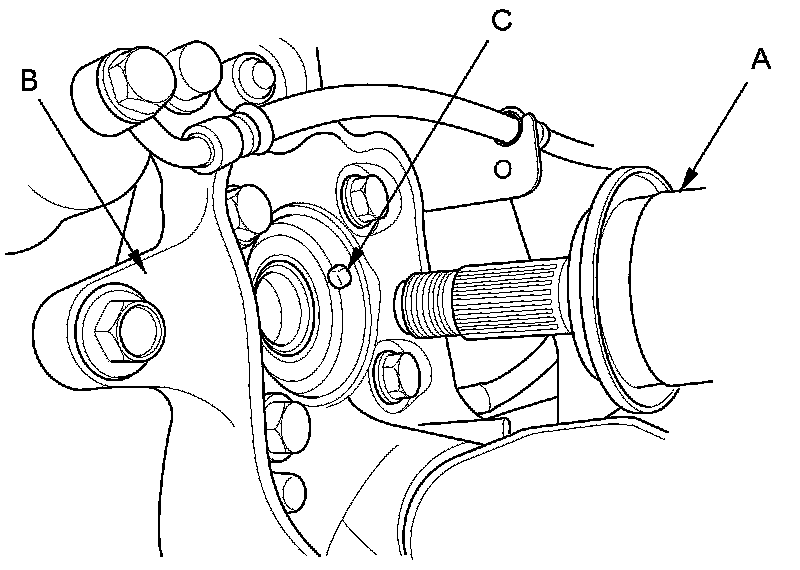

2. Install the outboard joint (A) into the rear hub (B).

NOTE: Be careful not to damage the wheel speed sensor (C).





3. Clean the areas where the driveshaft contacts the differential thoroughly with solvent, and dry with compressed air.

NOTE: Do not wash the rubber parts with solvent.

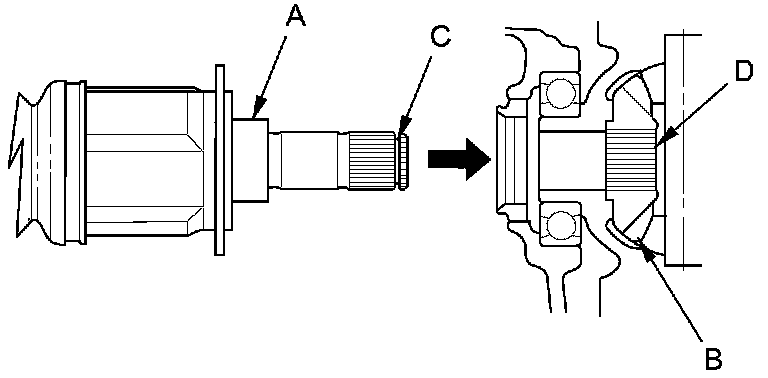

4. Insert the inboard end (A) of the driveshaft into the differential (B) until the set ring (C) locks in the groove (D).

NOTE: Insert the driveshaft horizontally to prevent damaging the oil seal.





5. Install the rear differential Rear Differential Installation.

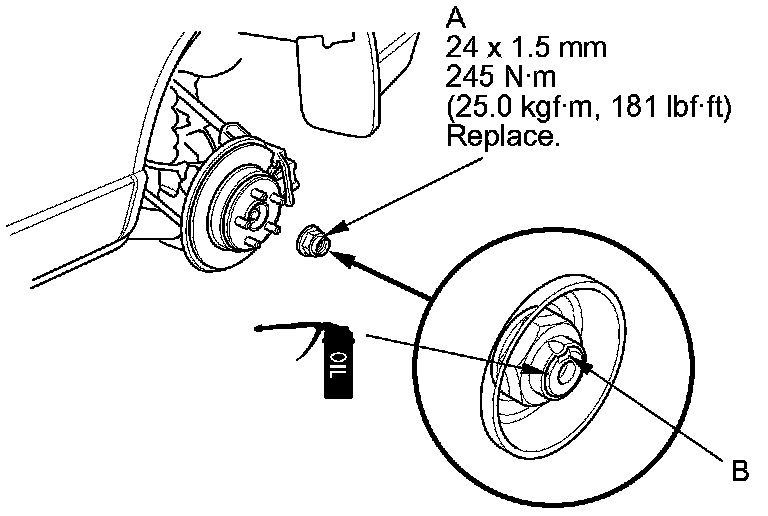

6. Apply a small amount of engine oil to the seating surface of a new spindle nut (A).





7. Install the new spindle nut, then tighten it. After tightening, use a drift to stake the spindle nut shoulder (B) against the driveshaft.

8. Clean the mating surfaces of the brake discs and the rear wheels, then install the rear wheels.

9. Turn the rear wheel by hand, and make sure there is no interference between the driveshaft and the surrounding parts.

10. Refill the differential fluid Rear Differential Fluid Inspection And Replacement.

11. Lower the vehicle.

12. Test-drive the vehicle.
