Transfer Holder Roller Bearing Replacement

Transfer Holder Roller Bearing Replacement

Special Tools Required

- Bearing Driver Attachment, 62 x 68 mm 07746-0010500
- Driver Handle, 15 x 135L 07749-0010000

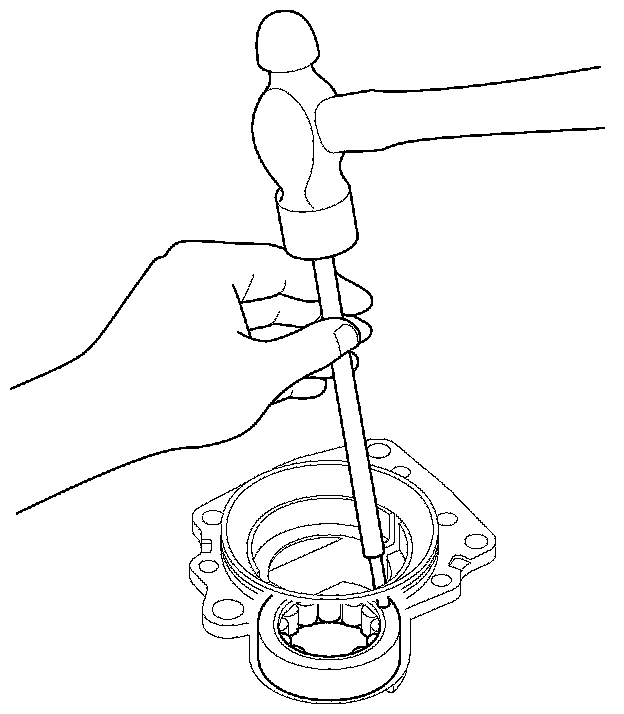

1. Remove the roller bearing from the transfer holder.






2. Install a new roller bearing in the transfer holder using the driver handle (15 x 135L) and the attachment (62 x 68 mm).
