Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation

Transfer Holder Tapered Roller Bearing Outer Race Removal/Installation

Special Tools Required

- Bearing Driver Attachment, 72 x 75 mm 07746-0010600
- Driver Handle, 15 x 135L 07749-0010000

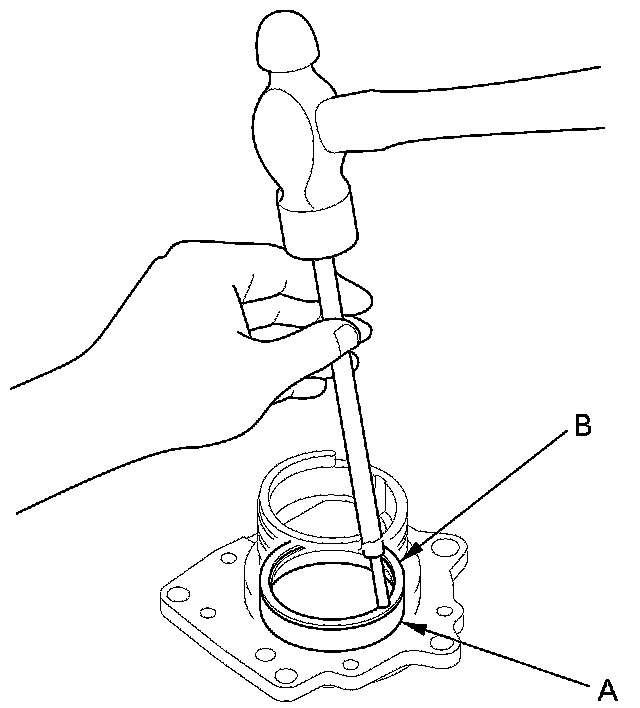

1. Remove the tapered roller bearing outer race (A) and the 75 mm thrust shim (B) from the transfer holder.

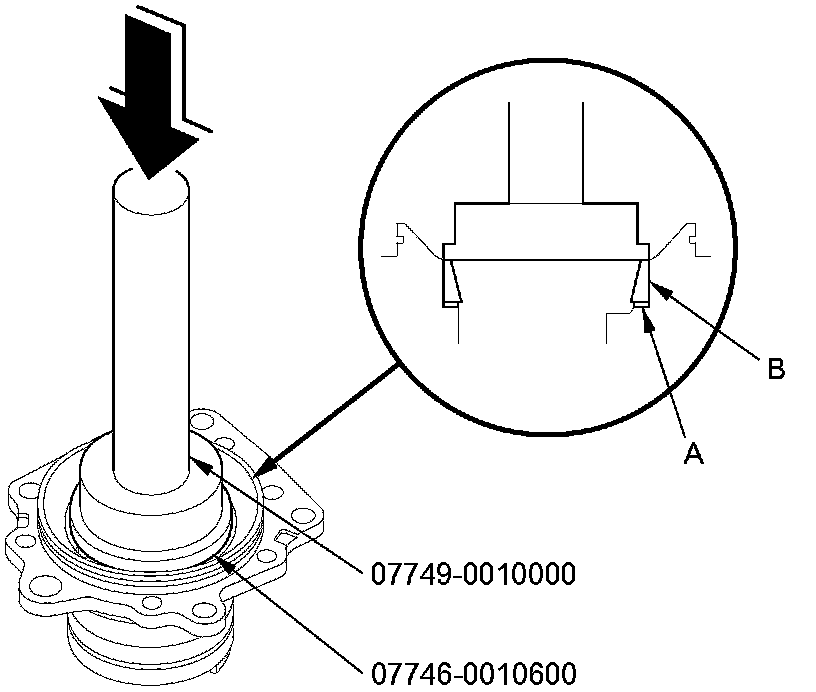

2. Install the 75 mm thrust shim (A) in the transfer holder, then install the tapered roller bearing outer race (B) using the driver handle (15 x 135L) and the attachment (72 x 75 mm).
