Transfer Output Shaft Bearing Removal/Installation

Transfer Output Shaft Bearing Removal/Installation

Special Tools Required

- Driver Handle, 40 mm I.D. 07746-0030100
- Driver, Inner 35 mm I.D. 07746-0030400

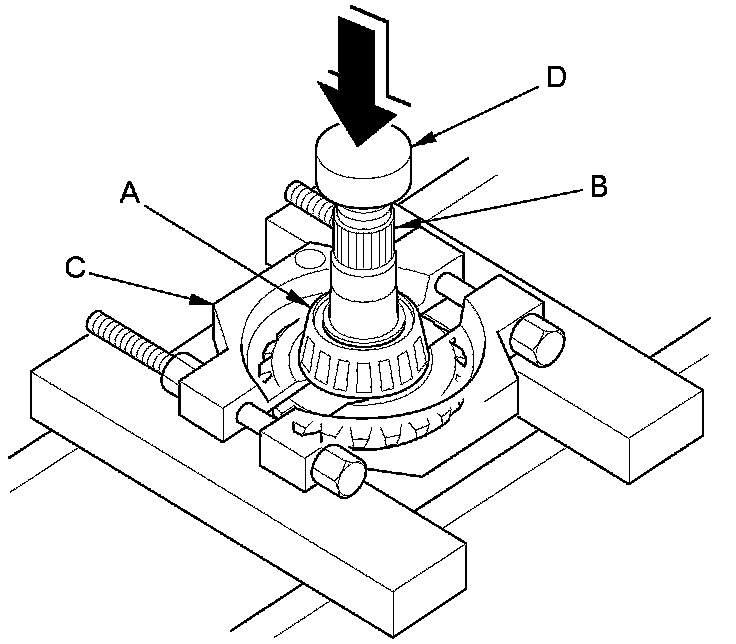

1. Remove the tapered roller bearing (A) from the transfer output shaft (hypoid gear) (B) using a bearing separator (C) and a press. Place a shaft protector (D) between the transfer output shaft (hypoid gear) and the press to prevent damaging the transfer output shaft (hypoid gear).






2. Install the 35 mm thrust shim (A) on the transfer output shaft (hypoid gear) (B).

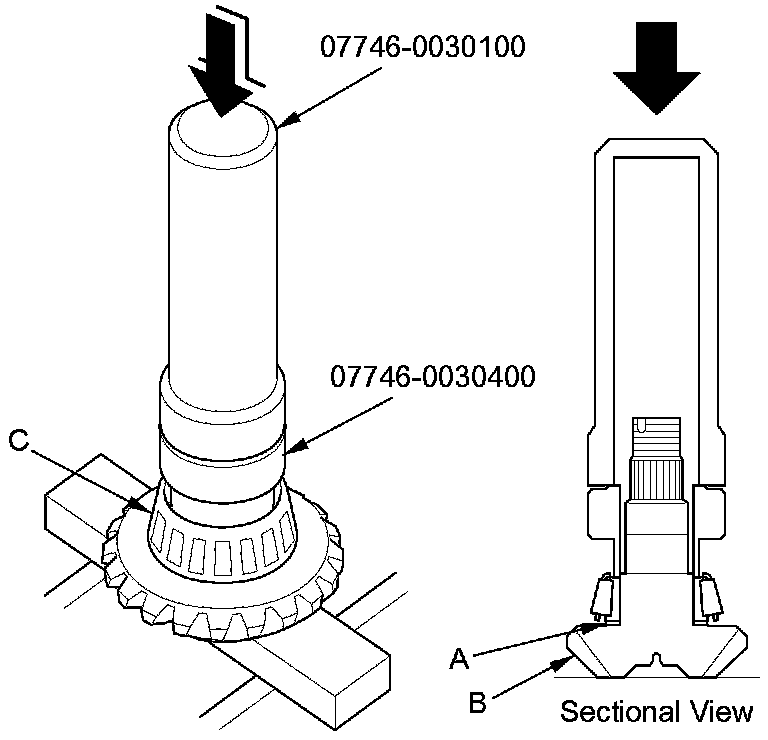

3. Install the tapered roller bearing (C) on the transfer output shaft (hypoid gear) using the driver handle (40 mm I.D.), the attachment (35 mm I.D.), and the press.
