Passenger's Power Window Motor Test

Passenger's Power Window Motor Test

1. Remove the door panel Service and Repair, and disconnect the connector.

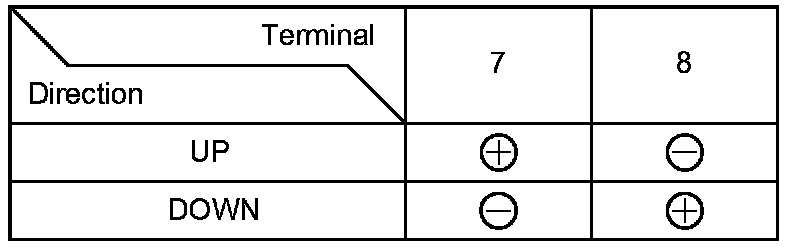

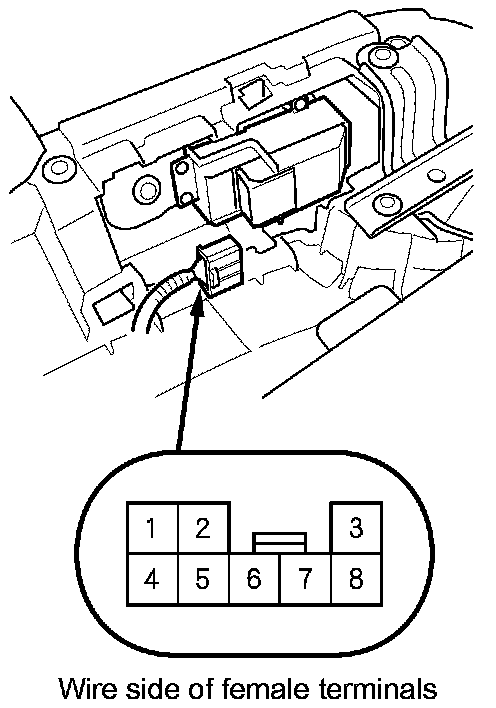

2. Test the motor in each direction by connecting battery power and ground to the passenger's power window switch 8P connector according to the table.









3. If the motor does not run or fails to run smoothly, go to step 4. If the motor is OK, do the power window master switch input test. Power Window Master Switch Input Test

4. Disconnect the 2P connector from the passenger's power window motor.

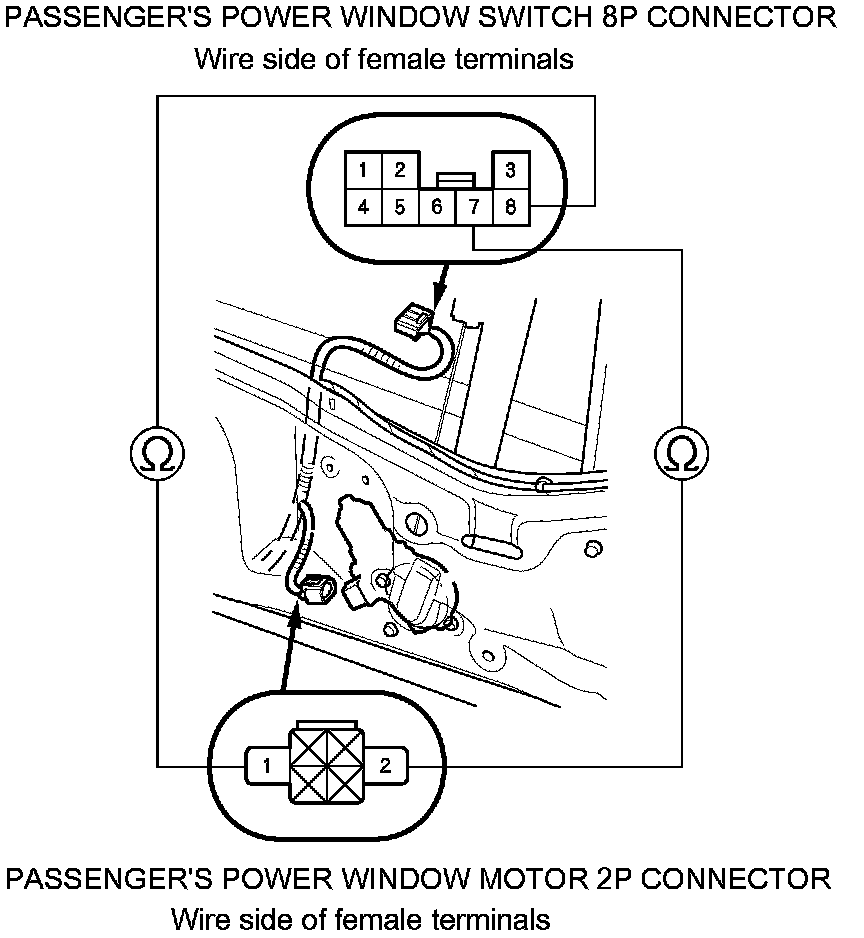

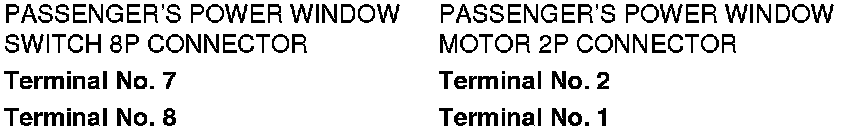

5. Check for continuity between the passenger's power window switch 8P connector terminals No. 7 and No. 8 and the passenger's power window motor 2P connector terminals No. 1 and No. 2.









6. If the wire harness is OK, replace the appropriate power window motor.
