Power Window Master Switch Test

1. Remove the driver's door panel Service and Repair.

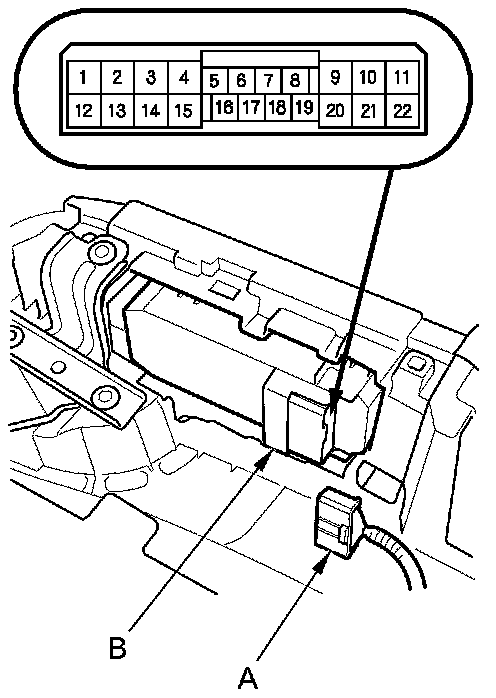

2. Disconnect the 22P connector (A) from the power window master switch (B).






3. Check for continuity between the terminals in each switch position according to the tables.

Driver's Switch

The driver's switch is combined with the control unit, so you cannot isolate the switch to test it.

Instead, run the power window master switch input test procedures. Power Window Master Switch Input Test If the tests are normal, the driver's switch is faulty. Replace the switch Service and Repair.

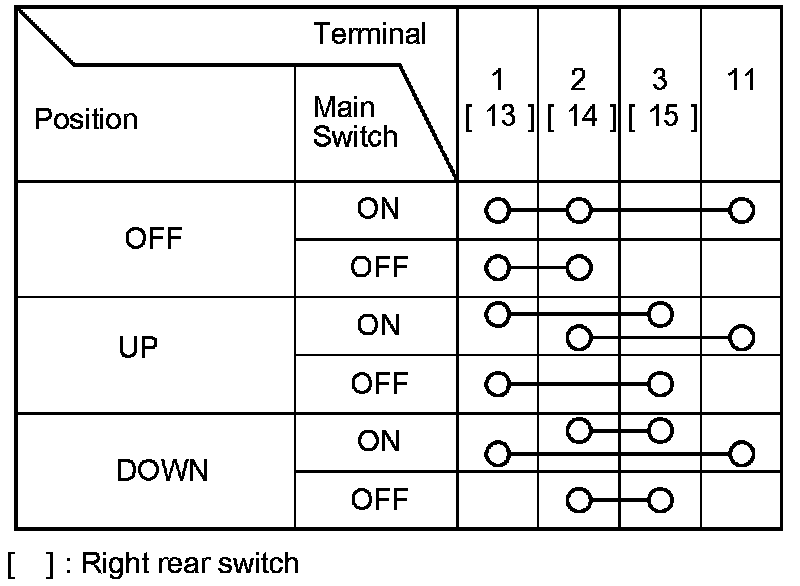

Front Passenger's Switch and Right Rear Switch





Left Rear Switch





4. If the continuity is not as specified, replace the switch Service and Repair.
