DTC Troubleshooting
DTC Troubleshooting: P0498, P0498
DTC P0498:
EVAP Canister Vent Shut Valve Circuit Low Voltage
NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information Initial Inspection and Diagnostic Overview.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0498 indicated?
YES -
Go to step 6.
NO -
Go to step 4.
4. Select EVAP CVS ON in the INSPECTION MENU with the HDS.
5. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0498 indicated?
YES -
Go to step 6.
NO -
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the EVAP canister vent shut valve and the ECM/PCM.�
6. Turn the ignition switch to LOCK (0).
7. Disconnect the EVAP canister vent shut valve 2P connector.

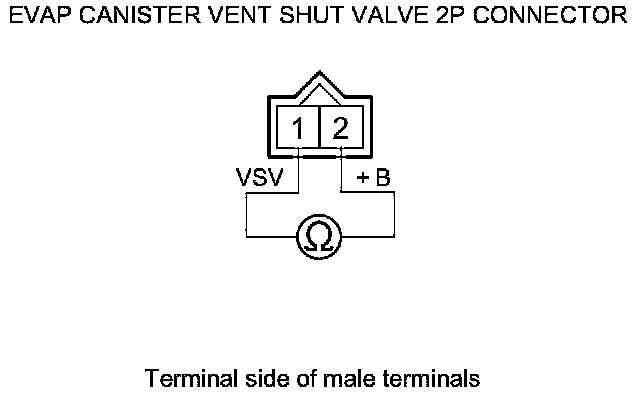

8. At the valve side, measure the resistance between EVAP canister vent shut valve 2P connector terminals No. 1 and No. 2.
Is there about 25-30 Ohms at room temperature?
YES -
Go to step 9.
NO -
Go to step 12.
9. Jump the SCS line with the HDS.
10. Disconnect ECM/PCM connector E (31P).

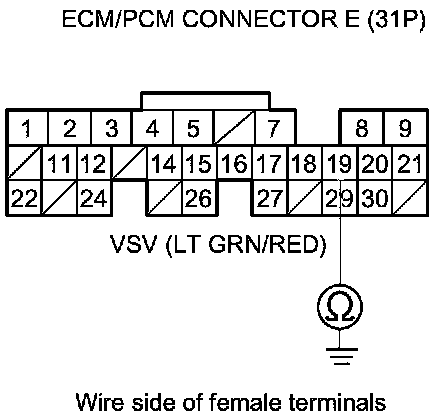

11. Check for continuity between ECM/PCM connector terminal E19 and body ground.
Is there continuity?
YES -
Repair short in the wire between the EVAP canister vent shut valve and the ECM/PCM (E19), then go to step 13.
NO -
Go to step 21.
12. Replace the EVAP canister vent shut valve Service and Repair.
13. Reconnect ECM/PCM connector E (31P).
14. Reconnect the EVAP canister vent shut valve 2P connector.
15. Turn the ignition switch to ON (II).
16. Reset the ECM/PCM with the HDS.
17. Do the ECM/PCM idle learn procedure ECM/PCM Idle Learn Procedure.
18. Select EVAP CVS ON in the INSPECTION MENU with the HDS.
19. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0498 indicated?
YES -
Check for poor connections or loose terminals at the EVAP canister vent shut valve and the ECM/PCM, then go to step 1.
NO -
Go to step 20.
20. Monitor the OBD STATUS for DTC P0498 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES -
Troubleshooting is complete. If any other Pending or Confirmed DTCs were indicated in step 19, go to the indicated DTC's troubleshooting.�
NO -
If the screen indicates FAILED, check for poor connections or loose terminals at the EVAP canister vent shut valve and the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, go to step 18.
21. Reconnect all connectors.
22. Update the ECM/PCM if it does not have the latest software ECM/PCM Update, or substitute a known-good ECM/PCM.
23. Select EVAP CVS ON in the INSPECTION MENU with the HDS.
24. Check for Pending or Confirmed DTCs with the HDS.
Is DTC P0498 indicated?
YES -
Check for poor connections or loose terminals at the EVAP canister vent shut valve and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM, then go to step 23. If the ECM/PCM was substituted, go to step 1.
NO -
Go to step 25.
25. Monitor the OBD STATUS for DTC P0498 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES -
If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM ECM/PCM Replacement (A/T). If any other Pending or Confirmed DTCs were indicated in step 24, go to the indicated DTC's troubleshooting.�
NO -
If the screen indicates FAILED, check for poor connections or loose terminals at the EVAP canister vent shut valve and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM, then go to step 23. If the ECM/PCM was substituted, go to step 1. If the screen indicates NOT COMPLETED, go to step 23.
