DTC Troubleshooting
DTC Troubleshooting: U0107, U0107
DTC U0107:
Lost Communication With Throttle Actuator Control Module
CAUTION
Do not insert your fingers into the installed throttle body when you turn the ignition switch to ON (II) or while the ignition switch is in ON (II). If you do, you will seriously injure your fingers if the throttle valve is activated.
NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information Initial Inspection and Diagnostic Overview.
1. Turn the ignition switch to ON (II).
2. Clear the DTC with the HDS.
3. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U0107 indicated?
YES -
Check for poor connections or loose terminals at the throttle body, the throttle actuator control module relay, the throttle actuator control module, and the ECM/PCM, then go to step 50. If the connections and the terminals are OK, go to step 6.
NO -
Go to step 4.
4. Start the engine.
5. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U0107 indicated?
YES -
Go to step 46.
NO -
Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the throttle body, the throttle actuator control module relay, the throttle actuator control module, and the ECM/PCM.�
6. Clear the DTC with the HDS.
7. Turn the ignition switch to LOCK (0).
8. Disconnect the intake air duct from the throttle body Removal and Replacement.
9. Press the accelerator pedal to the floor.
10. Turn the ignition switch to ON (II).
11. Check the throttle valve operation.
Does the valve open after it closes?
YES -
Go to step 12.
NO -
Go to step 13.
12. Check the throttle valve again.
Does the throttle valve open fully?
YES -
Go to step 40.
NO -
Go to step 34.
13. Turn the ignition switch to LOCK (0).
14. Disconnect the throttle actuator control module 16P connector.

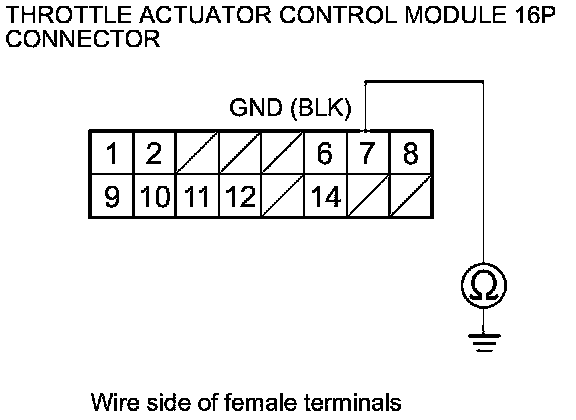

15. Check for continuity between throttle actuator control module 16P connector terminal No. 7 and body ground.
Is there continuity?
YES -
Go to step 16.
NO -
Repair open in the wire between the throttle body, the throttle actuator control module, and G101, then go to step 50.

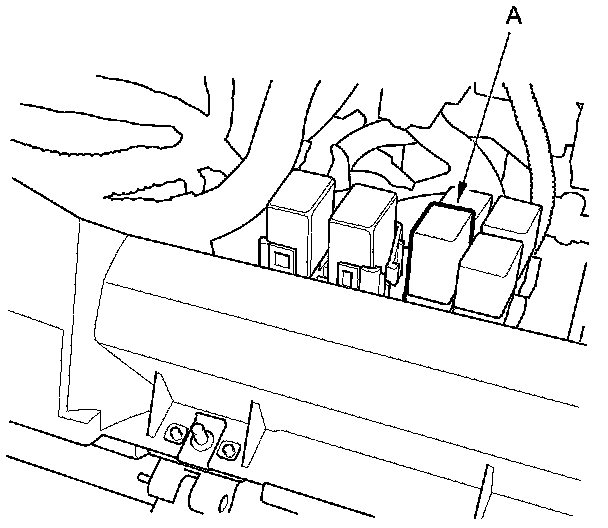

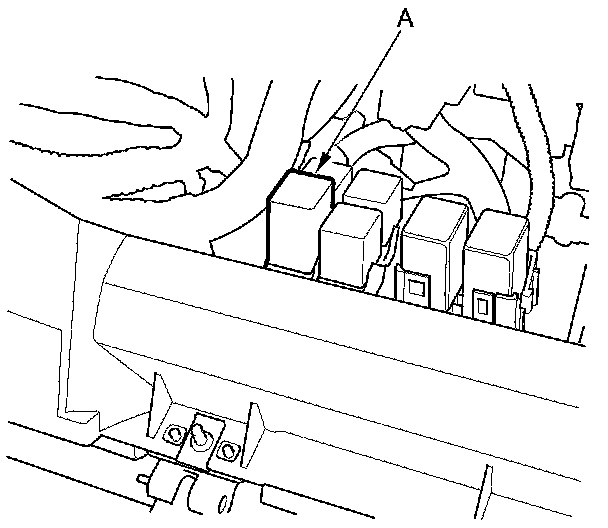

16. Remove the throttle actuator control module relay (A).
'07-08 models
'09-11 models

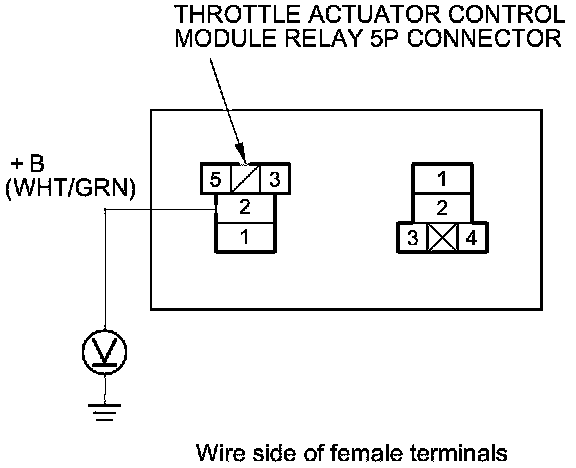

17. Measure the voltage between throttle actuator control module relay 5P connector terminal No. 2 and body ground.
Is there battery voltage?
YES -
Go to step 19.
NO -
Go to step 18.
18. Check the No. 8 DBW (ETCS) (15 A) fuse in the under-hood fuse/relay box.
Is the fuse OK?
YES -
Repair open in the wire between the throttle actuator control module relay (+B line) and the No. 8 DBW (15 A) (ETCS) fuse, then go to step 50.
NO -
Repair short in the wire between the throttle actuator control module relay (+B line) and the No. 8 DBW (15 A) (ETCS) fuse. Also replace the fuse, then go to step 50.
19. Install the throttle actuator control module relay.
20. Turn the ignition switch to ON (II).

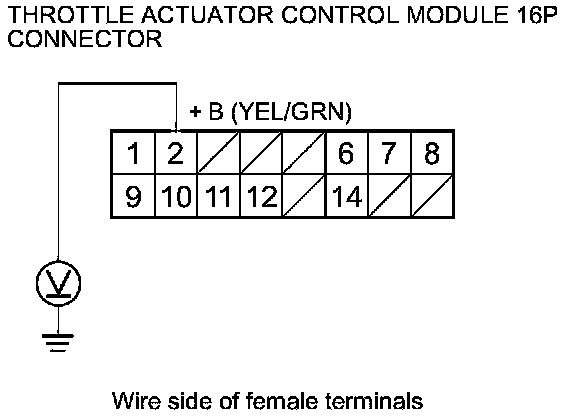

21. Measure the voltage between throttle actuator control module 16P connector terminal No. 2 and body ground.
Is there battery voltage for about 2 seconds?
YES -
Substitute a known-good throttle actuator control module Service and Repair, then go to step 50and recheck. If DTC U0107 is not indicated after substitution, replace the original throttle actuator control module Service and Repair, then go to step 50.
NO -
Go to step 22.
22. Turn the ignition switch to LOCK (0).
23. Remove the throttle actuator control module relay (A).
'07-08 models
'09-11 models
24. Check the throttle actuator control module relay Testing and Inspection.
Is the throttle actuator control module relay OK?
YES -
Go to step 25.
NO -
Replace the throttle actuator control module relay, then go to step 50.
25. Turn the ignition switch to ON (II).

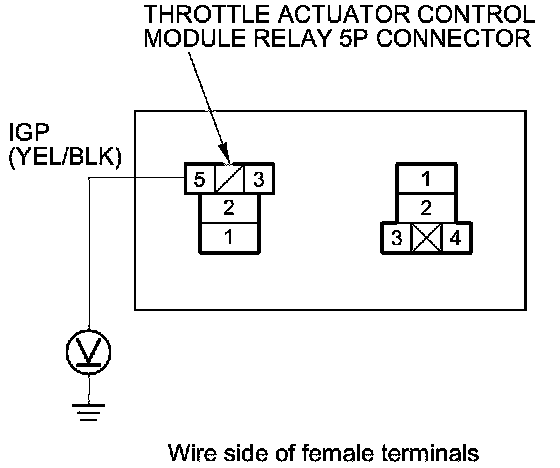

26. Measure the voltage between throttle actuator control module relay 5P connector terminal No. 5 and body ground.
Is there battery voltage?
YES -
Go to step 27.
NO -
Repair open in the wire between the throttle actuator control module relay and PGM-FI main relay 1 (FI MAIN), then go to step 50.
27. Turn the ignition switch to LOCK (0).
28. Jump the SCS line with the HDS.
29. Disconnect ECM/PCM connector D (17P).

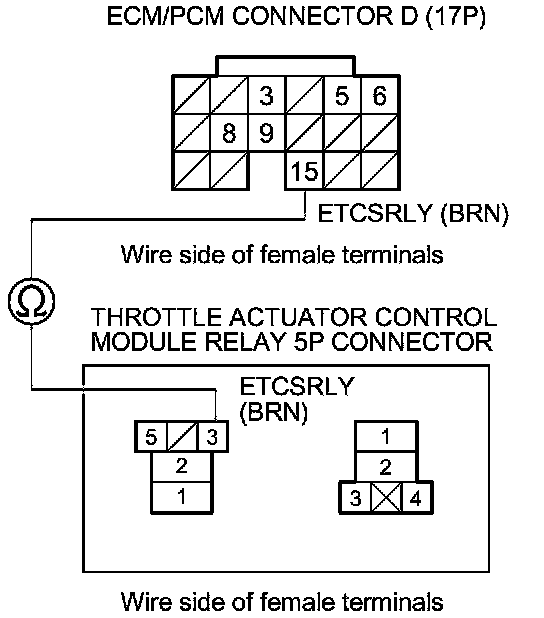

30. Check for continuity between ECM/PCM connector terminal D15 and throttle actuator control module relay 5P connector terminal No. 3.
Is there continuity?
YES -
Go to step 31.
NO -
Repair open in the wire between the ECM/PCM(D15) and the throttle actuator control module relay, then go to step 50.

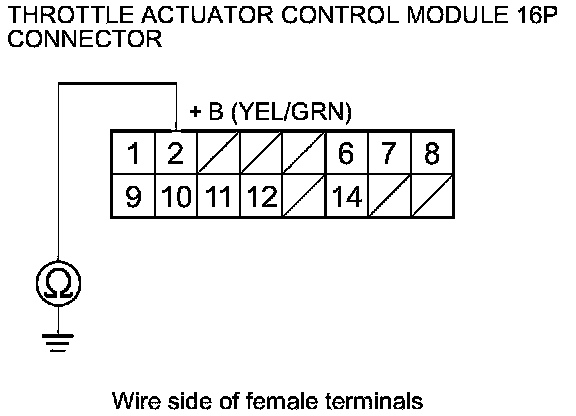

31. Check for continuity between throttle actuator control module 16P connector terminal No. 2 and body ground.
Is there continuity?
YES -
Repair short in the wire between the throttle actuator control module and the throttle actuator control module relay (+B line), then go to step 50.
NO -
Go to step 32.

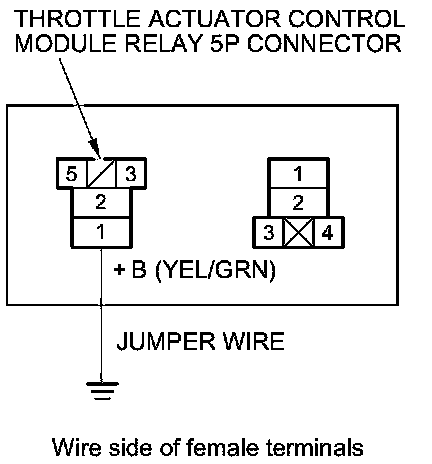

32. Connect throttle actuator control module relay 5P connector terminal No. 1 to body ground with a jumper wire.
33. Check for continuity between throttle actuator control module 16P connector terminal No. 2 and body ground.
Is there continuity?
YES -
Go to step 56.
NO -
Repair open in the wire between the throttle actuator control module and the throttle actuator control module relay (+B line), then go to step 50.
34. Turn the ignition switch to LOCK (0).
35. Jump the SCS line with the HDS.
36. Disconnect the throttle actuator control module 16P connector Service and Repair.
37. Disconnect ECM/PCM connector B (24P).

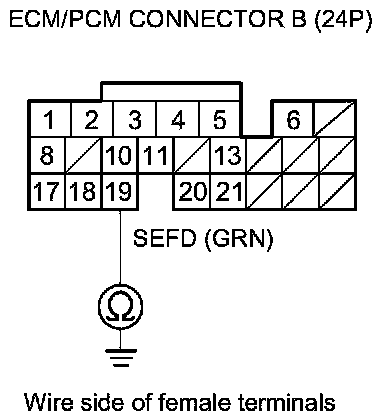

38. Check for continuity between ECM/PCM connector terminal B19 and body ground.
Is there continuity?
YES -
Repair short in the wire between the ECM/PCM(B19) and the throttle actuator control module, then go to step 50.
NO -
Go to step 39.

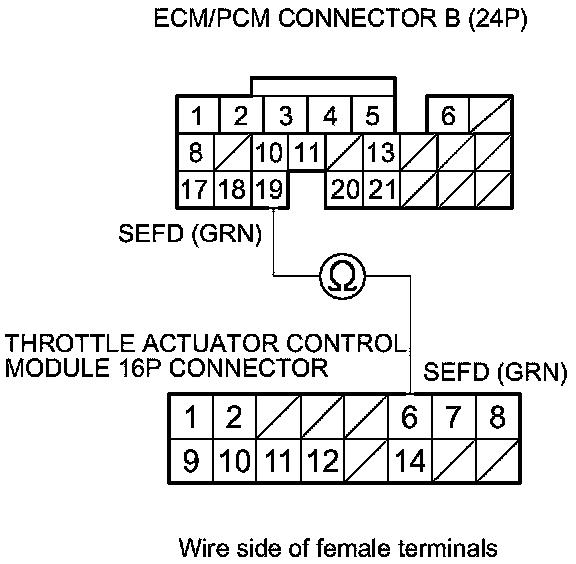

39. Check for continuity between ECM/PCM connector terminal B19 and throttle actuator control module 16P connector terminal No. 6.
Is there continuity?
YES -
Substitute a known-good throttle actuator control module Service and Repair, then go to step 50and recheck. If DTC U0107 is not indicated after substitution, replace the original throttle actuator control module Service and Repair, then go to step 50. If DTC U0107 is indicated, go to step 56.
NO -
Repair open in the wire between the ECM/PCM(B19) and the throttle actuator control module, then go to step 50.
40. Turn the ignition switch to LOCK (0).
41. Jump the SCS line with the HDS.
42. Disconnect the throttle actuator control module 16P connector.
43. Disconnect ECM/PCM connector B (24P).

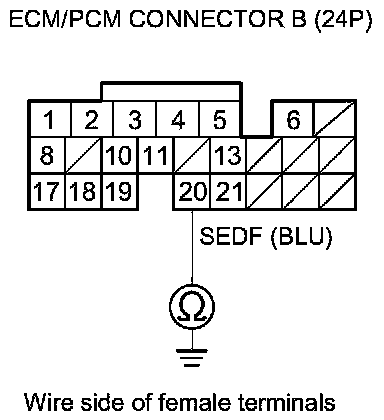

44. Check for continuity between ECM/PCM connector terminal B20 and body ground.
Is there continuity?
YES -
Repair short in the wire between the ECM/PCM(B20) and the throttle actuator control module, then go to step 50.
NO -
Go to step 45.

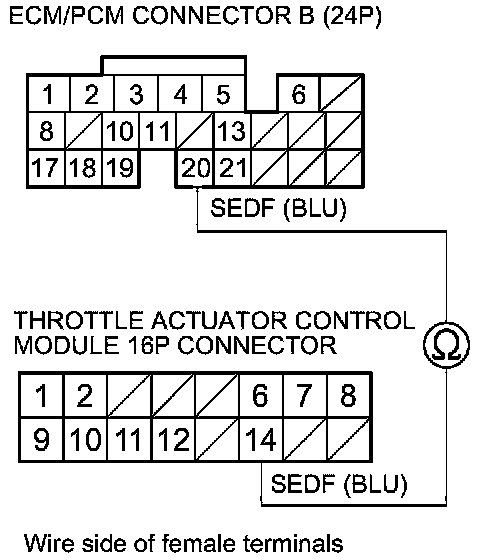

45. Check for continuity between ECM/PCM connector terminal B20 and throttle actuator control module 16P connector terminal No. 14.
Is there continuity?
YES -
Substitute a known-good throttle actuator control module Service and Repair, then go to step 50and recheck. If DTC U0107 is not indicated after substitution, replace the original throttle actuator control module Service and Repair, then go to step 50. If DTC U0107 is indicated, go to step 56.
NO -
Repair open in the wire between the ECM/PCM(B20) and the throttle actuator control module, then go to step 50.
46. Turn the ignition switch to LOCK (0).
47. Jump the SCS line with the HDS.
48. Disconnect ECM/PCM connector A (31P).

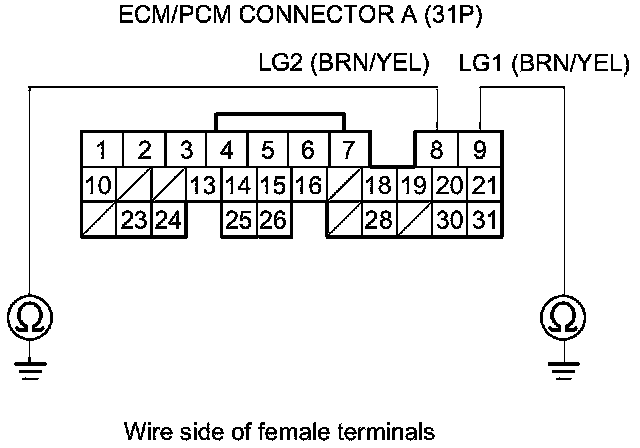

49. Check for continuity between body ground and ECM/PCM connector terminals A8 and A9 individually.
Is there continuity?
YES -
Check for poor connections or loose terminals at the throttle body, the throttle actuator control module relay, the throttle actuator control module, and the ECM/PCM, then go to step 1.
NO -
Repair open in the wire between the ECM/PCM(A8, A9) and G101, then go to step 50.
50. Turn the ignition switch to LOCK (0).
51. Reconnect all connectors.
52. Turn the ignition switch to ON (II).
53. Reset the ECM/PCM with the HDS.
54. Do the ECM/PCM idle learn procedure ECM/PCM Idle Learn Procedure.
55. Check for Pending or Confirmed DTCs with the HDS.
If DTC U0107 indicated?
YES -
Check for poor connections or loose terminals at the throttle body, the throttle actuator control module relay, the throttle actuator control module, and the ECM/PCM, then go to step 1.
NO -
Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.�
56. Reconnect all connectors.
57. Update the ECM/PCM if it does not have the latest software ECM/PCM Update, or substitute a known-good ECM/PCM.
58. Check for Pending or Confirmed DTCs with the HDS.
Is DTC U0107 indicated?
YES -
Check for poor connections or loose terminals at the throttle body, the throttle actuator control module relay, the throttle actuator control module, and the ECM/PCM. If the ECM/PCM was updated, substitute a known-good ECM/PCM, then recheck. If the ECM/PCM was substituted, go to step 1.
NO -
If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted, replace the original ECM/PCM ECM/PCM Replacement (A/T). If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.�
